Запчасти Case IH 454 (13-14) - PLATFORM, MOUNTING STEP AND TOOLBOX, MACHINES NOT FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE

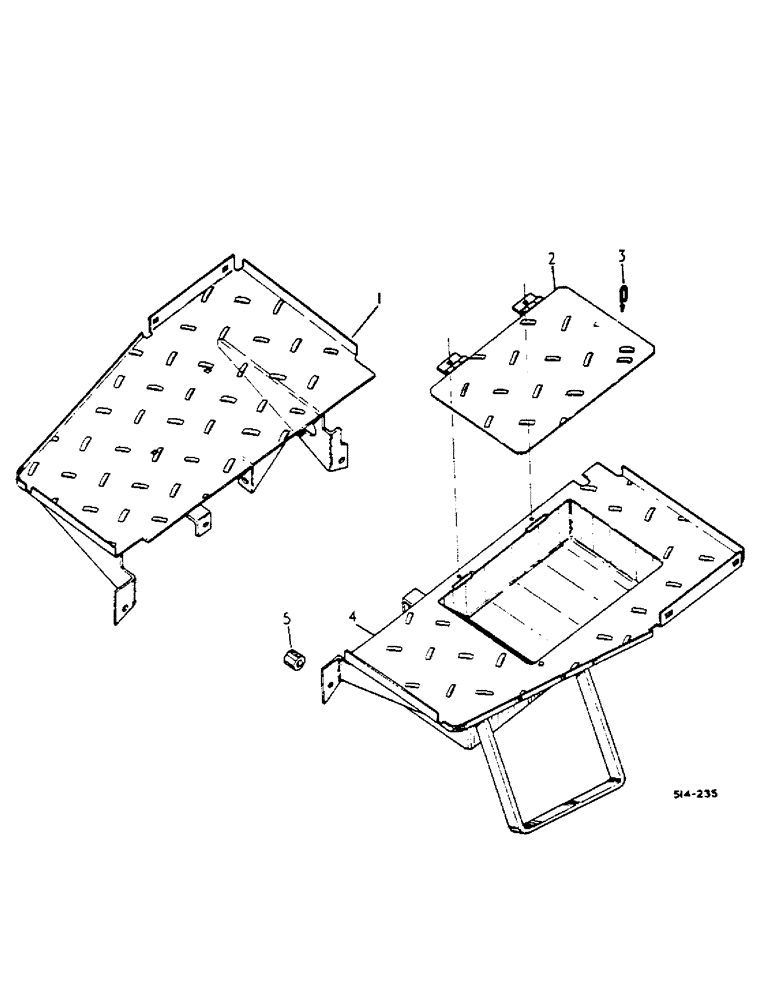

Схема запчастей Case IH 454 - (13-14) - PLATFORM, MOUNTING STEP AND TOOLBOX, MACHINES NOT FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE
1
4
3
5
2

Артикул

Название

Примечание

Количество

1

528523R2

STEP

PLATFORM ASSY, RH.

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 X 3/4 SHORT SQ NK CRG

2шт.

102635

NUT,3/8"-16, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

2шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

2

538421R1

COVER ASSY

TOOLBOX

1шт.

3

528917R1

RING

FINGER PULL

1шт.

4

528910R2

PLATFORM ASSY.

LH

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 X 3/4 SHORT SQ NK CRG

2шт.

102635

NUT,3/8"-16, G5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

2шт.

103321

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 X 5/8 C-Z SLT PAN HD MACH

2шт.

492-11025

LOCK WASHER,1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

5

528909R1

SPACER

LH PLATFORM

1шт.

532252R1

SPRING, TOOL BOX COVER, UP TO 454/007567, UP TO 2400/000687

1шт.

19282R1

BOLT

1/4-20 X 1/2 SQ NK CRG

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 X 3/4 X .051

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

Выбрано товаров: 28
