Запчасти Case IH 454 (13-13) - REAR FENDERS, FLAT TOP, UP TO 2400A/000500 (05) - SUPERSTRUCTURE

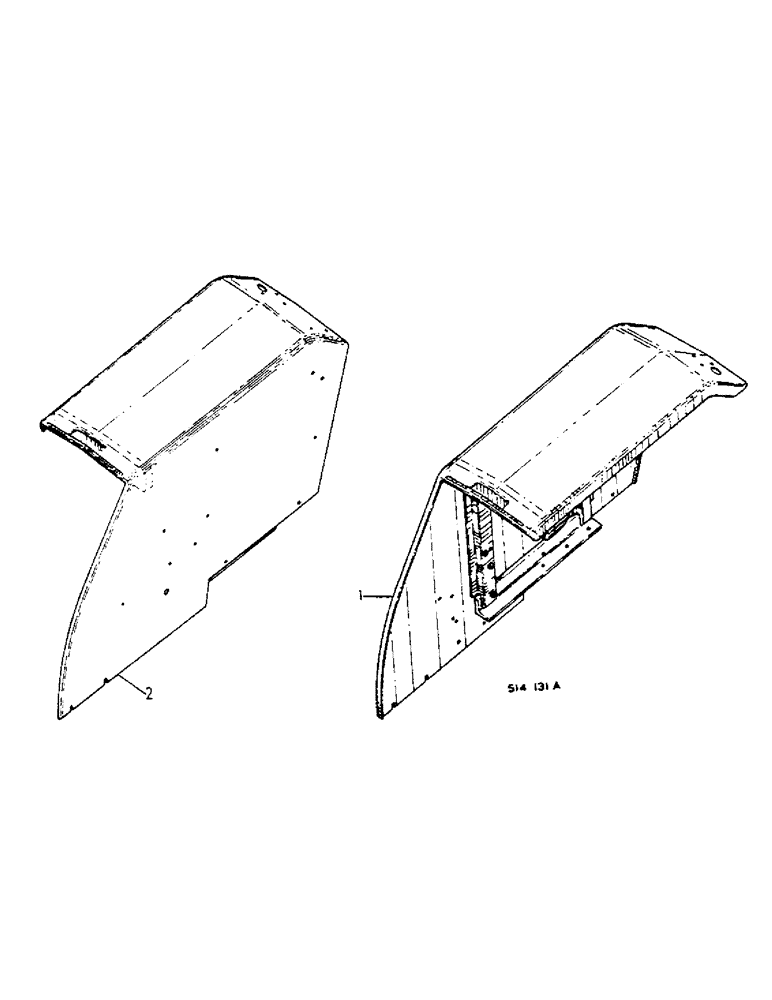

Схема запчастей Case IH 454 - (13-13) - REAR FENDERS, FLAT TOP, UP TO 2400A/000500 (05) - SUPERSTRUCTURE
1
2

Артикул

Название

Примечание

Количество

1

538643R4

FENDER

LH, W/PRODUCT GRAPHIC, W/SIDE AND TAIL LIGHT

1шт.

ON ORDERS FOR FENDER 538643R3, 531020R3 ORDER R4, FENDER W/LAMP 3116573R91 AND TWO SCREWS 145193.

1шт.

1

538642R2

FENDER LH, W/PRODUCT GRAPHIC, W/SIDE AND TAIL LIGHT, FOR USE W/DIRECTION INDICATOR, ORDER FENDER 538643R4

1шт.

2

531020R4

FENDER

ASSY, RH, W/SIDE AND TAIL LIGHT

1шт.

ON ORDERS FOR FENDER 538643R3, 531020R3 ORDER R4, FENDER W/LAMP 3116573R91 AND TWO SCREWS 145193.

1шт.

2

536492R2

FENDER ASSY, RH, W/SIDE AND TAIL LIGHT, FOR USE W/DIRECTION INDICATOR, ORDER FENDER 531020R4

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

6шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 X 1-1/2, TO REAR TOP COVER

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

To transmission shift control housing or draft control housing

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 HEX HD CAP

4шт.

116121

LOCK WASHER,1/2"

To axle carrier

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

To parking brake bracket

3шт.

534425R1

PLATE

FENDER MOUNTING LOWER, UP TO 454/000564, UP TO 2400A/000500

4шт.

Выбрано товаров: 17
