Запчасти Case IH 454 (02-2) - FRONT WHEEL WEIGHT Accessories & Attachments / Miscellaneous

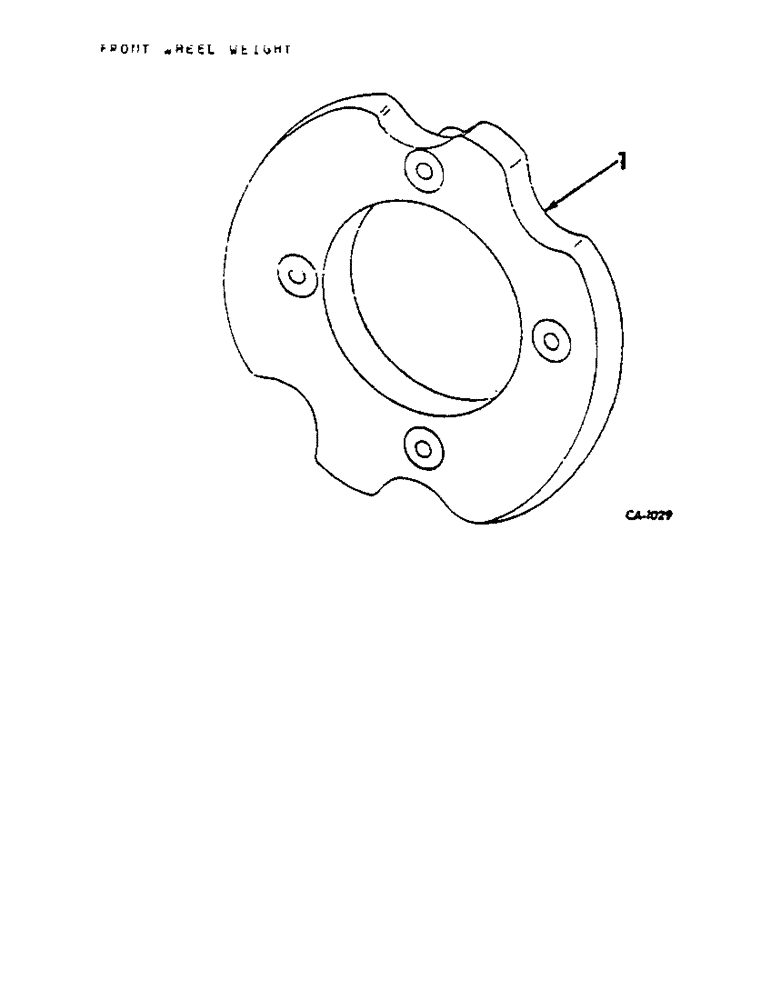

Схема запчастей Case IH 454 - (02-2) - FRONT WHEEL WEIGHT Accessories & Attachments / Miscellaneous
1

Артикул

Название

Примечание

Количество

1

3040050R1

WEIGHT

FRONT WHEEL, APPROX 44 LBS, FOR FIRST SET

2шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

SCREW, 1/2-13 X 2-3/4 HEX-HD CAP

8шт.

103323

LOCK WASHER,1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

1

3404050R1

SUPPORT

WEIGHT, FRONT WHEEL, APPROX 44 LBS, FOR SECOND SET (INCLUDES 1ST SET)

4шт.

17733R1

SCREW, 1/2-13 X 4-5/8 HEX-HD CAP

8шт.

103323

LOCK WASHER,1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

Выбрано товаров: 8
