Запчасти Case IH 454 (13-09) - REAR PANELS, MACHINES FITTED W/ISO MOUNTED CAB OR SAFETY FRAME (05) - SUPERSTRUCTURE

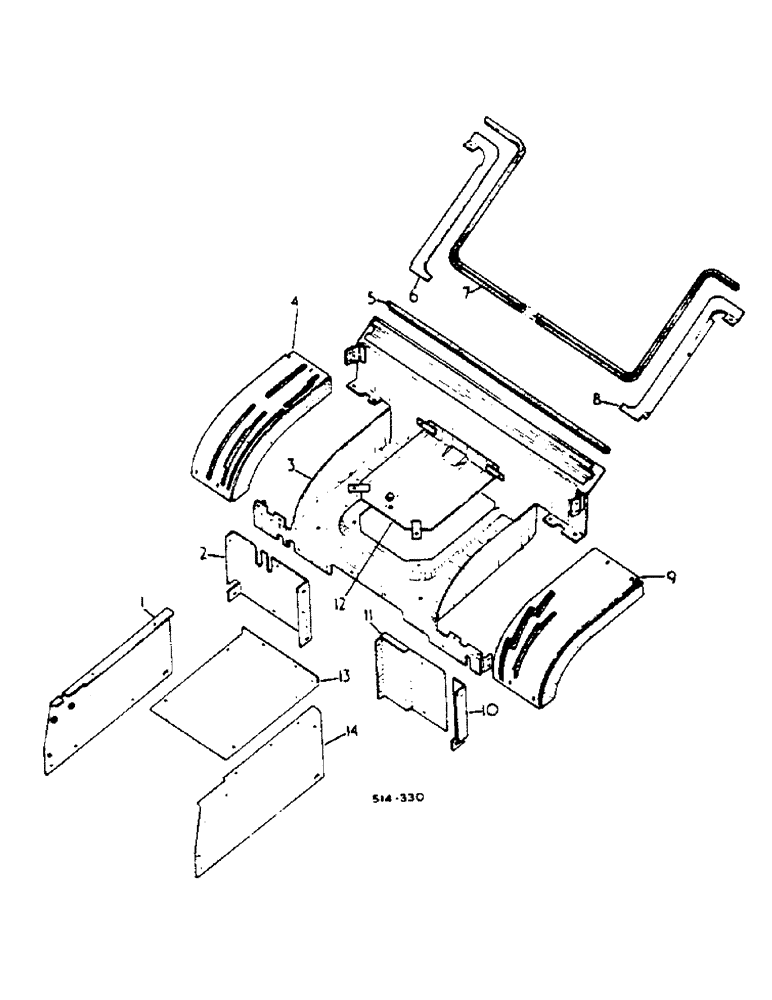

Схема запчастей Case IH 454 - (13-09) - REAR PANELS, MACHINES FITTED W/ISO MOUNTED CAB OR SAFETY FRAME (05) - SUPERSTRUCTURE
14
1
8
13
6
10
4
9
2
5
3
11
12
7

Артикул

Название

Примечание

Количество

1

3116178R1

PLATE

ASSY, TRANS SIDE R.H.

1шт.

3112992R1

NUT

INSERT

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

281 X .625 X .051

3шт.

103319

LOCK WASHER,1/4"

Side plates to steering support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

4шт.

103319

LOCK WASHER,1/4"

Side plate to platform

4шт.

2

3116171R1

CHANNEL

REAR R.H

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

4шт.

103319

LOCK WASHER,1/4"

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X 625 X .051, REAR CHANNEL TO SEAT PLATFORM, REAR CHANNEL TO TRANS SIDE PLATE, REAR CHANNEL TO PLATFORM

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

Rear channel to fender

1шт.

3

3116157R1

PLATFORM

SEAT CPTE.

1шт.

3112951R1

NUT

INSERT

4шт.

3118843R1

NUT

INSERT

16шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

1шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

8шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

8шт.

4

3116173R1

HOUSING

HITCH CONTROL

1шт.

3116807R1

INSULATOR

HOUSING

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

4шт.

103319

LOCK WASHER,1/4"

4шт.

5

3118678R1

SEAL

UPPER, BULK LENGTH 150 FT

1шт.

6

3118650R1

SUPPORT

SEAL R.H.

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 HEX

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

7

3118678R1

SEAL

LOWER, BULK LENGTH 150 FT

1шт.

8

3118649R1

SUPPORT

SEAL L.H.

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

.281 X .625 X .051

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

9

3116165R1

HOUSING

TRANS SHIFT, SYNCHROMESH DRIVE TRACTORS

1шт.

9

3116924R1

HOUSING

TRANS SHIFT, FORWARD AND REVERSE

1шт.

3116803R1

INSULATOR

HOUSING

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

4шт.

103319

LOCK WASHER,1/4"

4шт.

10

3118810R1

SPRING

CHANNEL, REAR VERTICAL OUTER L.H.

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

1шт.

103319

LOCK WASHER,1/4"

Rear channel to platform

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

Rear channel to fenders

1шт.

11

3116808R1

CHANNEL

VERTICAL INNER L.H., SYNCHROMESH DRIVE TRACTORS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

4шт.

103319

LOCK WASHER,1/4"

Rear channel to seat platform, Rear channel to trans side plate, Rear channel to platforms

4шт.

12

3116161R1

PLATE

SPARE PART CPTE, HOUSING COVER

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

4шт.

103319

LOCK WASHER,1/4"

4шт.

538239R1

PLUG

GROMMET, COVER PLATE

1шт.

13

3116183R1

PLATE

TRANS COVER

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

4шт.

103319

LOCK WASHER,1/4"

Cover plate to side plates

4шт.

179795

TILLAGE BLADE

1/4-20 X 3/4 HEX HD CAP

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

2шт.

103319

LOCK WASHER,1/4"

Cover plate to seat platform

2шт.

14

3116174R1

PLATE

ASSY, TRANS SIDE L.H.

1шт.

3112992R1

NUT

INSERT

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

3шт.

103319

LOCK WASHER,1/4"

Side plates to steering support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 X .625 X .051

4шт.

103319

LOCK WASHER,1/4"

Side plates to platform

4шт.
