Запчасти Case IH 454 (13-07) - REAR PANELS, MACHINES NOT FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE

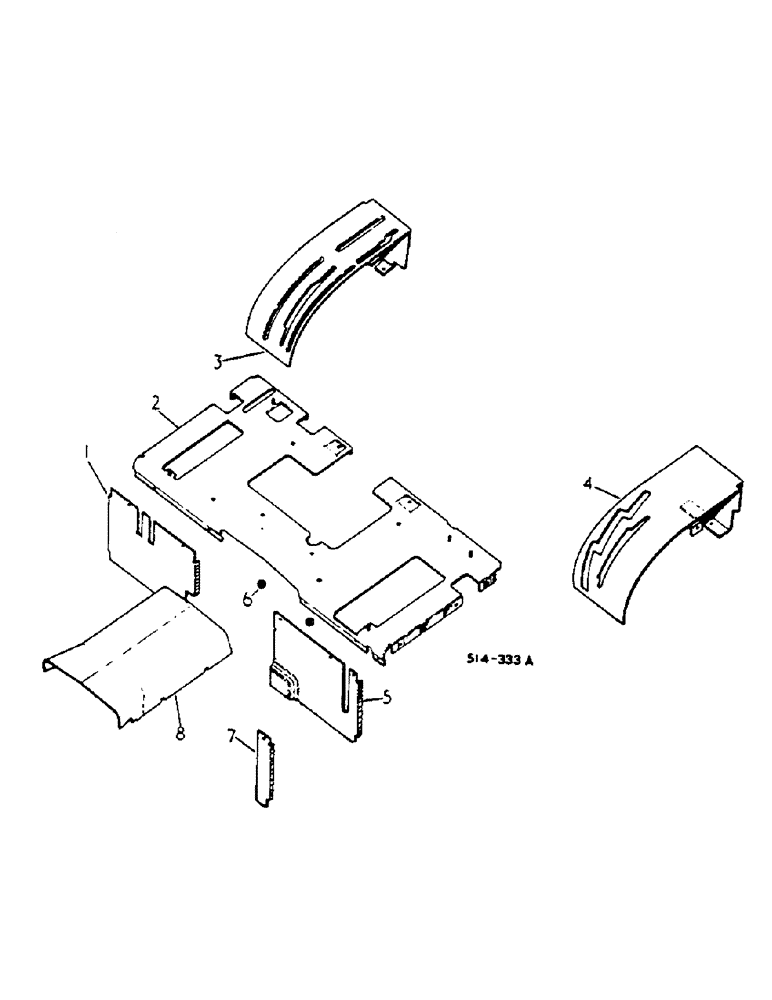

Схема запчастей Case IH 454 - (13-07) - REAR PANELS, MACHINES NOT FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE
1
6
4
7
5
8
3
2

Артикул

Название

Примечание

Количество

1

527858R3

CHANNEL

ASSY, REAR VERTICAL R.H.

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 X 1/2 C-Z HEX HD TAP

2шт.

2

528640R3

COVER

ASSY, REAR TOP

1шт.

120368

NUT,5/16"-24, G5

5шт.

80681

LOCK WASHER,5/16"

5шт.

3

529457R31

COVER

ASSY, HITCH CONTROL LEVER

1шт.

4

529384R21

HOUSING ASSY.

TRANS SHIFT, SYNCHROMESH DRIVE TRACTORS

1шт.

4

529385R21

HOUSING ASSY.

HYDROSTATIC DRIVE TRACTORS

1шт.

4

534258R2

HOUSING ASSY.

TRANS SHIFT, FORWARD AND REVERSE

1шт.

5

528638R1

CHANNEL

ASSY, REAR VERTICAL L.H.

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 X 5/8

3шт.

5

539464R1

CHANNEL ASSY, REAR VERTICAL L.H., FOOT SPEED CONTROL

1шт.

5

528473R1

PLATE

SECTION ASSY, REAR VERTICAL INNER L.H., DRUM BRAKES

1шт.

6

401941R1

SPACER

MOUNTING SHORT

2шт.

7

528475R1

SPARE PART ASSY, REAR VERTICAL OUTER L.H., DRUM BRAKES

1шт.

8

66290C1

COVER

ASSY, CLUTCH HOUSING

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

1/4-20 X 3/8 C-Z SLT PAN HD MACH

4шт.

3112681R1

ANGLE, FENDER L.H. REINFORCING, MACHINES W/DRUM BRAKES

1шт.

Выбрано товаров: 18
