Запчасти Case IH 454 (13-02) - HOOD AND FRONT PANELS, MACHINES NOT FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE

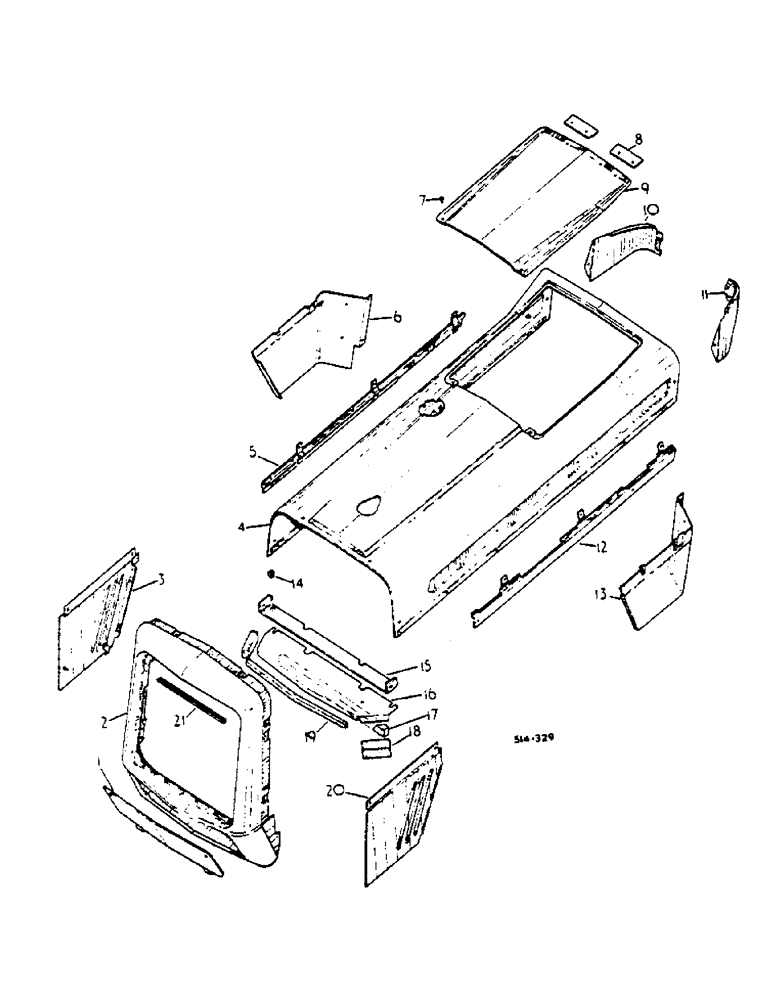

Схема запчастей Case IH 454 - (13-02) - HOOD AND FRONT PANELS, MACHINES NOT FITTED W/ISO MOUNTED CAB (05) - SUPERSTRUCTURE
21
8
12
11
19
6
4
15
16
7
5
9
14
3
2
13
10
20
17
18

Артикул

Название

Примечание

Количество

1

402406R1

PANEL

ASSY, GRILLE LOWER FRONT

1шт.

157728

SCREW

1/4-20 X 5/8 C-Z CR REC TRUSS HD MACH

2шт.

2

537179R2

HOUSING

RADIATOR GRILLE

1шт.

103321

LOCK WASHER,3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

3

3116776R1

PANEL

ASSY, GRILLE SIDE R.H.

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

120392

WASHER,1/4", SAE

9/32 X 5/8 X .051

1шт.

4

3113081R2

SPARE PART ASSY, TRACTOR W/UNDERSLUNG EXHAUST

1шт.

4

3113082R2

HOOD

ASSY, TRACTOR W/VERTICAL EXHAUST

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.

120217

LOCK WASHER,#10

6шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 X 9/16 X 16 GA

6шт.

118624R1

SCREW, 5/16-18 C-Z HEX WASHER HD

1шт.

3118624R1

SCREW

5/16"-18 C-Z Hex Washer Hd

1шт.

534308R1

SHIELD

SHEET, ASBESTOS

1шт.

534458R1

NUT

HEX 10-24 LOCK

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 X 9/16 X 16 GA

2шт.

5

3113080R1

PANEL

ASSY, LOWER HOOD R.H.

1шт.

157728

SCREW

1/4-20 5/8 C-Z CR REC TRUSS HD MACH

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

6

538361R2

PANEL

LOWER SIDE REAR R.H.

1шт.

369915R1

CLEVIS COUPLING

SCREW, 1/4-20 X 5/8 HEX WASHER HD CAP

3шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

2шт.

376787R1

WASHER

X

2шт.

8

406698R1

STRIP

REAR HOOD COVER RETAINER

2шт.

147791

SCREW,Cross Rec Fil Hd, #10 - 24 x 5/8"

10-24 X 5/8 CR REG F HD MACH

4шт.

106497

LOCK WASHER,#10

4шт.

110633

NUT,#10-24

Used w/glass fiber cover

4шт.

9

401933R11

COVER

ASSY, REAR HOOD GLASS FIBER

1шт.

9

3113425R1

COVER

ASSY, REAR HOOD SHEET METAL, OPTIONAL

1шт.

3121163R1

SEAL

BULK LENGTH 25 FT

1шт.

10

402424R1

PANEL

R.H.

1шт.

11

402423R1

PANEL

L.H.

1шт.

12

3113079R1

PANEL

ASSY, LOWER HOOD L.H.

1шт.

157728

SCREW

1/4-20 X 5/8 C-Z CR REC TRUSS HD MACH

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

13

538360R2

PANEL

LOWER SIDE REAR L.H.

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX WASHER HD CAP

3шт.

14

NOT APPLICABLE

1шт.

15

406696R1

BRACKET

GRILLE HOUSING ANGLE L.H.

1шт.

15

406697R1

BRACKET

GRILLE HOUSING ANGLE R.H.

1шт.

180144

RETAINER

7/16-14 X 7/8 C-Z HEX HD CAP

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

2шт.

172439

SPACER

1/4-28 X 1/2 C-Z SLT HEX HD TAP

4шт.

16

402457R1

BAFFLE

RADIATOR LOWER

1шт.

17

394788R1

GASKET

GASKET, RADIATOR BAFFLE

1шт.

18

389838R1

FOAM

GASKET, RADIATOR BAFFLE LOWER

2шт.

19

370181R1

GASKET

RADIATOR BAFFLE

1шт.

20

3116775R1

PANEL

ASSY, GRILLE SIDE L.H.

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

120392

WASHER,1/4", SAE

9/32 X 5/8 X .05- C-Z

1шт.

21

NOT APPLICABLE

1шт.

Выбрано товаров: 57
