Запчасти Case IH 454 (07-93) - DECELERATOR VALVE, TWO POSITION (04) - Drive Train

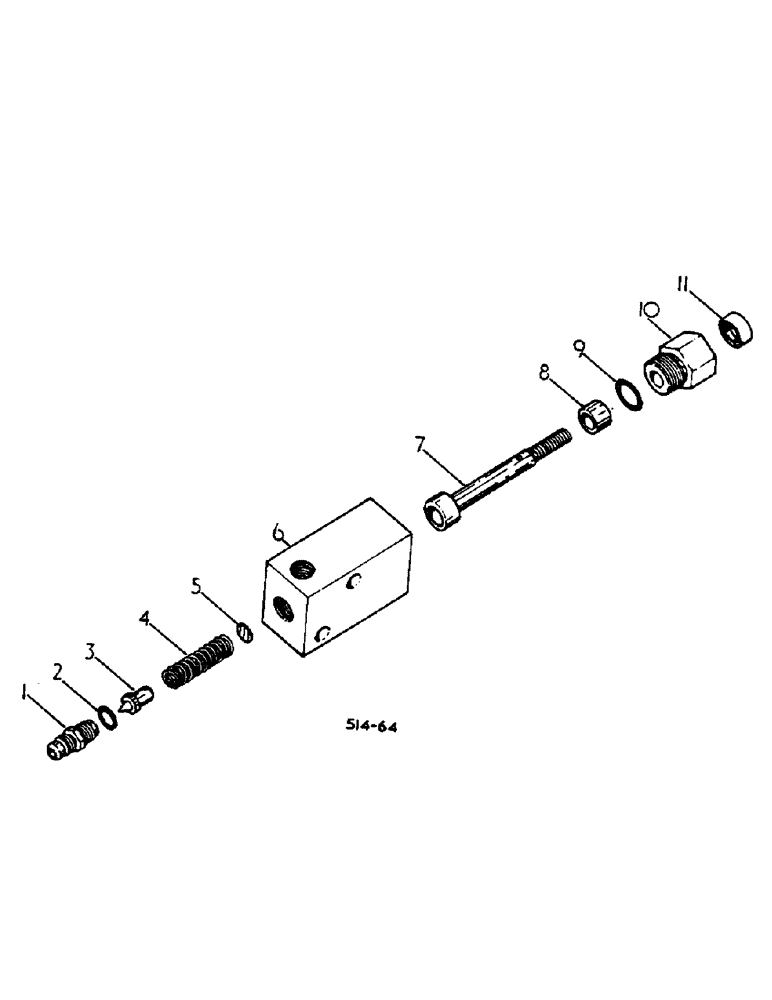

Схема запчастей Case IH 454 - (07-93) - DECELERATOR VALVE, TWO POSITION (04) - Drive Train
8
9
5
4
2
3
11
6
1
10
7

Артикул

Название

Примечание

Количество

404211R91

VALVE

ASSY DECELERATOR

1шт.

1

398709R1

SEAT

POPPET VALVE

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.

3

398710R1

VALVE POPPET

1шт.

4

398731R1

SPRING

VALVE

1шт.

5

401293R91

PACKAGE

SERVICE, RELIEF VALVE SHIM

7шт.

6

BODY, VALVE, ORDER VALVE 404211R91

1шт.

7

398708R1

STOP

VALVE

1шт.

8

404212R1

SLEEVE

VALVE STOP

1шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

1шт.

10

398707R1

GUIDE

VALVE SPRING STOP

1шт.

11

530101R1

SEAL, OIL, OPTIONAL TO 398701R1

1шт.

11

398701R1

SEAL

OIL, OPTIONAL TO 530101R1

1шт.

Выбрано товаров: 13
