Запчасти Case IH 454 (02-2[A]) - REAR WHEEL WEIGHT Accessories & Attachments / Miscellaneous

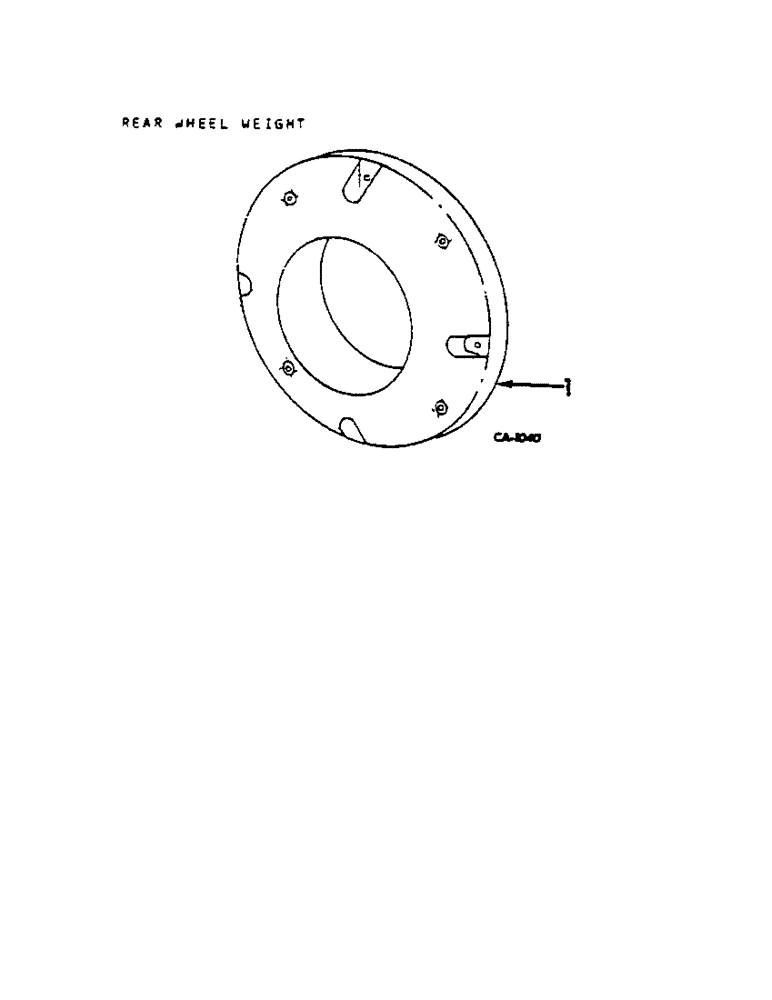

Схема запчастей Case IH 454 - (02-2[A]) - REAR WHEEL WEIGHT Accessories & Attachments / Miscellaneous
1

Артикул

Название

Примечание

Количество

1

406857R1

WEIGHT

REAR WHEEL, APPROX 125 LBS, FOR FIRST SET

2шт.

181153

SCREW, 7/16-14 X 3-3/4 PHC HEX-HD CAP

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

406865R1

NUT

REAR WHEEL WEIGHT

8шт.

1

406857R1

WEIGHT

REAR WHEEL, APPROX 125 LBS

1шт.

Выбрано товаров: 5
