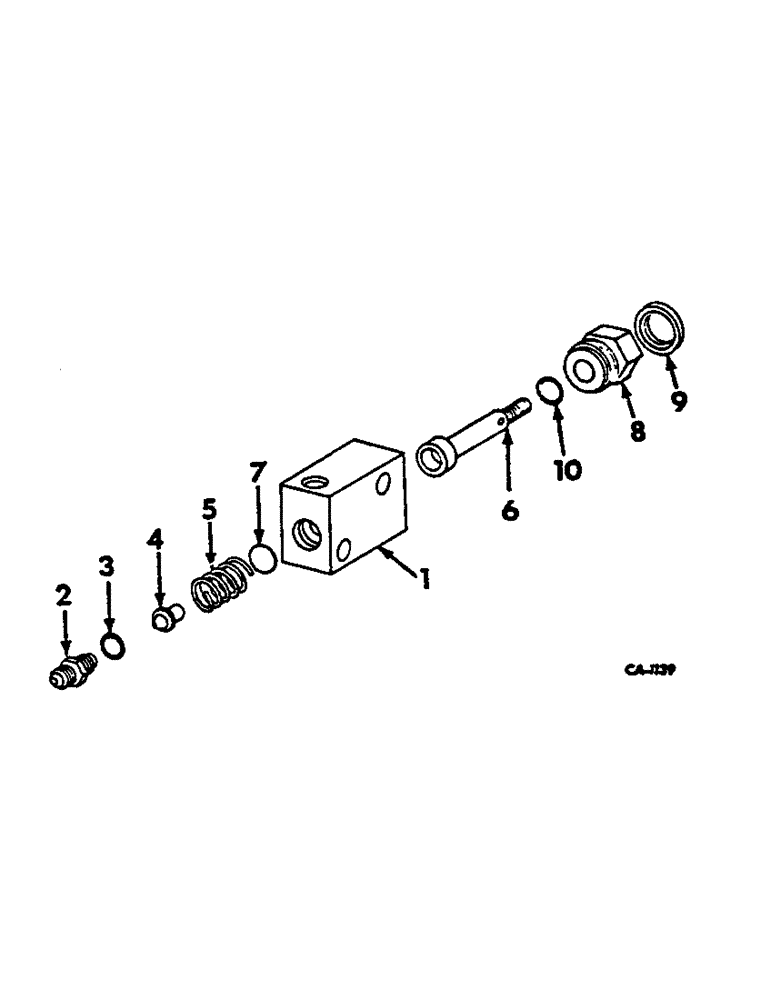

Запчасти Case IH 454 (07-88) - FOOT-N-INCH VALVE (04) - Drive Train

398705R91

VALVE

ASSY, FOOT-N-INCH

1шт.

1

BODY, VALVE, ORDER VALVE 398705R91

1шт.

2

398709R1

SEAT

POPPET VALVE

1шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.

4

398710R1

VALVE POPPET

1шт.

5

398731R1

SPRING

VALVE

1шт.

6

398708R1

STOP

VALVE

1шт.

7

401293R91

PACKAGE

RELIEF VALVE SHIM SERVICE, CONSISTS OF ONE EACH OF SHIM .042", SHIM .020", SHIM .007" AND SHIM .005"

1шт.

8

398707R1

GUIDE

VALVE, VALVE SPRING STOP

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

OIL, OPTIONAL W/530101R91

1шт.

9

530101R91

OIL SEAL

OIL, OPTIONAL W/398701R91

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

1шт.
