Запчасти Case IH 454 (07-69) - GEAR SHIFT MECHANISM, SPEED TRANSMISSION, UP TO 8692 (04) - Drive Train

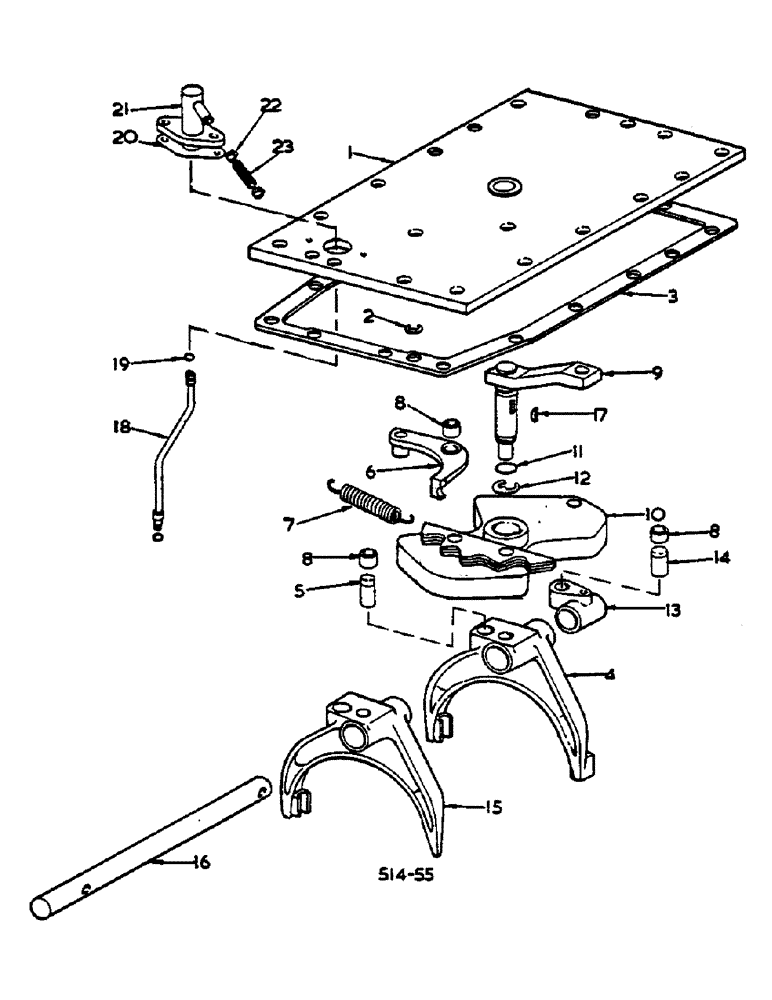

Схема запчастей Case IH 454 - (07-69) - GEAR SHIFT MECHANISM, SPEED TRANSMISSION, UP TO 8692 (04) - Drive Train
7
17
9
4
18
15
8
13
8
20
22
14
6
1
2
5
16
3
8
23
12
10
19
21
11

Артикул

Название

Примечание

Количество

1

402597R2

COVER

ASSY, CLUTCH HOUSING TOP

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

16шт.

11002VA

WASHER

17/32 X 7/8 X .065

1шт.

1

401618R11

COVER

ASSY, CLUTCH HOUSING TOP, TRACTORS W/TORQUE AMPLIFIER OR FORWARD AND REVERSE ATTACHMENT

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

9410359

PLUG

3/4-16 STD-THD O-RING BOSS

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

2

370290R1

SNAP RING,#50, .392" Dia, E-Type

shifter control arm pivot pin #50, .392" Dia, E-Type

1шт.

3

401019R3

GASKET

CLUTCH HOUSING TOP COVER

1шт.

3

401621R3

GASKET

CLUTCH HOUSING TOP COVER, TRACTORS W/TORQUE AMPLIFIER OR FORWARD AND REVERSE ATTACHMENT

1шт.

4

401697R91

YOKE

FORK ASSY, 3RD & 4TH SPEED SHIFT

1шт.

5

383438R1

DOWEL

1/2 X 1 DOWEL

1шт.

6

382565R21

ARM ASSY.

SHIFTER CONTROL

1шт.

7

383997R1

SPRING

SHIFTER CONTROL ARM

1шт.

8

380115R2

ROLLER

CAM

3шт.

9

404734R1

ARM ASSY.

CAM ACTUATING

1шт.

10

399454R92

CAM

ASSY, CLUTCH HOUSING SHIFT, 15 MPH TRANSMISSION

1шт.

10

399455R92

CAM

ASSY, CLUTCH HOUSING SHIFT, 20 MPH TRANSMISSION

1шт.

104186

RIVET

SPARE PART 5/16 X 1-3/8 CSK-HD SOLID

2шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32 CAM PIVOT SHAFT

1шт.

12

603570R1

SNAP RING,#75, .574" Dia, E-Type

cam pivot shaft #75, .574" Dia, E-Type

1шт.

13

401694R11

HUB ASSY.

SPARE PART 1ST & 2ND SPEED SHIFT

1шт.

14

383438R1

DOWEL

1/2 X 1 DOWEL

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

2шт.

15

401695R2

FORK

1ST & 2ND SPEED SHIFT

1шт.

16

401696R1

ROD

1ST & 2ND SPEED SHIFT

1шт.

17

106751

KEY

3/16 X 3/4 WOODRUFF, CAM PIVOT SHAFT

1шт.

18

534412R1

TUBE

ASSY, TRANSMISSION LUBE

1шт.

19

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 X 3/8 X 1/16

2шт.

20

534420R1

GASKET

PRESSURE LUBE BODY COVER

1шт.

21

534415R91

SPARE PART CPTE PRESSURE LUBE

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

1/4-28 X 5/8 HEX-HD CAP

2шт.

103319

LOCK WASHER,1/4"

2шт.

22

20894R1

NO LONGER SERVICED

CLAMP, 5/8 TYPE D SCREW TYPE HOSE

2шт.

22

3112550R1

CLAMP

SCREW TYPE HOSE, OPTIONAL

2шт.

23

537612R1

HOSE

1шт.

Выбрано товаров: 37
