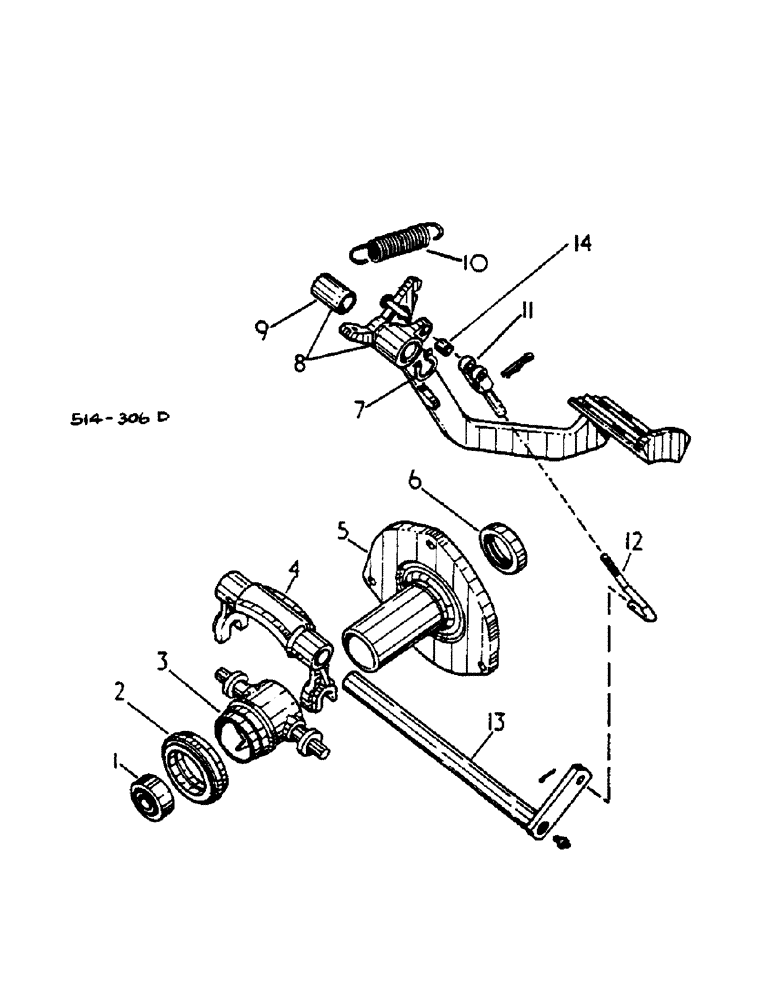

Запчасти Case IH 454 (07-67) - CLUTCH CONTROLS (04) - Drive Train

1

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

Clutch pilot

1шт.

1

538961R91

BEARING ASSY,19.995 mm ID x 46.995 mm OD x 13.94 mm

CLUTCH PILOT

1шт.

1

69844C91

BEARING, BALL,20mm ID x 47mm OD x 14mm W

CLUTCH PILOT, OPTIONAL

1шт.

2

59879D

BALL BEARING,60.33mm ID x 88.9mm OD x 18.67mm W

CLUTCH RELEASE BALL

1шт.

2

365866R91

THRUST BEARING

CLUTCH RELEASE BALL

1шт.

2

365865R91

BEARING ASSY,3.812" ID x 2.26" OD x 0.807"

CLUTCH RELEASE BALL

1шт.

2

528098R92

BALL BEARING,2.46" ID x 3.5" OD x 0.783"

CLUTCH RELEASE BALL, OPTIONAL, UP TO 454/100869 AND 101100 - 102188, UP TO 2400/100166 AND 100172 - 100232, ORDER SLEEVE 105445C1 WITH BEARING 158125C91

1шт.

2

158125C91

THRUST BEARING

CLUTCH RELEASE, 454/100870 - 101099 AND 102189 UP, 2400/100167 - 100171 AND 100233 UP

1шт.

3

360501R2

SLEEVE CYLINDER

CLUTCH RELEASE, UP TO 454/100869 AND 101100 - 102188, UP TO 2400/100166 AND 100172 - 100232, ORDER SLEEVE 105445C1 WITH BEARING 158125C91

1шт.

3

105445C1

BUSHING

SLEEVE, CLUTCH RELEASE, 454/100870 - 101099 AND 102189 UP, 2400/100167 - 100171 AND 100233 UP

1шт.

4

398342R1

FORK

CLUTCH RELEASE

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

5

398236R2

CARRIER

CLUTCH RELEASE SLEEVE, TRACTOR FITTED W/SINGLE SPEED IPTO, UP TO 454/104329, 2400/10338, ORDER SHAFT 71231C1, CARRIER 71229C1 AND SEAL 108982C1

1шт.

5

398236R2

CARRIER

CLUTCH RELEASE SLEEVE, TRACTORS FITTED W/DUAL SPEED IPTO, UP TO 454/102857, 2400/100276, ORDER SHAFT 71230C1, CARRIER 71229C1 AND SEAL 108982C1

1шт.

5

71229C1

SLIPPER

CARRIER, CLUTCH RELEASE SLEEVE, TRACTOR FITTED W/DUAL SPEED IPTO, 454/102858 UP, 2400/100277 UP, TRACTOR FITTED W/SINGLE SPEED IPTO, 454/104330 UP, 2400/10339 UP

1шт.

179842

SPACER

3/8 X 1-3/8 HEX HD PLAIN

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065)

3шт.

6

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

RELEASE SLEEVE, CARRIER OIL, UP TO 454/102857, UP TO 2400/100276

1шт.

6

108982C1

OIL SEAL

RELEASE SLEEVE CARRIER

1шт.

6

108735C1

OIL SEAL

RELEASE SLEEVE CARRIER OIL, OPTIONAL, 454/102858 UP, 2400/100277 UP

1шт.

7

454331R1

SNAP RING,#87, Ext

Clutch pedal

1шт.

8

1212845C91

PEDAL

ASSY, CLUTCH WITH BUSHING

1шт.

23183R1

WASHER

29/32 X 1-3/8 X .054 GA

1шт.

9

539246R1

BUSHING

1шт.

10

399743R1

SPRING

CLUTCH PEDAL RETURN

1шт.

138675

SCREW,Hex, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HEX-HD, DV-PT SET

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

11

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 X 2-1/2 LIGHT ADJ ROD END

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD END

1шт.

3114469R1

SPLIT PIN/SAFETY PIN

ROUND COT

1шт.

12

71086C1

ROD ASSY.

CLUTCH OPERATING

1шт.

107762

WASHER,3/32" x 5/8"

1шт.

13

398237R2

SHAFT HOUSING

ASSY, CLUTCH RELEASE

1шт.

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 DRIVE TYPE 45 DEG

2шт.

14

1212847C1

BUSHING

CLUTCH OPERATING ROD, 454/106391 UP, 2400/100386 UP

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

006735 up to 0100869, used w/clutch release sleeve

1шт.

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16-32 NEF STR, UP TO 006734, USED WITH CLUTCH RELEASE SLEEVE

1шт.

365720R1

PIPE

CLUTCH RELEASE SLEEVE GREASE, UP TO 006734

1шт.
