Запчасти Case IH 454 (07-65) - BELT PULLEY (04) - Drive Train

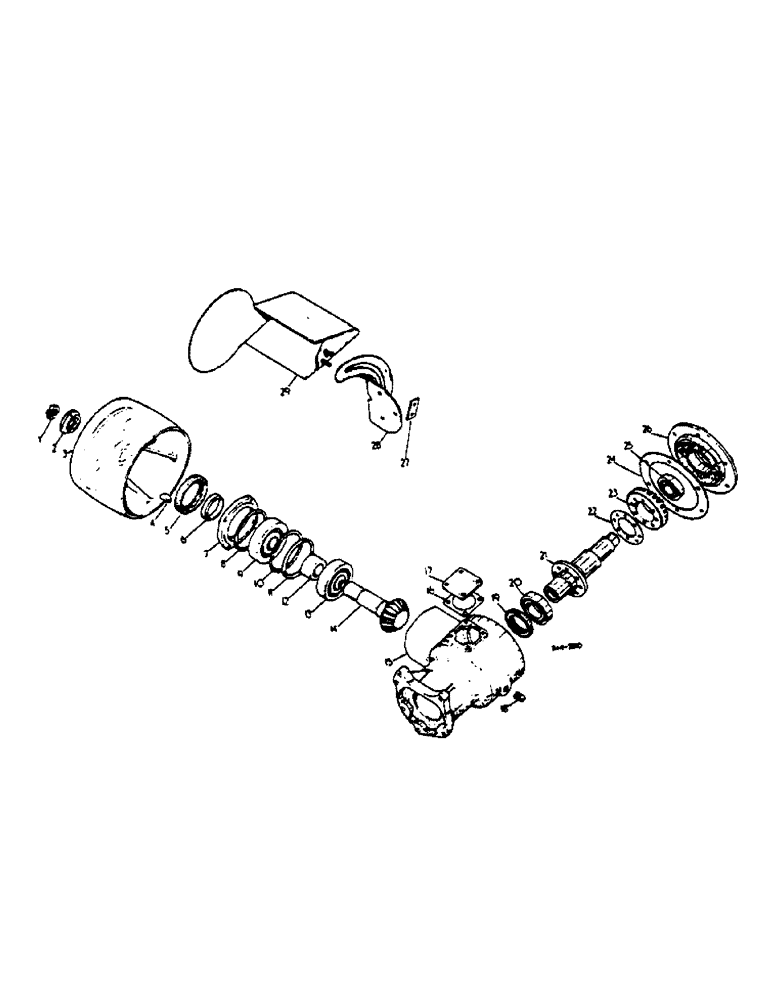

Схема запчастей Case IH 454 - (07-65) - BELT PULLEY (04) - Drive Train
8
9
20
5
16
4
13
22
14
21
15
19
3
12
17
27
10
1
7
11
6
23
24
29
26
28
2
25

Артикул

Название

Примечание

Количество

527829R91

SPARE PART ATTACHMENT, BELT PULLEY, WITH SAFETY SHIELD, TRACTORS W/DUAL SPEED I.P.T.O.

1шт.

1

704252R1

NUT

PINION SHAFT

1шт.

2

527834R1

WASHER

SPARE PART BELT PULLEY RETAINER

1шт.

3

527833R11

PULLEY ASSY.

SPARE PART BELT, WITH BUSHING

1шт.

4

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

704247R91

OIL SEAL

1шт.

5

704248R91

SEAL

OIL, OPTIONAL

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

4шт.

3321

HOLE PLUG BUTTON

WASHER, 3/8 MED LOCK

4шт.

6

704250R1

BUSHING

SPARE PART

1шт.

7

704246R21

RETAINER

ASSY, PINION SHAFT WITH OIL SEAL

1шт.

8

711872R1

GASKET

PINION SHAFT RETAINER

1шт.

9

133606H

BEARING, BALL

PINION OUTER

1шт.

9

704244R91

BEARING

PINION OUTER BALL

1шт.

9

704245R91

BEARING

PINION OUTER BALL

1шт.

9

3063609R91

BALL BEARING

PINION OUTER, OPTIONAL

1шт.

10

3073348R1

SHIM

BELT PULLEY

1шт.

11

706745R1

SPACER

BELT PULLEY SHAFT, .148"

1шт.

12

704243R1

SPACER

SPARE PART BELT PULLEY BEARING

1шт.

13

527832R91

BEARING

SPARE PART PINION INNER ROLLER

1шт.

14

3067916R1

SHAFT

GEAR, DRIVE BEVEL PINION AND SHAFT

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

1шт.

15

527830R1

HOUSING

BELT PULLEY

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

103321

LOCK WASHER,3/8"

6шт.

16

711882R1

GASKET

DRIVE HOUSING TOP COVER PLATE

1шт.

17

711881R1

PLATE

DRIVE HOUSING TOP COVER

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

3/8-16 X 11/16 HEX HD CAP

4шт.

103321

LOCK WASHER,3/8"

4шт.

18

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 AUTO. SQ-HD PIPE

1шт.

19

704229R91

OIL SEAL

DRIVE HOUSING

1шт.

19

704230R91

SEAL

DRIVE HOUSING OIL

1шт.

19

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

DRIVE HOUSING OIL, OPTIONAL

1шт.

20

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BELT PULLEY SHAFT INNER

1шт.

20

704234R91

BALL BEARING

BELT PULLEY SHAFT INNER

1шт.

20

3048701R91

BALL BEARING

BELT PULLEY SHAFT INNER, OPTIONAL

1шт.

21

530044R1

CLUTCH ASSEMBLY

SPARE PART BELT PULLEY P.T.O.

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8-24 X 3/4 HEX HD CAP

8шт.

115549

LOCK WASHER,Int Tooth, 3/8"

8шт.

22

3067911R1

SHIM

SPARE PART BEVEL GEAR

2шт.

103321

LOCK WASHER,3/8"

6шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

6шт.

23

3067910R1

GEAR

SPARE PART BELT PULLEY BEVEL

1шт.

24

3073828R1

SHIM

DRIVE HOUSING

1шт.

25

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BELT PULLEY SHAFT OUTER

1шт.

25

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BELT PULLEY SHAFT OUTER

1шт.

25

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BELT PULLEY SHAFT OUTER

1шт.

25

700545R91

BEARING

BELT PULLEY SHAFT OUTER BALL

1шт.

25

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BELT PULLEY SHAFT OUTER

1шт.

25

659473R91

BEARING, BALL

BELT PULLEY SHAFT OUTER, OPTIONAL

1шт.

26

3073827R1

COVER

DRIVE HOUSING

1шт.

27

3049001R1

PLATE

SPARE PART BACKING

1шт.

27

3067917R11

BRACKET

SPARE PART ASSY, REVERSE BELT PULLEY SAFETY SHIELD

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

28

3067919R91

GUARD ASSY.

SHIELD, REVERSE BELT PULLEY SAFETY

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

7/16-14 X 1-1/8 HEX HD CAP

1шт.

103322

LOCK WASHER,7/16"

2шт.

271500

SOCKET

7/16-14 HEX

2шт.

Выбрано товаров: 58
