Запчасти Case IH 454 (07-61) - SIDE DRIVE POWER TAKE OFF, 67128C91 (04) - Drive Train

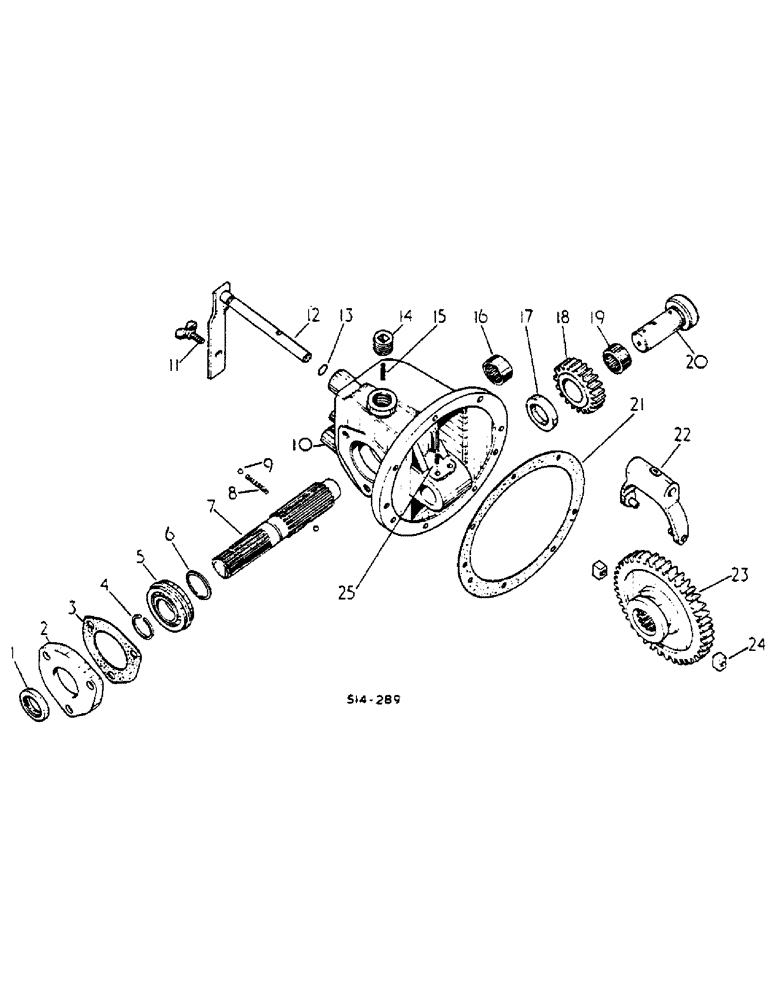

Схема запчастей Case IH 454 - (07-61) - SIDE DRIVE POWER TAKE OFF, 67128C91 (04) - Drive Train
18
16
12
21
14
24
8
3
2
10
17
25
7
6
5
13
11
4
19
23
1
9
20
22
15

Артикул

Название

Примечание

Количество

67128C91

HOUSING

ATTACHMENT, SIDE DRIVE P.T.O., FOR TRACTORS WITH SINGLE OR DUAL SPEED I.P.T.O., 454/008078 UP, 2400/000692 UP

1шт.

1

381480R91

OIL SEAL

OUTPUT SHAFT

1шт.

1

534917R91

OIL SEAL

OUTPUT SHAFT, OPTIONAL

1шт.

2

529327R1

FLANGED BEARING

OUTPUT SHAFT BEARING

1шт.

321316R1

SCREW

1/2-13 X 1-1/4 HEX HD CAP

3шт.

3

529328R1

GASKET

OUTPUT SHAFT BRG. RETAINER

1шт.

4

359141R1

RING, SNAP

RING SNAP OUTPUT SHAFT BRG. RET.

1шт.

5

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

OUTPUT SHAFT

1шт.

5

704770R91

BALL BEARING

OUTPUT SHAFT

1шт.

5

700497R91

BEARING, BALL

OUTPUT SHAFT, OPTIONAL

1шт.

6

573984R1

SNAP RING

SLIDING GEAR RETAINING

1шт.

7

67131C1

SHAFT

OUTPUT

1шт.

8

529329R1

SPRING

DRIVEN GEAR POPPET

1шт.

9

17009R1

BALL

9/32 CR-STL.

2шт.

9

16009R1

BALL

9/32 CR-STL., OPTIONAL

2шт.

10

529322R21

HOUSING ASSY.

SIDE DRIVE P.T.O.

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

11

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SELECTOR FORK SHAFT ARM ADJ.

1шт.

12

65772C1

SHAFT ASSY.

SELECTOR FORK WITH PRODUCT GRAPHIC

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 X 5/8 X 3/32

1шт.

14

409947

PLUG 3/4 X 14 AUTOM. SQ-SOC-HD PIPE

1шт.

15

19791R1

PIN,1/4" x 1 1/8", Coiled

1/4" x 1 1/8", Coiled

1шт.

16

529323R91

BEARING, NEEDLE

OUTPUT SHAFT

1шт.

17

67130C1

SPACER

IDLER GEAR

1шт.

18

529325R1

GEAR, IDLER

GEAR,IDLE SIDE DRIVE PTO, 21T

1шт.

19

287057R91

BEARING, NEEDLE

IDLER GEAR

1шт.

19

531437R91

NEEDLE BEARING

IDLER GEAR, OPTIONAL

1шт.

20

67129C1

SHAFT

SIDE DRIVE PTO IDLER GEAR

1шт.

21

528650R1

GASKET

SIDE DRIVE PTO HOUSING

1шт.

22

529331R1

FORK

ASSY, DRIVEN GEAR SELECTOR

1шт.

23

67132C1

GEAR

SIDE DRIVE PTO DRIVEN, 44T

1шт.

24

67133C1

BLOCK

SPARE PART SELECTOR FORK

2шт.

25

618573R1

PIN,1/4" x 2 1/4", Coiled

1/4" x 2 1/4", Coiled

1шт.

Выбрано товаров: 33
