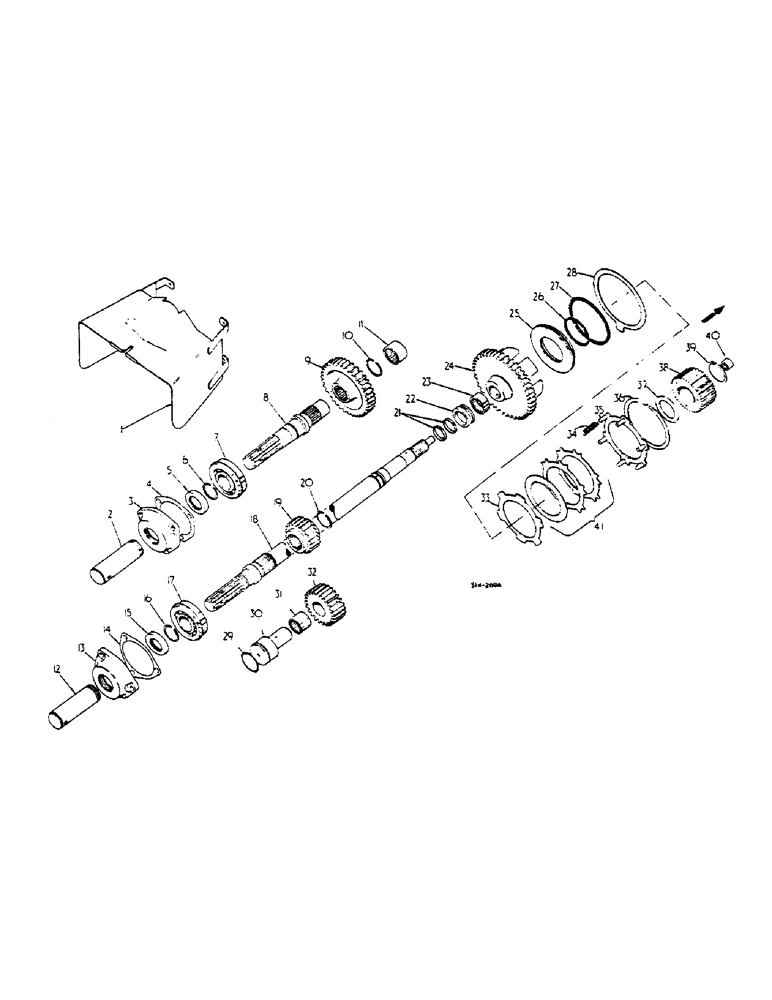

Запчасти Case IH 454 (07-58) - INDEPENDENT POWER TAKE OFF, DUAL SPEED, UP TO 454/008077, UP TO 2400/000691 (04) - Drive Train

1

401731R1

SHIELD

ASSY, IPTO SAFETY

1шт.

1

528478R1

SPARE PART ASSY, IPTO SAFETY, TRACTORS WITH HAND OPERATED DRUM BRAKE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

3

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE IPTO SHAFT BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

555570R1

SNAP RING

BRG RETAINER

1шт.

7

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

7

533615R1

BEARING

SHAFT BALL

1шт.

7

538962R1

BEARING SHAFT BALL

1шт.

8

404236R1

SHAFT

UPPER OUTPUT

1шт.

9

404237R1

PINION

GEAR, 623 RPM DRIVEN, 36T, 1000 AND 614 RPM

1шт.

9

404235R1

GEAR

555 RPM DRIVEN, 38T, 1000 AND 540 RPM

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

555 OR 614 RPM SHAFT NEEDLE

1шт.

11

528103R91

BEARING, NEEDLE

555 OR 614 RPM SHAFT, OPTIONAL

1шт.

12

406808R1

TUBE

ASSY IPTO SHAFT PROTECTION

1шт.

13

401725R1

NO LONGER SERVICED

FLANGE/Retired FLANGE IPTO SHAFT BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

14

399843R2

GASKET

SHAFT BRG RETAINER

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

16

555570R1

SNAP RING

BRG RETAINER

1шт.

17

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

17

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

17

533615R1

BEARING

SHAFT BALL

1шт.

17

538962R1

BEARING SHAFT BALL, OPTIONAL

1шт.

18

404208R1

SHAFT

ASSY, 1000 RPM OUTPUT

1шт.

19

404233R1

PINION

GEAR, LOWER SHAFT DRIVE, 22T,1000 AND 614 RPM

1шт.

19

404232R1

GEAR

LOWER SHAFT DRIVE, 21T, 1000 AND 540 RPM

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

21

166972R1

RING

SHAFT SEALING

2шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

23

402347R91

NEEDLE BEARING

1004 RPM SHAFT

1шт.

23

528104R91

NEEDLE BEARING

1004 RPM SHAFT, OPTIONAL

1шт.

24

404230R1

GEAR

CLUTCH CUP, 44T, WITH PROVISION FOR SIDE PTO

1шт.

24

406599R1

GEAR

CLUTCH CUP, WITHOUT PROVISION FOR SIDE PTO

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

25

401722R1

PISTON

CLUTCH

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL, INNER

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL, OUTER

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

30

401726R1

SHAFT

IPTO IDLER

1шт.

31

570450R1

BEARING

IDLER SHAFT NEEDLE

1шт.

31

528105R91

BEARING, NEEDLE

IDLER SHAFT

1шт.

32

401727R1

PINION

GEAR, IDLER, 24T

1шт.

33

401718R1

PLATE

PISTON RETURN

1шт.

34

401715R1

SPRING

PISTON RETURN

4шт.

35

401714R11

PLATE

ASSY, CLUTCH BACKING

1шт.

20154R1

DOWEL,5/16" x 7/8"

PIN, 5/16 X 7/8

4шт.

36

401720R1

CIRCLIP

BACKING PLATE

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

401710R1

HUB

ASSY, CLUTCH

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

40

538467R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

40

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT, OPTIONAL

1шт.

41

534934R92

PLATE

PACKAGE SERVICE, 1000 RPM CLUTCH, CONSISTS OF (4) DISC, (6) PLATE, (1) O-RING 401723R1, (1) O-RING 401724R1, (4) SPRING 401715R1

1шт.

537231R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED, FOR SYNCHROMESH DRIVE TRACTORS EQUIPPED WITH IPTO ATTACHMENT 614 AND 1000 RPM

1шт.

537232R1

DECAL

PRODUCT-GRAPHIC, IPTO SPEED, FOR HYDROSTATIC DRIVE TRACTORS EQUIPPED WITH IPTO ATTACHMENT 614 AND 1000 RPM, AND FOR SYNCHROMESH DRIVE TRACTORS EQUIPPED WITH IPTO ATTACHMENT 540 AND 1000 RPM

1шт.

537233R1

PRODUCT-GRAPHIC, IPTO SPEED, FOR HYDROSTATIC DRIVE TRACTORS EQUIPPED WITH IPTO ATTACHMENT 540 AND 1000 RPM

1шт.
