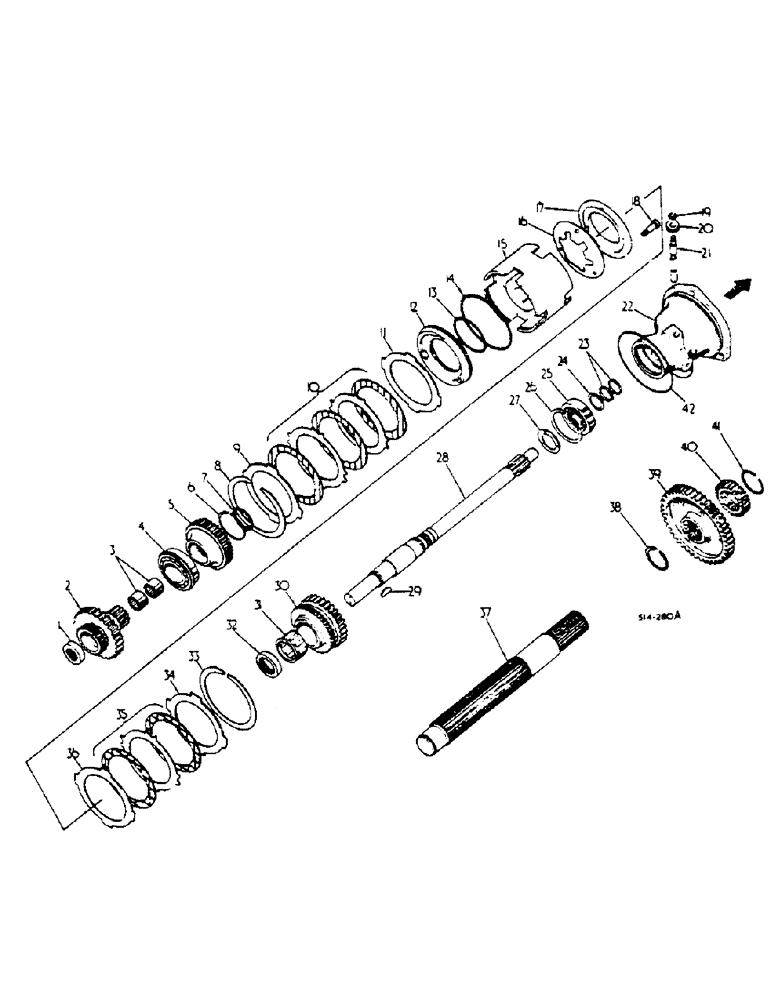

Запчасти Case IH 454 (07-48) - TORQUE AMPLIFIER, SYNCHROMESH DRIVE (04) - Drive Train

1

3118322R91

BEARING, NEEDLE

1шт.

2

3118321R2

PINION

GEAR, DIRECT DRIVE HUB, 28T

1шт.

3

550839R91

BEARING, NEEDLE

CLUTCH SHAFT

2шт.

3

531436R91

NEEDLE BEARING

CLUTCH SHAFT, OPTIONAL

2шт.

4

70126C91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

DIRECT DRIVE GEAR

1шт.

4

42347D

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

398323R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

528088R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

4

3066862R91

BALL BEARING

DIRECT DRIVE GEAR, OPTIONAL

1шт.

5

404199R2

CARRIER

DIRECT DRIVE CLUTCH DISC

1шт.

6

336000R1

SNAP RING,#175, 1.640", Ext

DISC CARRIER RETAINING

1шт.

7

583976R1

SNAP RING,#125, 1.179", Ext

RING, CLUTCH CUP RETAINING SNAP

1шт.

8

401720R1

CIRCLIP

BACKING PLATE RETAINING

1шт.

9

402569R1

PLATE

CLUTCH BACKING

1шт.

10

534936R92

PACKAGE

SERVICE, TA CLUTCH PLATE, CONSISTS OF (5) PLATE, (3) PLATE, (1) O-RING 402571R1, (1) O-RING 401724R1-

1шт.

11

402572R1

PLATE

PISTON BACKING

1шт.

12

402570R1

PISTON

DIRECT DRIVE CLUTCH

1шт.

13

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

CLUTCH PISTON INNER SEALING

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON OUTER SEALING

1шт.

15

538989R1

NO LONGER SERVICED

CUP, DIRECT DRIVE CLUTCH

1шт.

16

402574R1

BELLEVILLE WASHER

BELLEVILLE

2шт.

17

402573R1

PLATE

CLUTCH LOCK-UP PRESSURE

1шт.

18

402575R1

BOLT,1/4" - 28 x 1-5/16"

PISTON RETURN

3шт.

65240C1

SQUARE NUT

1/4-28 SQ MACH SCREW

3шт.

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

PISTON SUPPORT

3шт.

19

896045R1

SNAP RING,#37, Ext

1шт.

20

531539R1

COLLAR

TA CONTROL

1шт.

21

536975R1

STEM

TA CONTROL

1шт.

21

531538R1

NO LONGER SERVICED

STEM, TA CONTROL

1шт.

ON ORDERS FOR STEM 531358R1 FURNISH STEM 536975R1 TOGETHER W/RING 896045R1

1шт.

NLS

NO LONGER SERVICED

3/8-24 HEX. LOCK, UP TO 05355

1шт.

22

531540R2

NO LONGER SERVICED

CAGE ASSY, IPTO AND CLUTCH CUP RETAINER

1шт.

23

406275R1

RING

CLUTCH SHAFT PISTON

2шт.

24

359141R1

RING, SNAP

RING SNAP CLUTCH SHAFT BRG OUTER RETAINING

1шт.

25

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

CLUTCH SHAFT

1шт.

25

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

CLUTCH SHAFT

1шт.

25

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

CLUTCH SHAFT

1шт.

25

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

CLUTCH SHAFT, OPTIONAL

1шт.

26

377911R1

RING, SNAP

RING SNAP CLUTCH SHAFT BRG INNER RETAINING

1шт.

27

402562R1

THRUST WASHER

CLUTCH SHAFT

1шт.

28

402558R21

SHAFT

ASSY, CLUTCH

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

1/4-20 X 1/4, HEX-SOC-HD-F-PT SET, OPTIONAL W/102569

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4-20 X 1/4 HEX-SOC-HD, CUP PT SET, OPTIONAL W/222386

1шт.

29

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 X 1 WOODRUFF B, CLUTCH CUP RETAINER

1шт.

30

402563R1

PINION

GEAR ASSY, DRIVE

1шт.

31

402566R1

CLUTCH

CLUTCH ASSY, SPRAG

1шт.

32

402567R91

OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk

SPRAG BORE

1шт.

33

401720R1

CIRCLIP

BACKING PLATE RETAINING

1шт.

34

402569R1

PLATE

CLUTCH BACKING

1шт.

35

SEE PACKAGE 534936R92 REF. 10

1шт.

36

402572R1

PLATE

PISTON BACKING

1шт.

37

404104R1

SHAFT

TA

1шт.

38

381486R1

SNAP RING,#187, 1.759", Ext

TA DRIVEN GEAR AND PUMP GEAR RETAINING

1шт.

39

404105R1

PINION

GEAR, TA DRIVEN, 42T

1шт.

40

404106R1

GEAR

PUMP DRIVE, 27T

1шт.

41

381486R1

SNAP RING,#187, 1.759", Ext

TA DRIVEN GEAR AND PUMP GEAR RETAINING

1шт.

42

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 X 5-5/8 X 1/8

1шт.
