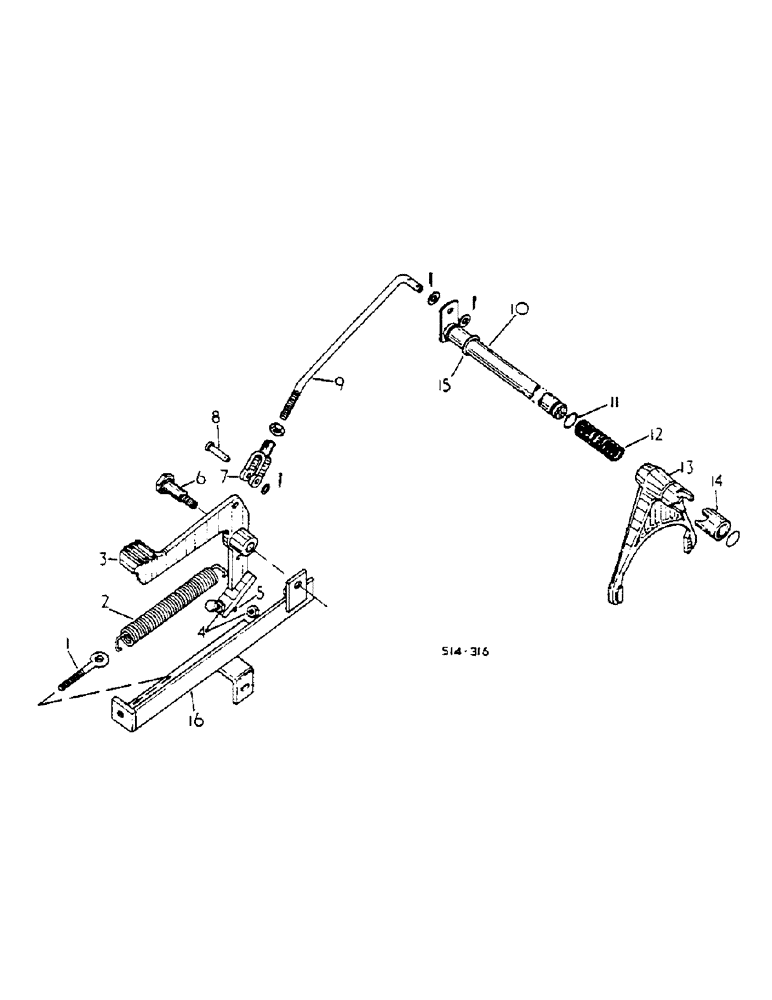

Запчасти Case IH 454 (07-44) - DIFFERENTIAL LOCK, MACHINES FITTED W/ISO MOUNTED CAB (04) - Drive Train

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT, EYE PEDAL RETURN SPRING

1шт.

125-10003

NUT,3/8"-16, G5, LH

3/8 HEX

2шт.

2

527886R1

VALVE SPRING

DIFF LOCK PEDAL RETURN, ORDER 3121849R1 AND 3121850R1

1шт.

2

3121849R1

SPRING

DIFF LOCK PEDAL RETURN

1шт.

3

3116181R2

PEDAL

DIFF LOCK

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

3116897R1

BOLT,Lock, 9/16" - 12 x 2.38"

DIFF LOCK PEDAL PIVOT

1шт.

7

753984R1

CLEVIS,3/8" - 16

ROD END

1шт.

8

NLS

NO LONGER SERVICED

3/8 X 1-1/16 CLEVIS

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

1шт.

8

3116187R1

ROD CPTE., DIFF LOCK PEDAL

1шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

9

527871R1

SHAFT ASSY.

DIFF LOCK

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

11

527878R1

SPRING

DIFF LOCK FORK ACTUATING

1шт.

12

527874R1

NO LONGER SERVICED

FORK ASSY, DIFF LOCK SHAFT

1шт.

12

527877R1

CAM

DIFF LOCK SHAFT

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

13

551658R1

WASHER

25/32 X 1-1/4 X 22

1шт.

13

Q3501

WASHER

25/32 X 1-1/4 X 16, AS REQUIRED

1шт.

14

3116182R1

SUPPORT ASSY.

DIFF LOCK PEDAL

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

120396

WASHER

.531 X 1.062 X .074

1шт.

103323

LOCK WASHER,1/2"

1шт.
