(07-42) - DIFFERENTIAL LOCK, MACHINES NOT FITTED W/ISO MOUNTED CAB

Запчасти Case IH 454 (07-42) - DIFFERENTIAL LOCK, MACHINES NOT FITTED W/ISO MOUNTED CAB (04) - Drive Train

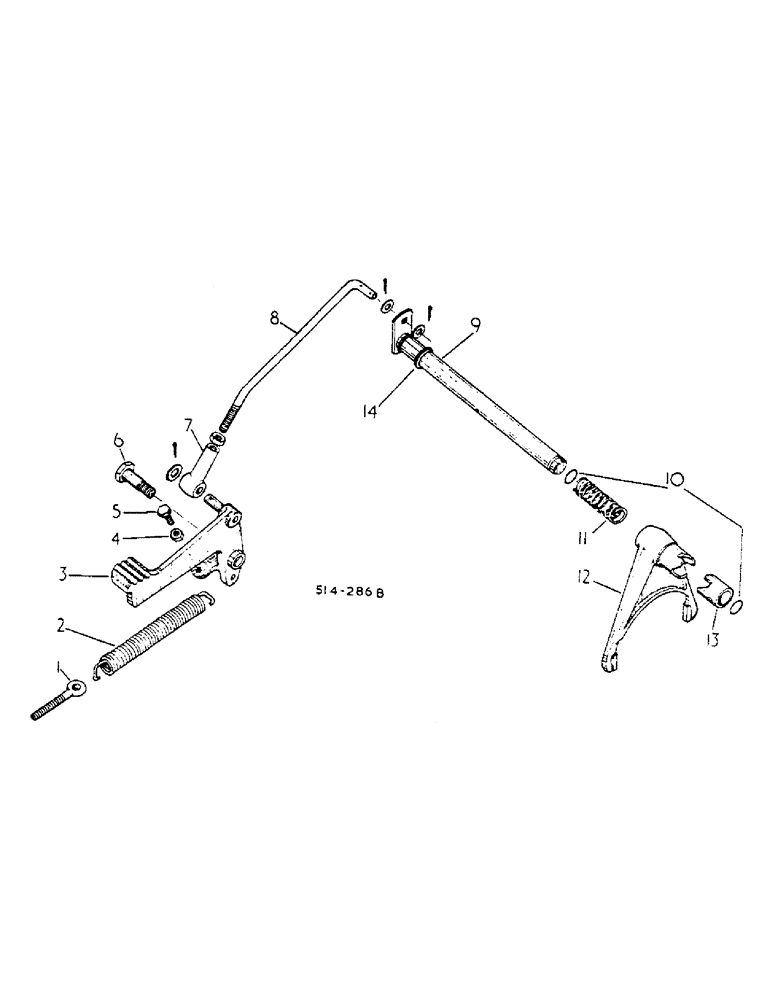

Схема запчастей Case IH 454 - (07-42) - DIFFERENTIAL LOCK, MACHINES NOT FITTED W/ISO MOUNTED CAB (04) - Drive Train
9
10
4
3
7
5
13
6
14
1
2
12
8
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT, EYE PEDAL RETURN SPRING

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

527886

SPRING

DIFF. LOCK PEDAL RETURN, ORDER 3121849R1 AND 3121850R1

1шт.

2

3121849R1

SPRING

DIFF LOCK PEDAL RETURN

1шт.

3

66441C1

PEDAL

DIFF. LOCK

1шт.

11002VA

WASHER

17/32 X 7/8 X 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

6

527885R1

BOLT

BOLT, DIFF. LOCK PEDAL RETURN

1шт.

7

527880R1

END

DIFF. LOCK PEDAL RETURN

1шт.

8

527879R1

ROD

DIFF. LOCK PEDAL

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 X 3/4 X 1/16

2шт.

Q103384

PIN, 1/8 X 3/4 COT.

2шт.

9

65346C1

SHAFT

ASSY, DIFF LOCK

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

454/100857 up to 101005, 2400/100136 up to 100166

1шт.

ON ORDER FOR SHAFT 65346C100, FURNISH 527871R1 WITH FORK 527874R3, CAM 527877R1 AND PIN 19885R1

1шт.

9

527871R1

SHAFT ASSY.

DIFF. LOCK, UP TO 454/100856 AND 454/101006 UP, UP TO 2400/100135 AND 2400/100167 UP

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

2шт.

11

527878R1

SPRING

DIFF LOCK FORK ACTUATING

1шт.

12

65438C1

FORK ASSY, DIFF. LOCK SHAFT, 454/100857 UP TO 101005, 2400/100136 UP TO 100166

1шт.

ON ORDER FOR FORK 65348C1, FURNISH FORK 527874R3 WITH SHAFT 527871R1, CAM 527877R1 AND PIN 19885C1

1шт.

12

527874R3

FORK

ASSY, DIFF LOCK SHAFT

1шт.

13

527877R1

CAM

DIFF LOCK SHAFT

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

Up to 454/100856 and 454/101006 up, up to 2400/100135 and 2400/100167 up

1шт.

14

551658R1

WASHER

25/32 X 1-1/4 X 22 GA

1шт.

14

Q3501

WASHER

25/32 X 1/1/4 X 16 GA

1шт.

237672R1

PAD

DIFF. LOCK PEDAL, USE W/TWO PIECE PEDAL

1шт.

16809R1

SPARE PART 1/2 X 1-5/16 ROD END

1шт.

11002VA

WASHER

17/32 X 7/8 X 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

Use w/two piece pedal

1шт.

65350C1

NO LONGER SERVICED

PIN, DIFF. LOCK CAM ACTUATING, ORDER SHAFT 527871R1 FORK 527874R3 CAM 527877R1 AND PIN 19885R1, 454/100857 UP TO 101005, 2400/100136 UP TO 100166

1шт.
