Запчасти Case IH 454 (07-33) - CLUTCH, FORWARD AND REVERSE (04) - Drive Train

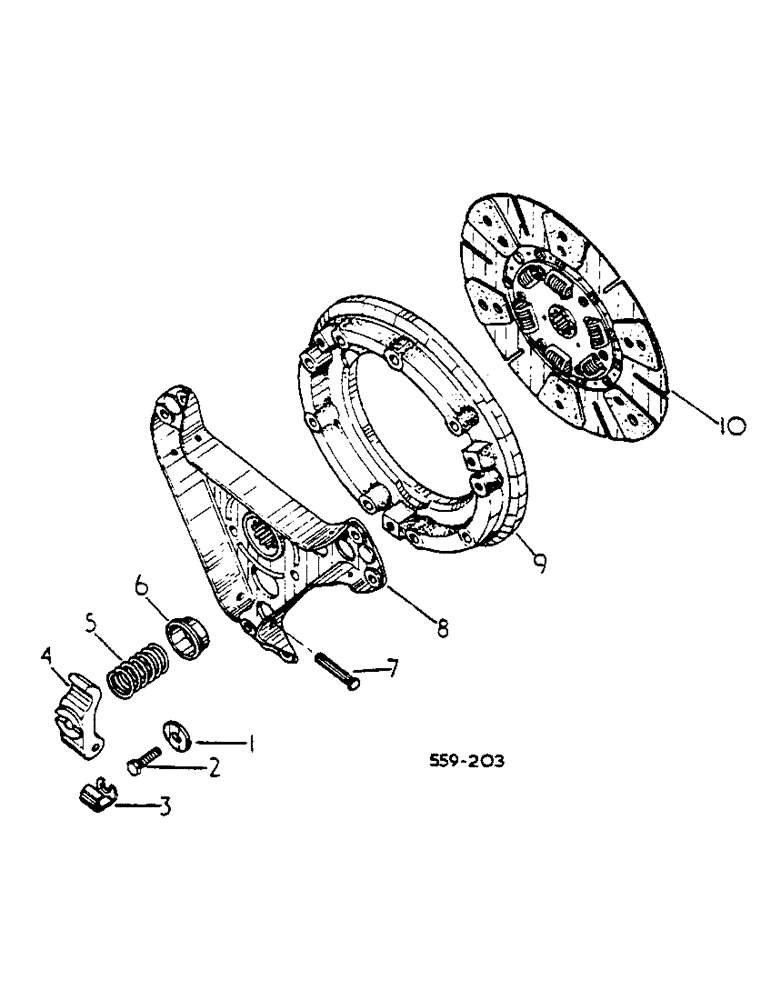

Схема запчастей Case IH 454 - (07-33) - CLUTCH, FORWARD AND REVERSE (04) - Drive Train
10
8
7
1
6
3
5
2
9
4

Артикул

Название

Примечание

Количество

70716C1

COVER ASSY

CLUTCH PRESSURE PLATE, CONSISTS OF: REF. 1 - 9

1шт.

68211C91

COVER

ASSY, CLUTCH PRESSURE PLATE, CONSISTS OF: REF. 1 - 9, ORDER COVER ASSY 70716C1

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

WASHER

3шт.

2

69911C1

KIT

COVER PARTS W/SCREW, CLIP, NUT AND WASHER

1шт.

NUT, 5/16-24 HEX

3шт.

3

CLIP, RETURN

3шт.

4

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

PRESSURE SPRING AND CUP

1шт.

6

CUP, SPRING

3шт.

7

PIN, PIVOT

3шт.

8

69914C1

HUB ASSY.

KIT, BRACKET AND HUB

1шт.

9

69913C1

KIT

PRESSURE PLATE

1шт.

10

70093C91

PLATE

ASSY, CLUTCH DRIVEN DISC

1шт.

Выбрано товаров: 15
