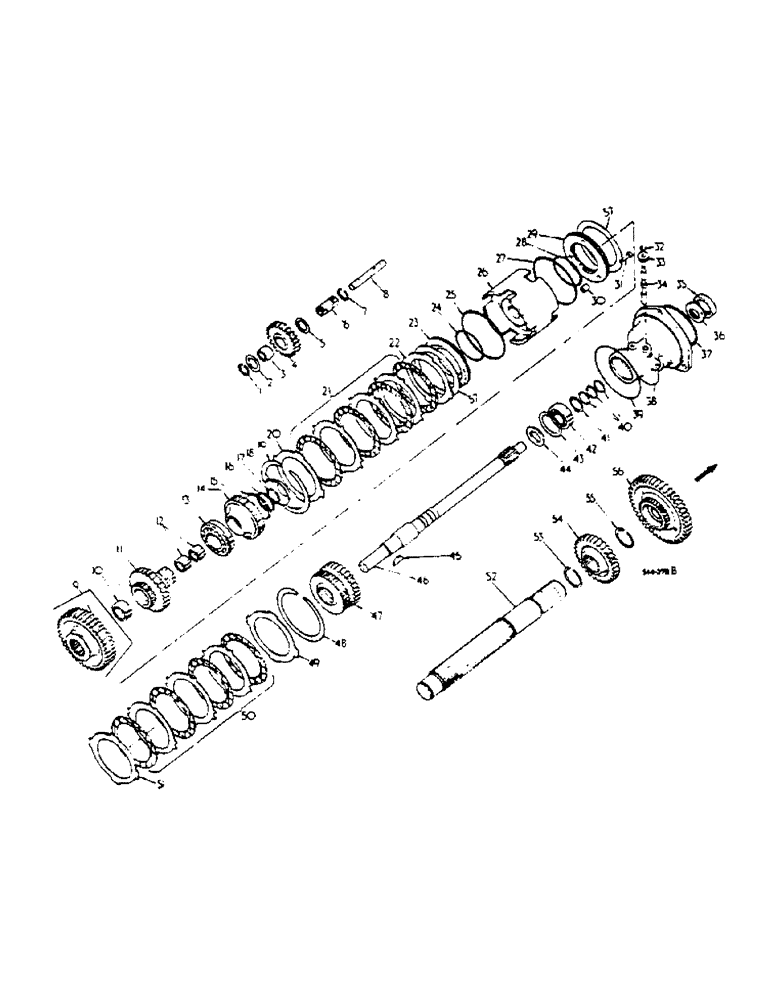

Запчасти Case IH 454 (07-29) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (04) - Drive Train

1

362260R1

RING, SNAP

RING SNAP IDLER GEAR RETAINER

1шт.

2

527772R1

WASHER

FWD/REV IDLER GEAR

1шт.

3

551139R91

BEARING, NEEDLE

IDLER SHAFT

1шт.

3

529930R91

BEARING

IDLER SHAFT NEEDLE, OPTIONAL

1шт.

4

527776R1

PINION

GEAR, FWD-REV IDLER, 23T

1шт.

5

527772R1

WASHER

FWD/REV IDLER GEAR

1шт.

6

527775R2

SLEEVE

IDLER GEAR

1шт.

18543R1

LOCK PIN,7/32" x 1", Slotted

1шт.

7

362260R1

RING, SNAP

RING SNAP IDLER GEAR RETAINER

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

3/16" x 1 1/4", Coiled

1шт.

8

527774R1

SHAFT

FWD-REV IDLER

1шт.

9

527779R2

GEAR

HI-LO SLIDING, 40T, USED W/TRACTORS FITTED W/SLOW SPEED TRAIN TYPE A

1шт.

9

527773R2

GEAR

HI-LO SLIDING, 42T, USED W/TRACTORS FITTED W/FAST SPEED TRAIN TYPE B

1шт.

10

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

CLUTCH SHAFT

1шт.

11

404200R1

GEAR

DIRECT DRIVE HUB, 28T

1шт.

12

531436R91

NEEDLE BEARING

CLUTCH SHAFT

2шт.

12

550839R91

BEARING, NEEDLE

CLUTCH SHAFT, OPTIONAL

2шт.

13

70126C91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

13

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

DIRECT DRIVE GEAR

1шт.

13

42347D

BALL BEARING

DIRECT DRIVE GEAR

1шт.

13

528088R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

13

3066862R91

BALL BEARING

DIRECT DRIVE GEAR

1шт.

13

398323R91

BALL BEARING

DIRECT DRIVE GEAR, OPTIONAL

1шт.

14

404199R3

SPROCKET ASSY.

CARRIER, DIRECT DRIVE CLUTCH DISC

1шт.

15

70244C1

RING, SNAP

RING SNAP INTERNAL

1шт.

16

336000R1

SNAP RING,#175, 1.640", Ext

DISC CARRIER RETAINER

1шт.

17

583976R1

SNAP RING,#125, 1.179", Ext

RING, CLUTCH CUP RETAINER SNAP

1шт.

18

70020C1

SLINGER

SLINGER, DIRECT DRIVE CLUTCH

1шт.

19

401720R1

CIRCLIP

BACKING PLATE RETAINER

1шт.

20

402569R1

PLATE

CLUTCH BACKING, UP TO 2400/187

1шт.

20

70016C1

PLATE

CLUTCH BACKING, 2400/188 UP

1шт.

21

534937R92

PACKAGE, REPAIR

FWD-REV CLUTCH PLATE, SERVICE, CONSISTS OF (8) PLATE, (6) PLATE, (2) O-RING 401723R1, (2) O-RING 401724R1

1шт.

22

402572R1

PLATE

PISTON BACKING

1шт.

23

527766R1

PISTON

DIRECT DRIVE CLUTCH, UP TO 2400/187

1шт.

23

70017C1

PISTON

DIRECT DRIVE CLUTCH, 2400/188 UP

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

CLUTCH PISTON, INNER

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON, OUTER

1шт.

26

CUP, DIRECT DRIVE CLUTCH, ORDER PACKAGE 70014C2 REF 46

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

CLUTCH PISTON, OUTER

1шт.

28

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

CLUTCH PISTON, INNER

1шт.

29

527766R1

PISTON

DIRECT DRIVE CLUTCH, UP TO 2400/187

1шт.

29

70017C1

PISTON

DIRECT DRIVE CLUTCH, 2400/188 UP

1шт.

30

527769R2

SPACER

PISTON

3шт.

31

527768R1

BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"

FWD-REV PISTON RETURN

3шт.

65240C1

SQUARE NUT

1/4-28 SQ MACH SCREW

3шт.

32

896045R1

SNAP RING,#37, Ext

1шт.

33

531539R1

COLLAR

CONTROL STEM

1шт.

34

536974R1

STEM

FORWARD AND REVERSE CONTROL, 006718 UP

1шт.

34

527759R1

NO LONGER SERVICED

STEM, CONTROL VALVE

1шт.

ON ORDER FOR STEM 527759R1 FURNISH STEM 536974R1 W/RING 896045R1

1шт.

145028

GASKET

3/8-24 HEX. LOCK, UP TO 006717

1шт.

35

376930R1

SEAL

IPTO DRIVE SHAFT, 454/8484 UP, 2400/692 UP

1шт.

35

398321R1

SEAL

IPTO DRIVE SHAFT, UP TO 454/8483, UP TO 2400/691

1шт.

36

105758C1

OIL SEAL

CLUTCH SHAFT

1шт.

36

114578C1

SEAL

CLUTCH SHAFT, OPTIONAL

1шт.

37

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 X 4 X 1/8

1шт.

38

527761R2

NO LONGER SERVICED

CAGE ASSY, IPTO CLUTCH CUP RET

1шт.

39

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 X 5-5/8 X 1/8, BEARING CAGE

1шт.

40

406275R1

RING

CLUTCH SHAFT PISTON

3шт.

41

3112664R1

SNAP RING

CLUTCH SHAFT BRG OUTER RETAINING

1шт.

42

70125C91

BEARING, BALL

CLUTCH SHAFT

1шт.

42

703981R91

BEARING, BALL

CLUTCH SHAFT

1шт.

42

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

CLUTCH SHAFT BALL

1шт.

42

86276H

BALL BEARING

CLUTCH SHAFT BALL

1шт.

42

704771R92

BEARING, BALL,30 mm ID x 62 mm OD x 16"

CLUTCH SHAFT, OPTIONAL

1шт.

43

139743R1

RING

CLUTCH SHAFT BRG INNER RETAINING

1шт.

44

527767R1

THRUST WASHER

CLUTCH SHAFT

1шт.

45

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 X 1 WOODRUFF B

1шт.

46

70014C2

PACKAGE, REPAIR

FWD-REV SHAFT AND CLUTCH CUP, SERVICE, CONSISTS OF (1) SHAFT, (1) CUP, (1) RING 583976R1, (1) SLINGER 70020C1, (2) SCREW 222386

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

1/4-20 X 1/4 HEX. SOC-HD-F PT SET

2шт.

47

527763R3

PINION

GEAR ASSY, DRIVE

1шт.

48

401720R1

CIRCLIP

BACKING PLATE RETAINER

1шт.

49

402569R1

PLATE

CLUTCH BACKING, UP TO 2400/187

1шт.

49

70016C1

PLATE

CLUTCH BACKING, 2400/188 UP

1шт.

50

SEE SERVICE PACKAGE 534937R92 REF. 21

1шт.

51

402572R1

PLATE

PISTON BACKING

1шт.

52

404104R1

SHAFT

1шт.

53

381486R1

SNAP RING,#187, 1.759", Ext

GEAR RETAINING

2шт.

54

527771R1

PINION

GEAR, FWD-REV DRIVEN, 31T

1шт.

55

381486R1

SNAP RING,#187, 1.759", Ext

GEAR RETAINING

1шт.

56

527770R1

GEAR

IPTO DRIVEN 46T AND FWD-REV PUMP DRIVE 33T

1шт.

57

70039C1

SHIM KIT

PACKAGE SERVICE, FWD AND REV PISTON RETURN, CONSISTS OF ALL PARTS LISTED BELOW

1шт.

SHIM .014"

2шт.

SHIM .024"

2шт.

SHIM .036"

2шт.

INSTRUCTION, SHIM INSTALLATION

1шт.

DIAGRAM, CLUTCH ASSY

1шт.
