Запчасти Case IH 454 (07-26) - RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

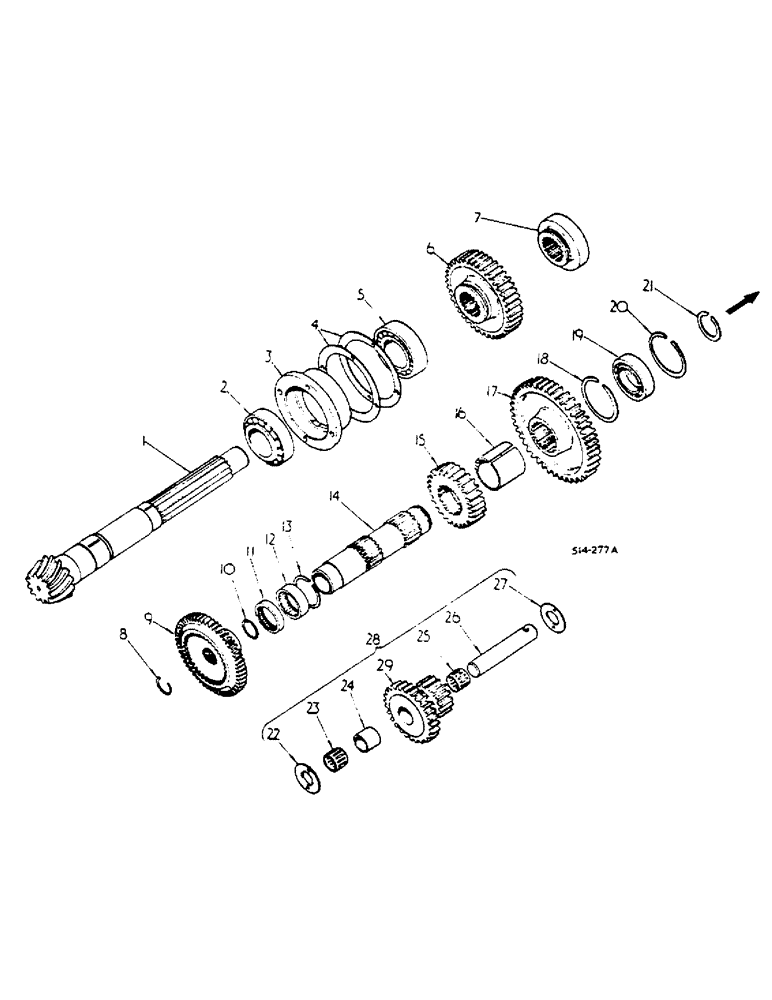

Схема запчастей Case IH 454 - (07-26) - RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train
26
23
9
8
2
25
19
5
6
10
1
14
12
21
11
3
17
18
28
15
7
24
20
16
4
29
13
22
27

Артикул

Название

Примечание

Количество

1

65254C1

SHAFT

SET, BEVEL GEARS MATCHED, 12/53T, SYNCHROMESH 007278 UP, HYDROSTATIC 008213 UP, CONSISTS OF (1) SHAFT, (1) GEAR

1шт.

1

529649R1

GEAR-SET

BEVEL MATCHED, 12/53T, UP TO 007277 SYNCHROMESH, UP TO 008212 HYDROSTATIC, CONSISTS OF (1) SHAFT, (1) GEAR

1шт.

1

65255C1

GEAR SET

BEVEL MATCHED, 14/51T, SYNCHROMESH 007278 UP, HYDROSTATIC 008213 UP, CONSISTS OF (1) SHAFT, (1) GEAR

1шт.

1

529650R1

GEAR-SET

BEVEL MATCHED, 14/51T, UP TO 007277 SYNCHROMESH, UP TO 008212 HYDROSTATIC, CONSISTS OF (1) SHAFT, (1) GEAR

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, MAIN SHAFT REAR

1шт.

2

399824R91

ROLLER BEARING

ASSY, MAIN SHAFT REAR, OPTIONAL

1шт.

3

399825R1

BEARING CUP

CAGE, MAIN SHAFT BRG

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

65423C1

SHIM KIT

PACKAGE SERVICE, MAIN SHAFT BRG CAGE, CONSISTS OF (2) SHIM, (5) SHIM

1шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, MAIN SHAFT FRONT

1шт.

5

399822R91

ROLLER BEARING

ASSY, MAIN SHAFT FRONT, OPTIONAL

1шт.

6

399461R1

GEAR

FWD REVERSE SLIDING, 40T, SYNCHROMESH DRIVE TRACTORS, 15 MPH TRANSMISSION

1шт.

6

399462R1

GEAR

FWD REVERSE SLIDING, 42T, SYNCHROMESH DRIVE TRACTORS, 20 MPH TRANSMISSION

1шт.

6

399829R1

GEAR WHEEL

HI-LO SLIDING, 42T, HYDROSTATIC DRIVE TRACTORS, HAND SPEED CONTROL

1шт.

6

536911R1

GEAR

HI-LO SLIDING, 44T, HYDROSTATIC DRIVE TRACTORS, FOOT SPEED CONTROL

1шт.

7

399830R2

COLLAR

HI-SPEED, SYNCHROMESH DRIVE TRACTORS

1шт.

8

533266R1

RING, SNAP

RING SNAP IPTO FRONT DRIVEN SHAFT REAR

1шт.

9

404218R1

GEAR

PUMP DRIVE, 55T, TRACTORS W/DUAL SPEED IPTO

1шт.

9

404217R1

GEAR

SPARE PART PUMP DRIVE, 62T, TRACTORS W/SINGLE SPEED IPTO

1шт.

10

399837R1

SNAP RING,#118, 1.121", Ext

PUMP DRIVE GEAR RETAINER

1шт.

11

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

PUMP DRIVE GEAR

1шт.

12

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT

1шт.

12

527746R91

BEARING, NEEDLE

COUNTERSHAFT, OPTIONAL

1шт.

13

398264R1

SNAP RING,#215, 2.026", Ext

LO RANGE DRIVING GEAR RET

1шт.

14

404096R1

SHAFT

RANGE TRANSMISSION

1шт.

15

404100R1

PINION

GEAR, LO RANGE DRIVING, 27T, SYNCHROMESH DRIVE TRACTORS, 15 MPH TRANSMISSION

1шт.

15

103150C1

PINION

GEAR, LO-RANGE DRIVING, 24T

1шт.

15

404099R1

GEAR

LO-RANGE DRIVING, 25T, UP TO 454/102857, ORDER 103150C1 W/GEAR 70298C1, 20 MPH TRANSMISSION, 15 MPH TRANSMISSION HYDRO, HAND SPEED CONTROL

1шт.

15

536910R1

PINION

GEAR LO-RANGE DRIVING, 24T, FOOT DRIVE CONTROL

1шт.

16

399835R1

BUSHING

COUNTERSHAFT GEARS

1шт.

17

404097R1

GEAR

CONSTANT MESH, 46T, SYNCHROMESH DRIVE TRACTORS

1шт.

17

404098R1

GEAR

SPARE PART CONSTANT MESH, 40T, HYDROSTATIC DRIVE TRACTORS

1шт.

18

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

19

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

COUNTERSHAFT FRONT

1шт.

19

360635R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

528101R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

528102R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

3047867R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

19

3069304R91

BALL BEARING

COUNTERSHAFT FRONT

1шт.

19

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

COUNTERSHAFT FRONT, OPTIONAL

1шт.

20

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

2шт.

21

327068R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG EXT

1шт.

22

3112846R1

THRUST WASHER

IDLER

1шт.

23

3112844R91

BEARING, NEEDLE

REVERSE IDLER GEAR, SYNCHROMESH DRIVE TRACTORS

1шт.

23

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR NEEDLE, SYNCHROMESH DRIVE TRACTORS, OPTIONAL

1шт.

24

3112845R1

SPACER

IDLER BEARING

1шт.

25

3112844R91

BEARING, NEEDLE

REVERSE IDLER GEAR, SYNCHROMESH DRIVE TRACTORS

1шт.

25

3113041R91

ROLLER CAGE BEARING

REVERSE IDLER GEAR NEEDLE, SYNCHROMESH DRIVE TRACTORS, OPTIONAL

1шт.

26

399838R3

SHAFT

REVERSE IDLER, SYNCHROMESH DRIVE TRACTORS

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

3/8" x 1 3/4", Coiled

1шт.

27

3112846R1

THRUST WASHER

IDLER

1шт.

28

3112847R91

KIT

PACKAGE, REVERSE IDLER GEAR NEEDLE, SYNCHROMESH DRIVE TRACTORS, AR/AS TRANSMISSION 15 MPH, CONSISTS OF GEAR, BEARING, SPACER WASHER AND SHAFT

1шт.

GEAR 70298C1

1шт.

BEARING 3112844R91

2шт.

SPACER 3112845R1

1шт.

WASHER 3112846R1

2шт.

SHAFT 399838R3

1шт.

28

3112848R92

10 NEEDLE BRG KIT

PACKAGE, REVERSE IDLER GEAR, SYNCHROMESH DRIVE TRACTORS, BR/BS TRANSMISSION 20 MPH, CONSISTS OF GEAR, BEARING, SPACER, WASHER AND SHAFT

1шт.

GEAR 3112842R1

1шт.

BEARING 3112844R91

2шт.

SPACER 3112845R1

1шт.

WASHER 3112846R1

2шт.

SHAFT 399838R2

1шт.

29

70298C1

PINION

GEAR, REVERSE IDLER, 20/24T, 20 MPH

1шт.

29

3112843R1

GEAR

REVERSE IDLER, 18/27T, 15 MPH

1шт.

Выбрано товаров: 65
