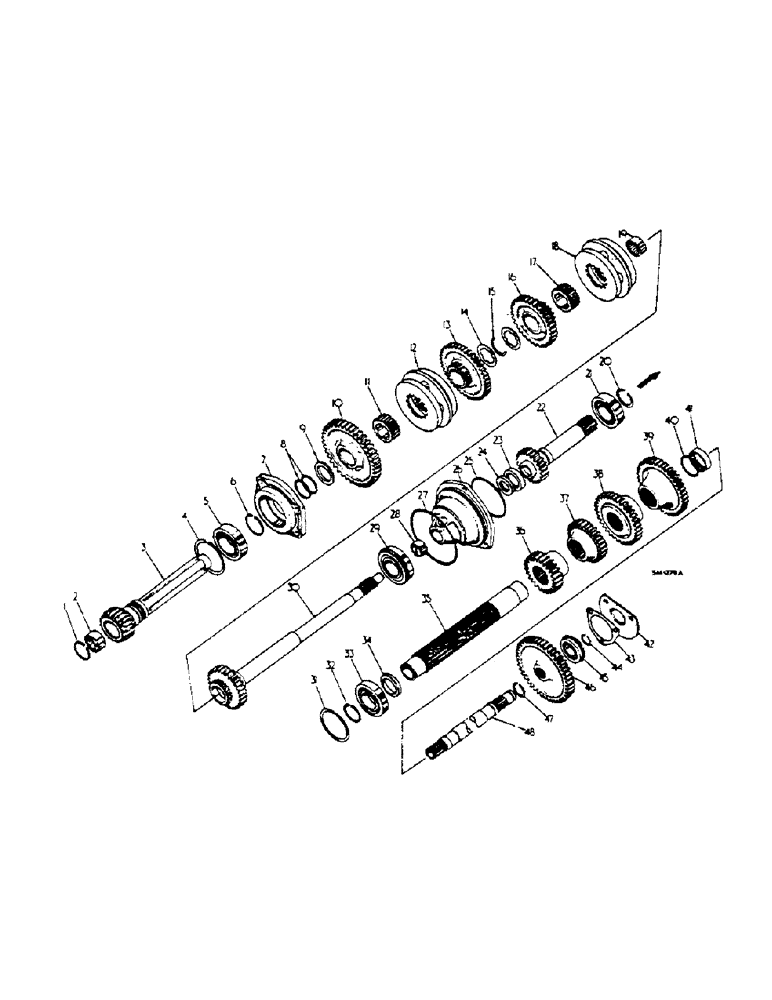

Запчасти Case IH 454 (07-23) - SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train

1

66014C1

SNAP RING

FRONT NEEDLE BRG INT

1шт.

2

613639C1

BEARING

MAIN SHAFT NEEDLE, 454/007278 UP, 2400/000688 UP

1шт.

2

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

MAIN SHAFT NEEDLE, 454/UP TO 007277, 2400/UP TO 000687

1шт.

3

65258C1

SHAFT

MAIN, 454/007278, 2400/000688

1шт.

3

3118323R1

SHAFT

MAIN, TORQUE AMPLIFIER

1шт.

3

398324R2

SHAFT

MAIN, 454/UP TO 007277, 2400/UP TO 000687

1шт.

4

398334R1

SNAP RING

MAIN SHAFT BRG RETAINER INNER

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

MAIN SHAFT

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

MAIN SHAFT

1шт.

5

3048701R91

BALL BEARING

MAIN SHAFT

1шт.

5

704234R91

BALL BEARING

MAIN SHAFT, OPTIONAL

1шт.

6

327068R1

RING, SNAP

RING SNAP MAIN SHAFT BRG RETAINER OUTER

1шт.

7

534411R1

BEARING ASSY

CAGE ASSY, MAIN SHAFT BRG

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

MAINSHAFT LUBE LINE SEAL

2шт.

9

398332R1

WASHER

RING

1шт.

10

398269R2

GEAR

1ST SPEED DRIVEN, 44T, 15 MPH TRANSMISSION

1шт.

10

398331R2

PINION

GEAR, 1ST SPEED DRIVEN, 41T, 20 MPH TRANSMISSION

1шт.

10

535243R1

GEAR

1ST SPEED DRIVING, 65T, 15 MPH TRANS- LOW SPEED DRIVE

1шт.

11

398325R1

HUB

3RD AND 4TH SPEED SHIFT

1шт.

12

65793C1

SYNCHRONIZER

PACKAGE SERVICE

1шт.

13

398270R3

PINION

GEAR, 2ND SPEED DRIVEN, 39T, 15 MPH TRANSMISSION

1шт.

13

398330R3

PINION

GEAR, 2ND SPEED DRIVEN, 33T, 20 MPH TRANSMISSION

1шт.

14

398328R2

THRUST WASHER

MAIN SHAFT

2шт.

15

398329R1

CIRCLIP

SYNCHRONIZER LOCATING

1шт.

16

398330R3

PINION

GEAR, 3RD SPEED DRIVEN, 33T, 15 MPH TRANSMISSION

1шт.

16

398327R3

PINION

GEAR, 4TH SPEED DRIVEN, 24T, 20 MPH TRANSMISSION

1шт.

17

398325R1

HUB

1ST AND 2ND SPEED SHIFT

1шт.

18

65793C1

SYNCHRONIZER

PACKAGE SERVICE

1шт.

19

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

CLUTCH SHAFT

1шт.

20

379511R1

SNAP RING,#177, 1.657", Ext

IPTO DRIVE SHAFT BRG RETAINER

1шт.

21

ST342

BEARING, BALL,45mm ID x 85mm OD x 19mm W

IPTO DRIVE SHAFT

1шт.

21

65354C91

BALL BEARING

IPTO DRIVE SHAFT, OPTIONAL

1шт.

22

66347C3

CARRIER

SHAFT, IPTO DRIVE, TRACTORS W/DUAL SPEED IPTO, UP TO 454/102857, UP TO 2400/100276, ORDER SHAFT 71230C1, CARRIER 71229C1 AND SEAL 108982C1

1шт.

22

71230C1

SHAFT HOUSING

IPTO DRIVE, TRACTORS W/DUAL SPEED IPTO, 454/102858 UP, 2400/100276 UP

1шт.

22

66346C1

CARRIER

SHAFT IPTO, DRIVE, TRACTORS W/SINGLE SPEED IPTO, UP TO 454/1043299, 2400/10338

1шт.

22

71231C1

PTO SHAFT

I DRIVE, TRACTORS W/SINGLE SPEED IPTO, 454/104330, 2400/10339

1шт.

23

398321R91

OIL SEAL

IPTO DRIVE SHAFT OIL, UP TO 454/008483, UP TO 2400/00691

1шт.

23

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

IPTO DRIVE SHAFT OIL, 454/008484 UP, 2400/00692 UP

1шт.

24

105758C1

OIL SEAL

CLUTCH SHAFT OIL

1шт.

24

114578C1

SEAL

CLUTCH SHAFT, OPTIONAL

1шт.

25

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 X 4 X 1/8

1шт.

26

398318R21

BEARING ASSY,1.184" ID

ASSY, IPTO AND CLUTCH SHAFT BRG, COMPLETE W/BUSHING

1шт.

27

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 X 5-5/8 X 1/8 BRG CAGE

1шт.

28

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

CLUTCH SHAFT

1шт.

29

70126C91

BALL BEARING

CLUTCH SHAFT

1шт.

29

398323R91

BALL BEARING

CLUTCH SHAFT

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

CLUTCH SHAFT

1шт.

29

42347D

BALL BEARING

CLUTCH SHAFT

1шт.

29

3066862R91

BALL BEARING

CLUTCH SHAFT

1шт.

29

528088R91

BALL BEARING

CLUTCH SHAFT, OPTIONAL

1шт.

30

398320R3

SHAFT

CLUTCH

1шт.

31

574964R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG

1шт.

32

379511R1

SNAP RING,#177, 1.657", Ext

COUNTERSHAFT BRG

1шт.

33

452883R91

BALL BEARING

COUNTERSHAFT

1шт.

33

13176D

BALL BEARING,2.257" ID x 3.3465" OD x 0.748"

COUNTERSHAFT

1шт.

33

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

COUNTERSHAFT

1шт.

33

704704R91

BALL BEARING

COUNTERSHAFT

1шт.

33

705238R91

BALL BEARING

COUNTERSHAFT

1шт.

33

528100R91

BALL BEARING

COUNTERSHAFT, OPTIONAL

1шт.

34

398268R1

BUSHING

RING SPACER

1шт.

35

404089R1

SHAFT

SPEED TRANSMISSION

1шт.

36

404095R1

GEAR

1ST SPEED DRIVE, 23T, 15 MPH TRANSMISSION

1шт.

36

404093R1

GEAR

GEAR, 1ST SPEED DRIVE, 26T, 20 MPH TRANSMISSION

1шт.

36

535242R1

GEAR

1ST SPEED DRIVING, 30T, 15 MPH TRANS, LOW SPEED FIRST

1шт.

37

404094R1

PINION

GEAR, 2ND SPEED DRIVE, 28T, 15 MPH TRANSMISSION

1шт.

37

404092R1

PINION

GEAR, 2ND SPEED DRIVE, 34T, 20 MPH TRANSMISSION

1шт.

38

404092R1

PINION

GEAR, 3RD SPEED DRIVE, 34T, 15 MPH TRANSMISSION

1шт.

38

404091R1

PINION

GEAR, 4TH SPEED DRIVE, 43T, 20 MPH TRANSMISSION

1шт.

39

404090R1

PINION

GEAR, CONSTANT MESH DRIVEN, 39T

1шт.

40

398264R1

SNAP RING,#215, 2.026", Ext

CONSTANT MESH DRIVEN GEAR RETAINING

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT FRONT

1шт.

41

527746R91

BEARING, NEEDLE

COUNTERSHAFT FRONT, OPTIONAL

1шт.

42

398259R1

LARGE PLATE

PLATE, LARGE RETAINER, IPTO DRIVEN SHAFT FRONT BRG CAP

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

43

398260R2

GASKET

IPTO DRIVEN SHAFT FRONT BRG RETAINER

1шт.

44

555601R1

RING, SNAP

RING SNAP IPTO DRIVEN SHAFT FRONT BRG RETAINER

1шт.

45

69384C91

BALL BEARING

IPTO DRIVEN SHAFT FRONT

1шт.

45

65353C91

BALL BEARING

IPTO DRIVEN SHAFT FRONT

1шт.

45

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

IPTO DRIVEN SHAFT FRONT, OPTIONAL

1шт.

46

404214R1

GEAR

IPTO DRIVEN, 46T, TRACTORS W/DUAL SPEED IPTO

1шт.

46

404213R1

GEAR

IPTO DRIVEN, 53T, TRACTORS W/SINGLE SPEED IPTO

1шт.

47

399837R1

SNAP RING,#118, 1.121", Ext

IPTO DRIVEN GEAR RETAINER

1шт.

48

536748R1

SHAFT ASSY.

IPTO DRIVEN

1шт.
