Запчасти Case IH 454 (07-22) - HYDROSTATIC CHARGE PUMP (04) - Drive Train

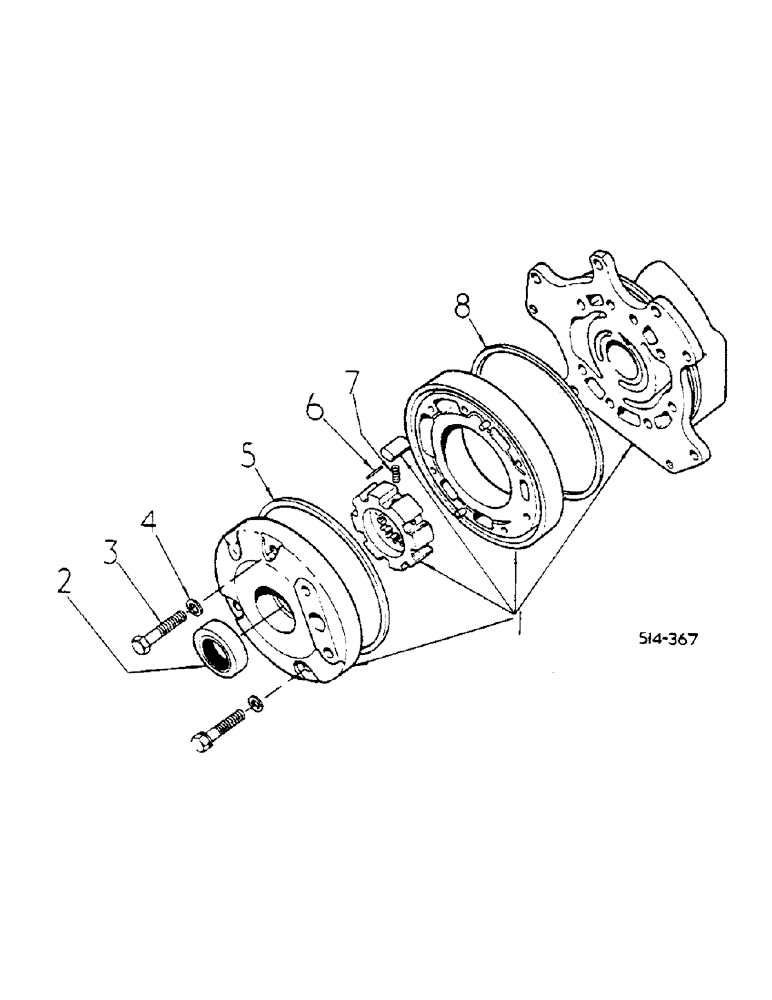

Схема запчастей Case IH 454 - (07-22) - HYDROSTATIC CHARGE PUMP (04) - Drive Train
8
5
2
4
1
6
7
3

Артикул

Название

Примечание

Количество

1

401020R91

PUMP

ASSY, CHARGE, CONSISTS OF: REF. 2 THRU 8

1шт.

1

66454C91

PUMP, HYDRAULIC

ASSY, CHARGE, OPTIONAL, CONSISTS OF: REF. 2 THRU 8

1шт.

565632R1

WASHER

13/32 X 5/8 X .049" COPPER

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

2

405743R91

OIL SEAL

OIL

1шт.

3

397440R1

12 PT SCREW,Flg, 3/8" - 16 x 1.88", Gr 5

HEX WASHER HD

2шт.

4

379439R1

RETAINER

2шт.

4

565832R1

WASHER

OPTIONAL

2шт.

5

405172R1

RING

RECTANGULAR SEAL

1шт.

6

537786R1

KIT

SLIPPER PIN, CONSISTS OF 8 STANDARD PINS

1шт.

7

397433R1

SPRING

SLIPPER

8шт.

8

405172R1

RING

RECTANGULAR SEAL

1шт.

Выбрано товаров: 12
