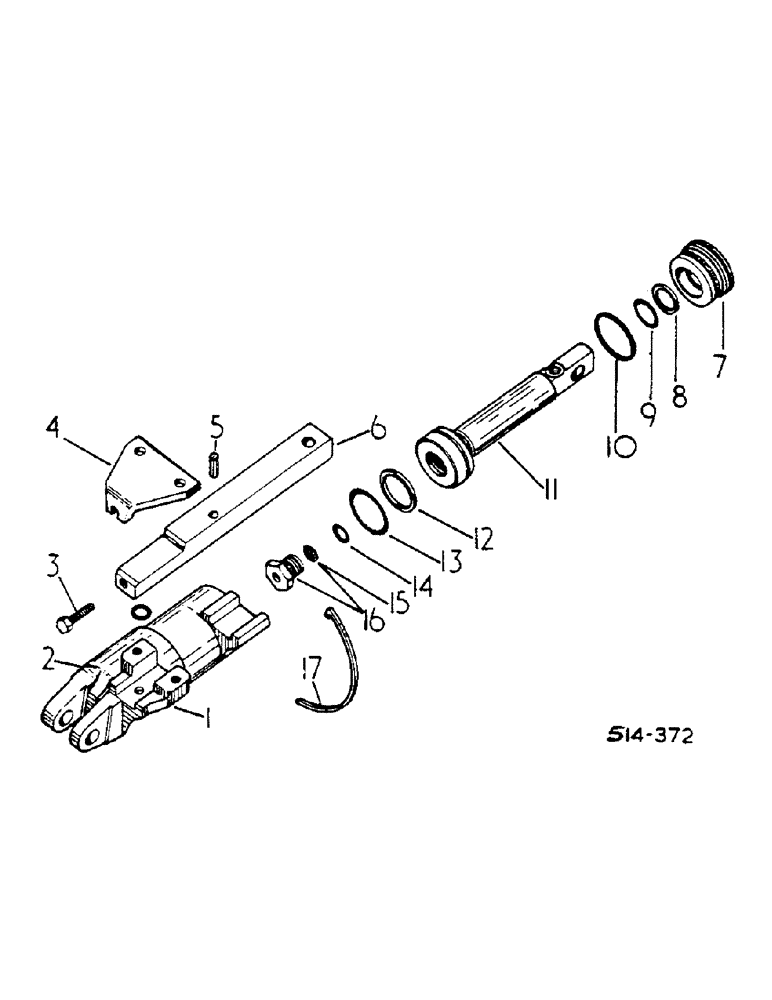

Запчасти Case IH 454 (07-15) - PUMP SERVO CYLINDER (04) - Drive Train

1

401079R1

BODY

1шт.

2

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

ADJ BLOCK

1шт.

4

401087R1

BRACKET

ADJ BLOCK

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

5

69786C1

PIN

DOWEL 5/16 X 7/8

1шт.

6

401086R1

BLOCK

AGRICULTURAL MODELS

1шт.

6

401086R12

BLOCK ASSY.

VARIABLE ORIFICE ADJ, INDUSTRIAL MODELS

1шт.

7

401084R1

GUIDE

1шт.

8

405310R1

RING

GUIDE SEALING INNER

1шт.

9

347070R1

O-RING,1.301" ID x 0.07" Width

1-5/16 X 1-7/16 X 1/16

1шт.

10

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 X 1-13/16 X 3/32

1шт.

11

401080R1

PISTON

1шт.

12

405311R1

RING

PISTON SEALING

1шт.

13

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1-3/8 X 1-9/16 X 3/32

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

15

529960R1

STRAINER ELEMENT

1шт.

16

401082R11

PLUG

ASSY, FIXED ORIFICE, AGRICULTURAL MODELS

1шт.

16

535851R11

PLUG

ASSY., INDUSTRIAL MODELS

1шт.

17

388968R1

ELECTRICAL WIRE

WIRE RETAINING

1шт.

401088R91

STRIPPER PACKAGE

PUMP SERVO CYL. O-RING AND SEAL, CONSISTS OF ALL PARTS LISTED BELOW

1шт.

O-RING 379141R1

1шт.

RING 405311R1

1шт.

O-RING 570828R1

1шт.

RING 405310R1

1шт.

O-RING 328138R1

1шт.

O-RING 392385R1

1шт.

RING 396109R1

1шт.

O-RING 369751R1

1шт.

SLEEVE 134630H2

1шт.

O-RING 347070R1

1шт.
