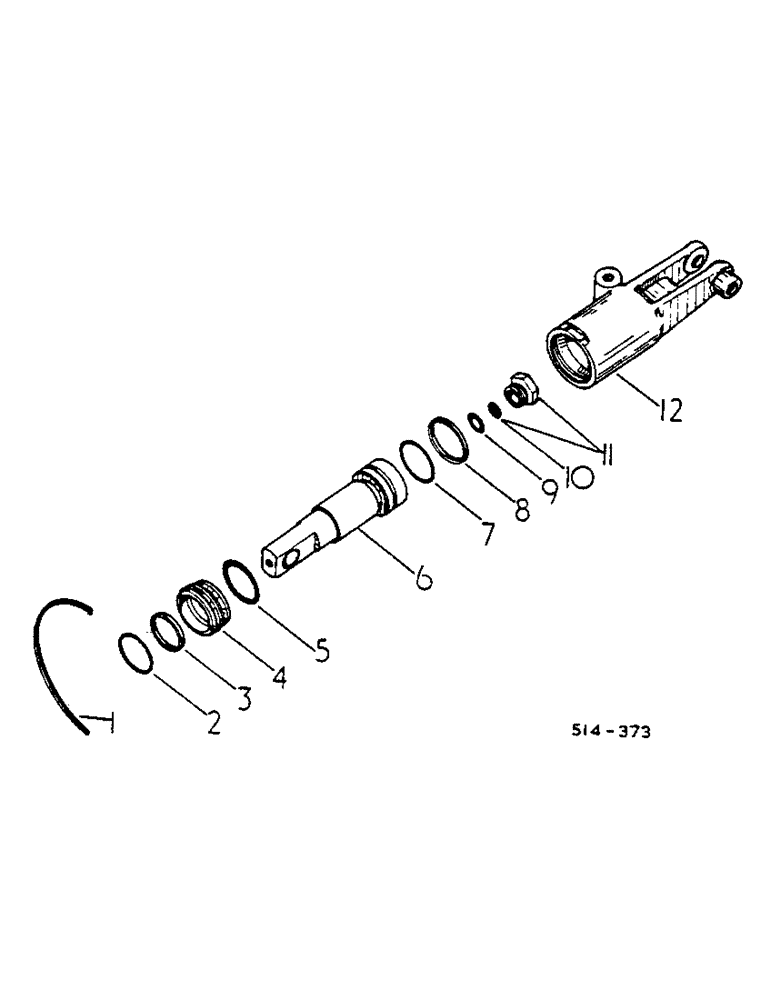

Запчасти Case IH 454 (07-14) - MOTOR SERVO CYLINDER (04) - Drive Train

1

396106R1

ELECTRICAL WIRE

WIRE RETAINING

1шт.

2

382781R1

O-RING,1.737" ID x 0.103" Width

1-3/4 X 1-15/16 X 3/32

1шт.

3

405310R1

RING

GUIDE SEALING INNER

1шт.

4

401091R1

GUIDE

SPARE PART PISTON

1шт.

5

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 X 2-1/8 X 3/32

1шт.

6

401090R1

PISTON

1шт.

7

382781R1

O-RING,1.737" ID x 0.103" Width

2-1/8 X 1-15/16 X 3/32

1шт.

8

405311R1

RING

PISTON SEALING

1шт.

9

365885R1

RING

O, 5/8 OD TUBE

1шт.

10

529376R1

STRAINER ELEMENT

1шт.

11

531285R91

PLUG

ASSY, FIXED ORIFICE

1шт.

12

401089R1

BODY

CYLINDER

1шт.

401093R91

PACKAGE

MOTOR SERVO CYL O-RING AND SEAL, CONSISTS OF ALL PARTS LISTED BELOW

1шт.

RING

1шт.

O-RING 382781R1

2шт.

O-RING 364385R1

1шт.

O-RING 384498R1

1шт.

O-RING 369384R1

1шт.

SLEEVE 134630H1

2шт.

RING 405310R1

1шт.

RING 405311R1

1шт.
