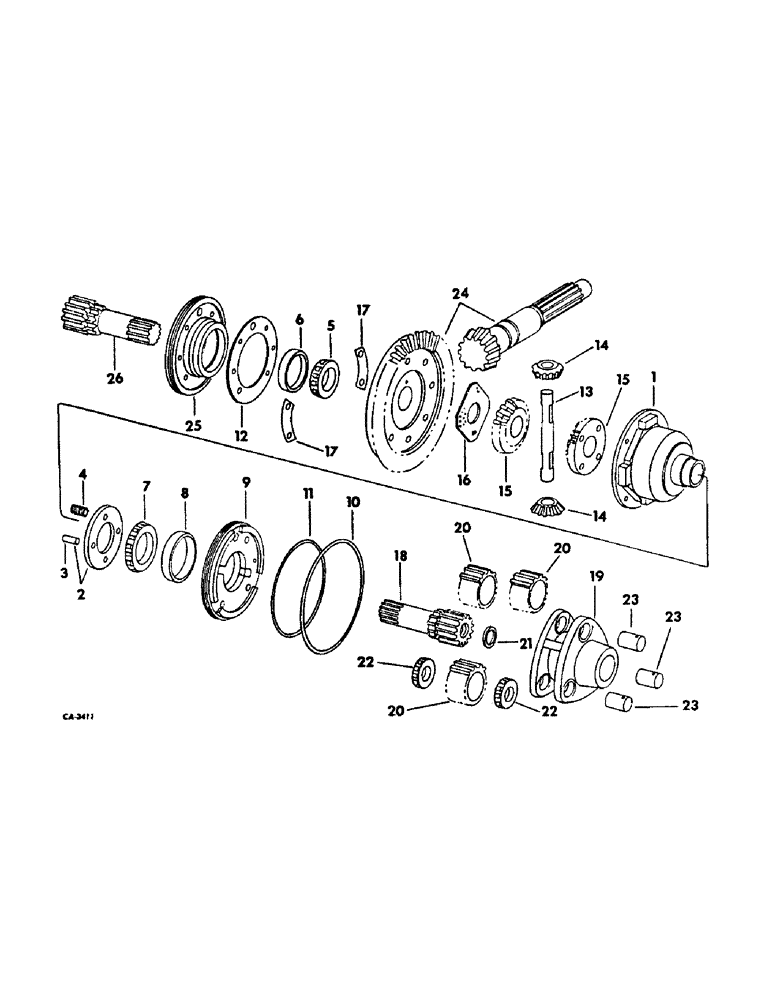

Запчасти Case IH 2500 (07-22) - DRIVE TRAIN, DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

1

399763R1

PINION CARRIER

CARRIER, differential

1шт.

2

399764R11

LOCKING RING

RING ASSY, differential lock

1шт.

3

399765R1

PIN

coupling

4шт.

4

400867R1

SPRING

differential lock

2шт.

5

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

BEARING ASSY, differential LH cone

1шт.

6

105496H

BEARING CUP,97.63mm OD x 19.45mm W

BEARING, differential LH cup

1шт.

7

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

BEARING ASSY, differential cone RH

1шт.

8

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING, differential cup RH

1шт.

9

399770R2

BEARING CARRIER

CARRIER, differential brg RH

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

10

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8, differential brg carrier

2шт.

11

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3/16, differential brg carrier seal

2шт.

12

65419C1

BEARING CARRIER

PACKAGE, differential brg carrier shim, consists of (3) shim .003 (NSS), (3) shim .007 (NSS), (3) shim .012 (NSS), (2) shim .0299

1шт.

13

399804R1

PIN

differential pinion

4шт.

14

399776R1

PINION

GEAR, differential pinion 10 T

4шт.

15

404336R1

PINION

GEAR, differential bevel 20 T

2шт.

16

399778R1

THRUST WASHER

differential bevel gear thrust

1шт.

17

399780R1

SUPPORT, bevel gear screws lock, on orders for support 399780R1, furnish 4 screw, 340340R1 and 4 bolt, 399779R2

1шт.

18

404343R1

SHAFT

planetary drive RH

1шт.

19

114613C1

CARRIER

planet gear, replaces 404344R3

2шт.

20

66128C2

PINION

GEAR, planet 25 T

6шт.

21

65421C2

SHIM KIT

PACKAGE, planet gear shim, consists of (3) shim .049 (NSS), (3) shim .056 (NSS), (3) shim .042

1шт.

22

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, planet shaft

12шт.

23

399812R1

SHAFT

PIN, planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

24

529650R1

GEAR-SET

BEVEL GEARS, matched set, synochromesh transmission tractors w/skidded unit no. 33721 and below and hyrdostatic drive tractors w/skidded unit no. 38994 and below, consists of (1) gear (NSS), (1) shaft, pinion (NSS)

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

4шт.

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT, 1/2-13 x 2-1/8 dowel

4шт.

24

65255C1

GEAR SET

BEVEL GEARS, matched set, not row crop tractors, synchromesh transmission tractors w/skidded unit no. 33722 and above and hydrostatic drive tractors w/skidded unit no. 38995 and above, consists of (1) gear (NSS), (1) shaft, pinion (NSS)

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

4шт.

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT, 1/2-13 x 2-1/8 dowel

4шт.

24

65254C1

SHAFT

BEVEL GEARS, matched set, row crop tractors, synchromesh transmission tractors w/skidded unit no. 33722 and above and hydrostatic drive tractors w/skidded unit no. 38995 and above, consists of (1) gear (NSS), (1) shaft, pinion (NSS)

1шт.

25

399769R2

BEARING CARRIER

CARRIER, differential brg LH

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

26

404342R1

SHAFT

planetary drive LH

1шт.
