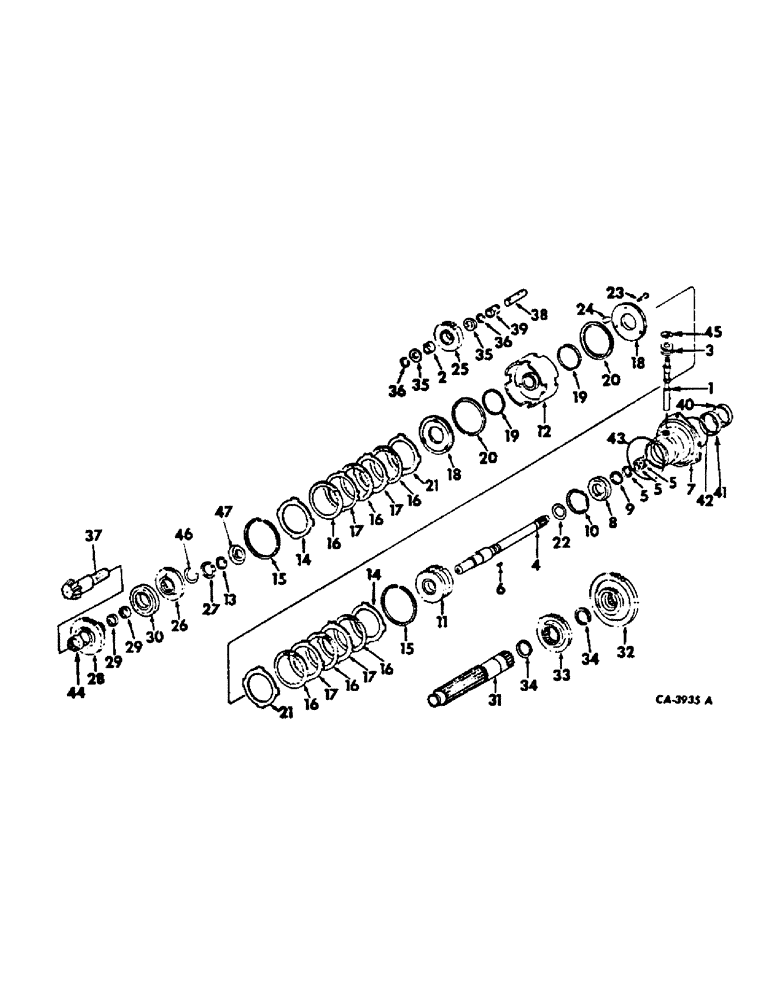

Запчасти Case IH 2500 (07-20) - DRIVE TRAIN, FORWARD-REVERSE, 2500 SERIES A TRACTORS (04) - Drive Train

1

527759R1

NO LONGER SERVICED

STEM, control valve

1шт.

NLS

NO LONGER SERVICED

NUT, 3/8-24 hex. lock, furnish stem 536974R1 and ring 896045R1

1шт.

1

536974R1

STEM

control valve

1шт.

2

551139R91

BEARING, NEEDLE

BEARING, idler shaft needle

1шт.

3

531539R1

COLLAR

control stem

1шт.

4

SHAFT ASSY, clutch, not serviced separately, order package 70014C2

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW, 1/4-20 x 1/4 hex. soc-hd-f pt set, optional w/screw 102569

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex. soc-hd cup pt set

2шт.

5

406275R1

RING

clutch shaft piston

3шт.

6

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff B

1шт.

7

527761R2

NO LONGER SERVICED

CAGE ASSY, IPTO & clutch cup retainer

1шт.

8

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, clutch shaft ball

1шт.

9

3112664R1

SNAP RING

RING, clutch shaft brg outer retaining, replaces 565644R1

1шт.

10

139743R1

RING

clutch shaft brg inner retaining

1шт.

11

527763R3

PINION

GEAR ASSY, drive

1шт.

12

CUP, direct drive clutch, not serviced separately, order package 70014C2

1шт.

13

583976R11

RING, clutch cup retainer snap

1шт.

14

402569R1

PLATE

clutch backing

2шт.

15

401720R1

CIRCLIP

RING, backing plate retainer snap

2шт.

16

PLATE ASSY, clutch driven, not serviced separately, furnish clutch plate service package, 534937R92

8шт.

17

PLATE, clutch separator, not serviced separately, furnish clutch plate service package 534937R92

6шт.

18

527766R1

PISTON

direct drive clutch

2шт.

19

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

clutch piston inner

2шт.

20

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING, clutch piston outer

2шт.

21

402572R1

PLATE

piston backing

2шт.

22

527767R1

THRUST WASHER

WASHER, clutch shaft thrust

1шт.

23

527768R1

BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"

BOLT, fwd-rev piston return

3шт.

65240C1

SQUARE NUT

1/4-28 sq mach screw

3шт.

24

527769R2

SPACER

piston

3шт.

25

527776R1

PINION

GEAR, fwd-ref idler, 23T

1шт.

26

404199R3

SPROCKET ASSY.

CARRIER, direct drive clutch disc

1шт.

27

336000R1

SNAP RING,#175, 1.640", Ext

RING, disc carrier retainer snap

1шт.

28

404200R3

PINION

GEAR, direct drive hub, 28T

1шт.

29

550839R91

BEARING, NEEDLE

BEARING, clutch shaft needle

2шт.

30

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING, direct gear ball

1шт.

31

404104R1

SHAFT

COUNTERSHAFT

1шт.

32

527770R1

GEAR

fwd-rev driven & pump drive 46 & 33T

1шт.

33

527771R1

PINION

GEAR, fwd-rev driven, 31 T

1шт.

34

381486R1

SNAP RING,#187, 1.759", Ext

RING, gear retaining snap

2шт.

35

527772R1

WASHER

fwd-rev idler gear

2шт.

36

362260R1

RING, SNAP

RING, idler gear retainer

2шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

37

529650R91

BEVEL GEARS, matched set, synchromesh transmission tractors w/skidded unit no. 33721 and below and hydrostatic drive tractors w/skidded unit no. 38994 and below, consists of (1) shaft (NSS), (1) gear, pinion (NSS)

1шт.

37

65255C1

GEAR SET

BEVEL GEARS, matched set, not row crop tractors, synchromesh transmission tractors w-skidded unit no. 33722 and above and hydrostatic drive tractors w/skidded unit no. 38995 and above, consists of, (1) shaft (NSS), (1) gear, pinion (NSS)

1шт.

37

65254C1

SHAFT

BEVEL GEARS, matched set, row crop tractors, synchromesh transmission tractors w/skidded unit no. 33722 and above and hydrostatic drive tractors w/skidded unit no. 38995 and above, consist of (1) gear (NSS), (1) shaft, pinion (NSS)

1шт.

38

527774R1

SHAFT

fwd-ref idler

1шт.

39

527775R2

SLEEVE

idler gear

1шт.

18543R1

LOCK PIN,7/32" x 1", Slotted

PIN, 7/32" x 1", Slotted

1шт.

40

398321R91

OIL SEAL

IPTO drive shaft oil, tractors with skidded unit no. 40025 and below

1шт.

40

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

IPTO drive shaft oil, tractors with skidded unit no. 40026 and above

1шт.

41

105758C1

OIL SEAL

clutch shaft oil, replaces 65418C1

1шт.

42

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8

1шт.

43

343942R1

O-RING,5.359" ID x 0.139" Width

5-3/8 x 5-5/8 x 1/8

1шт.

44

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING, clutch shaft needle

1шт.

45

896045R1

SNAP RING,#37, Ext

Used with stem 536974R1 #37, Ext

1шт.

46

70244C1

RING, SNAP

RING, internal snap

1шт.

47

70020C1

SLINGER

direct drive clutch

1шт.

534937R92

PACKAGE, REPAIR

PACKAGE, fwd-rev clutch plate service, consists of (8) plates 533804R1 (NSS), (6) plates 401717R1 (NSS), (2) o-ring 401723R1, (2) o-ring 401724R1

1шт.

70014C2

PACKAGE, REPAIR

PACKAGE, shaft and clutch cup service, replaces 67536C91, consists of (1) shaft 527760R4 (NSS), (2) screw 222386, or screw 102569, (1) cup 70015C1 (NSS), (1) key 124554, (1) ring 583976R1, (1) slinger 70020C1

1шт.
