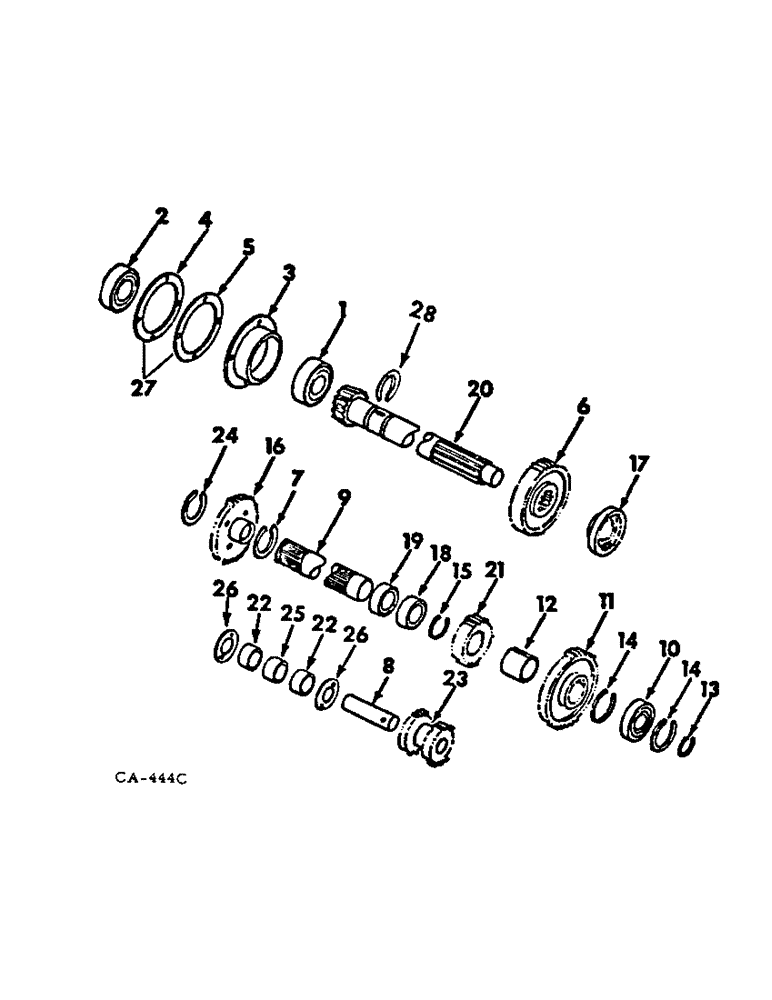

Запчасти Case IH 2500 (07-18) - DRIVE TRAIN, RANGE TRANSMISSION IN REAR FRAME (04) - Drive Train

1

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, main shaft front

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, main shaft rear

1шт.

3

399825R1

BEARING CUP

CAGE, main shaft brg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

4

SHIM, main shaft brg cage, .004, not serviced separately, order ref no. 27

1шт.

5

SHIM, main shaft brg cage, .007, not serviced separately, order ref no. 27

1шт.

6

399462R1

GEAR

fwd reverse sliding, 42 T, synchromesh transmission tractors without foward-reverse

1шт.

6

527773R2

GEAR

hi-lo sliding, 42 T, synchromesh transmission tractors with forward-reverse

1шт.

6

399829R1

GEAR WHEEL

GEAR, hi-lo sliding, 42 T, hydrostatic drive tractors with hand controls

1шт.

6

536911R5

GEAR

hi-lo sliding, 44 T, International 2500 series A tractors w/hydrostatic drive and foot controls

1шт.

7

399837R1

SNAP RING,#118, 1.121", Ext

RING, pump drive gear retainer snap

1шт.

8

399838R3

SHAFT

reverse ilder, synchromesh transmission tractors

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

9

404096R1

SHAFT

COUNTERSHAFT, range transmission

1шт.

10

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BEARING, countershaft front ball

1шт.

11

404097R1

GEAR

constant mesh, 46 T, synchromesh transmission tractors

1шт.

11

404098R1

GEAR

constant mesh, 40 T, hydrostatic drive tractors

1шт.

12

399835R1

BUSHING

countershaft gears

1шт.

13

327068R1

RING, SNAP

RING, countershaft brg ext snap

1шт.

14

399832R1

RING, SNAP

RING, countershaft brg int snap

2шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

RING, lo range driving gear ret snap

1шт.

16

404218R1

GEAR

pump drive, 55 T

1шт.

17

399830R2

COLLAR

hi-speed shift, synchromesh transmission tractors

1шт.

18

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft needle

1шт.

19

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING, pump drive gear

1шт.

20

529650R91

BEVEL GEARS, matched set, synchromesh transmission tractors w/skidded unit no. 33721 and below and hydrostatic drive tractors w/skidded unit no. 38994 and below, consist of (1) shaft (NSS), (1) gear, pinion (NSS)

1шт.

20

65255C1

GEAR SET

BEVEL GEARS, matched set, not row crop tractors, synchromesh transmission tractors w/skidded unit no. 33722 and above and hydrostatic drive tractors w/skidded unit no. 38995 and above, consists of (1) gear (NSS), (1) shaft, pinion

1шт.

20

65254C1

SHAFT

BEVEL GEAR, matched set, row crop tractors, synchromesh transmission tractors w/skidded unit no. 33722 and above and hydrostatic drive tractors w/skidded unit no. 38995 and above, consist of (1) gear (NSS), (1) shaft, pinion (NSS)

1шт.

21

103150C1

PINION

GEAR, lo range driving, 24T, replaces 25T gear, all tractors except International 2500 series A tractors with hydrostatic drive and foot controls

1шт.

21

536910R1

PINION

GEAR, lo-range driving, 24T, international 2500 series A tractors w/hydrostatic drive and foot controls

1шт.

22

550850R91

NEEDLE BEARING

reverse idler gear needle, synchromesh transmission tractors, for service replacement furnish gear 70298C1, shaft 399838R3, two bearing 3113041R91, spacer 3112845R1 and two washers 3122846R1

2шт.

22

3113041R91

ROLLER CAGE BEARING

reverse idler gear needle, synchromesh transmission tractors

2шт.

23

399466R1

GEAR

reverse idler, 20 and 25T, synchromesh transmission tractors, for service replacement furnish gear 70298C1, shaft 399838R3, two bearings 3112844R91, spacer 3112845R1 and two washers 3122846R1

1шт.

23

70298C1

PINION

GEAR, reverse idler, 20 and 24T, replaces 20 & 25 tooth gear, synchromesh transmission tractors

1шт.

24

533266R1

RING, SNAP

RING, IPTO front driven shaft rear snap

1шт.

25

3112845R1

SPACER

idler bearing, synchromesh transmission tractors

1шт.

26

3112846R1

THRUST WASHER

idler bearing, synchromesh transmission tractors

2шт.

27

65423C1

SHIM KIT

PACKAGE, main shaft bearign cage shim, consists of (2) shim .004 (NSS), (1) shim .007 (NSS)

1шт.

28

327058R1

RING, SNAP

RING, countershaft bearing external snap

2шт.
