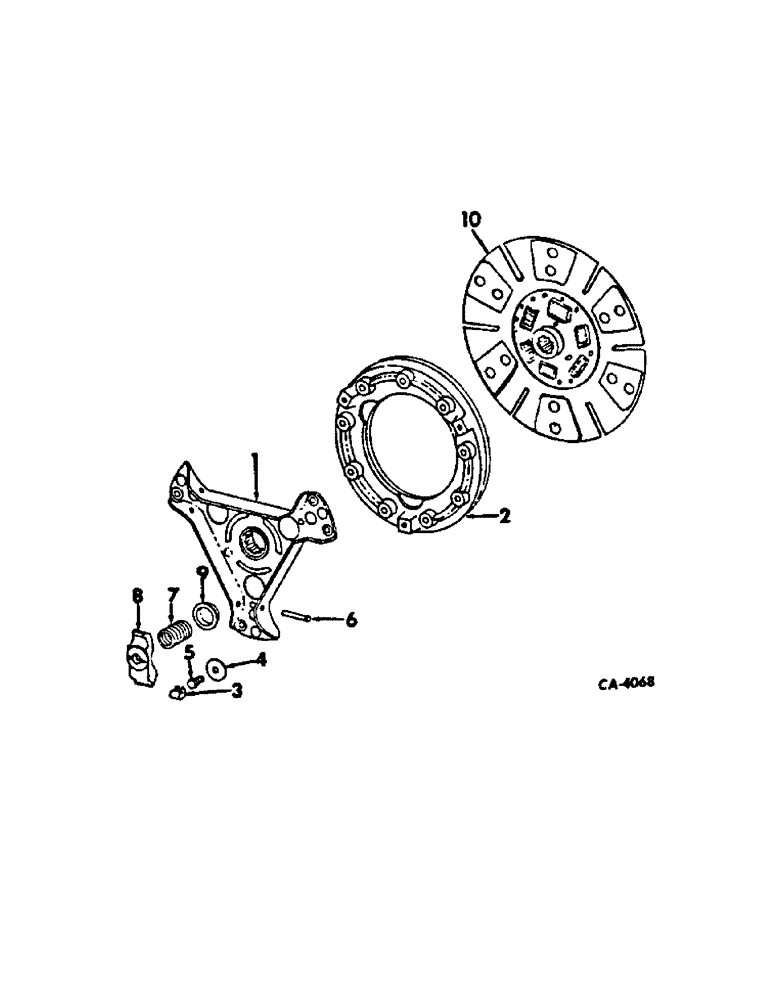

Запчасти Case IH 2500 (07-12) - DRIVE TRAIN, CLUTCH, 2500 SERIES A TRACTORS WITH FORWARD AND REVERSE (04) - Drive Train

70716C1

COVER ASSY

clutch pressure plate, replaces 68211C91, 65212C91, 401477R91, and 529566R91, consists of ref nos 1 thru 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW, 5/16-18 x 3/4 hex-hd cap

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

BRACKET, pressure plate

1шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

2

PLATE, pressure

1шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

3

CLIP, return

3шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

4

WASHER

3шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

5

SCREW, adjusting

3шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

NUT, 5/16-24 hex. jam

3шт.

6

PIN, pivot

3шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

7

SPRING, pressure

3шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

8

LEVER

3шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

9

CUP, spring

3шт.

Not serviced separately, furnish clutch pressure plate cover assy, 70716C1

1шт.

10

70093C91

PLATE

ASSY, clutch driven disc

1шт.
