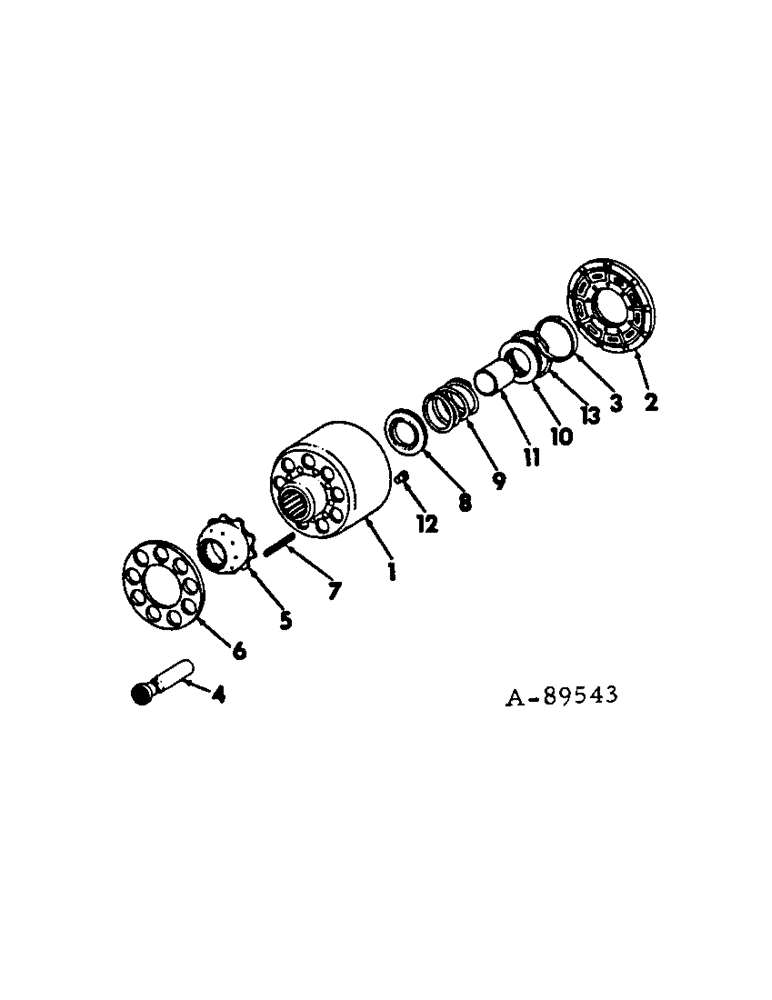

Запчасти Case IH 2500 (07-10) - DRIVE TRAIN, MOTOR CYLINDER BLOCK (04) - Drive Train

PACKAGE, motor cylinder block

1шт.

1

67821C1

BLOCK

ASSY, cylinder, on orders for 405134R1 furnish block 67821C1 and six springs 67822C1

1шт.

2

405141R1

PLATE

bearing

1шт.

3

405140R1

RING

PILOT, bearing plate

1шт.

4

538703R1

PISTON

ASSY, replaces 405131R2

9шт.

5

405132R1

GUIDE

slipper retainer

1шт.

6

405133R1

RETAINER

slipper

1шт.

7

405135R1

SPRING

retainer, used with block 405134R1

9шт.

7

67822C1

SPRING

retainer, used with block 67821C1

6шт.

8

405136R1

SEAT

spring

1шт.

9

532303R2

SPRING

cylinder block

1шт.

10

405139R1

RETAINER

spring

1шт.

11

405137R1

GUIDE

spring

1шт.

12

527636R1

PIN

piston cylinder

1шт.

13

558383R1

SNAP RING,#250, 2.606, Int, Spiral

RING, internal retaining spirolox

1шт.
