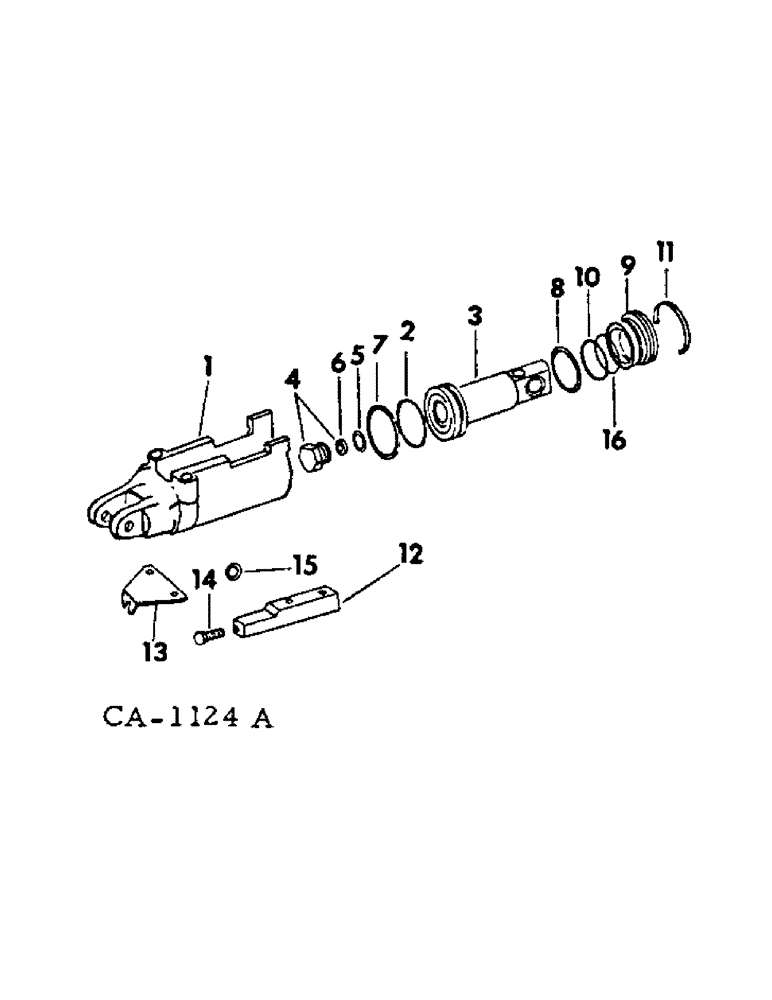

Запчасти Case IH 2500 (07-08) - DRIVE TRAIN, PUMP SERVO CYLINDER (04) - Drive Train

CYLINDER ASSY, pump servo

1шт.

1

401079R1

BODY

1шт.

2

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

3

401080R1

PISTON

1шт.

4

401082R11

PLUG

ASSY, fixed orifice, tractors with hand controls

1шт.

4

535851R11

PLUG

ASSY, fixed orifice, tractors with foot controls

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

6

529960R1

STRAINER ELEMENT

STRAINER

1шт.

7

405311R1

RING

piston sealing

1шт.

8

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32

1шт.

9

401084R1

GUIDE

1шт.

10

405310R1

RING

guide sealing inner

1шт.

11

388968R1

ELECTRICAL WIRE

WIRE, retaining

1шт.

12

401086R1

BLOCK

tractors with hand controls

1шт.

12

401086R11

NO LONGER SERVICED

BLOCK W/PIN, variable orifice adj, tractors with foot controls

1шт.

69786C1

PIN

5/16 x 7/8 dowel

1шт.

13

401087R1

BRACKET

adj block

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

14

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

adj block

1шт.

15

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

16

347070R1

O-RING,1.301" ID x 0.07" Width

1-15/16 x 1-7/16 x 1/16

1шт.

401088R91

STRIPPER PACKAGE

PACKAGE, pump servo cylinder o-ring and seal service, consist of (1) o-ring 379141R1, (1) ring 405311R1, (1) o-ring 570828R1, (1) ring 405310R1, (1) o-ring 328138R1, (1) o-ring 392385R1, (1) ring 396109R1, (1) o-ring 369751R1, (1) sleeve 134630H1, (1) o-r

1шт.
