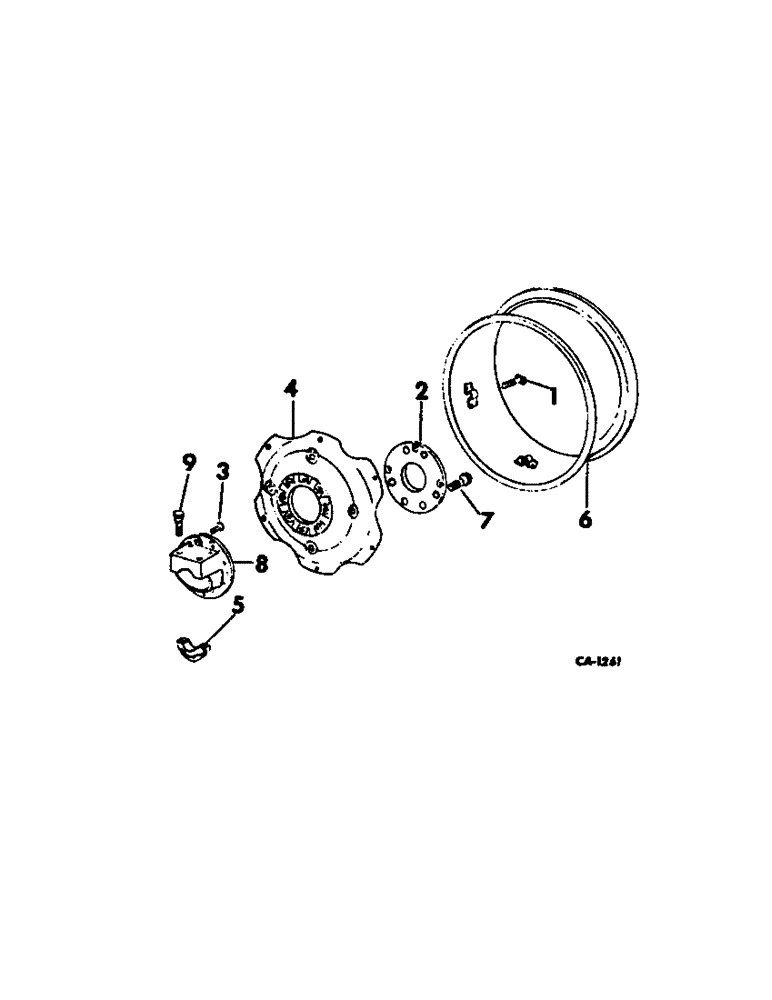

Запчасти Case IH 2500 (15-03) - WHEELS AND TRACTION, REAR WHEELS, ROW CROP TRACTORS Wheels & Traction

1

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

352777R1

NUT

rear wheel rim clamp

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga

12шт.

2

365957R2

FLANGE

rear wheel hub pilot

2шт.

3

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW, pilot flange mounting

8шт.

4

361724R1

WHEEL DISC

WHEEL, disc rear

2шт.

5

389539R1

CLAMP

rear wheel hub

4шт.

6

395856R2

RIM

W/CLAMPS ASSY, rear wheel, DW14-20DC rim for 16.9-30 tire

2шт.

7

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting

16шт.

8

530504R1

HUB

rear wheel

2шт.

9

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

BOLT, hub clamp mounting

8шт.

27549R1

VALVE STEM

Assy, Air-liquid TR-618A

2шт.

417194C1

PLUG

rubber 5/8 rim hole

1шт.
