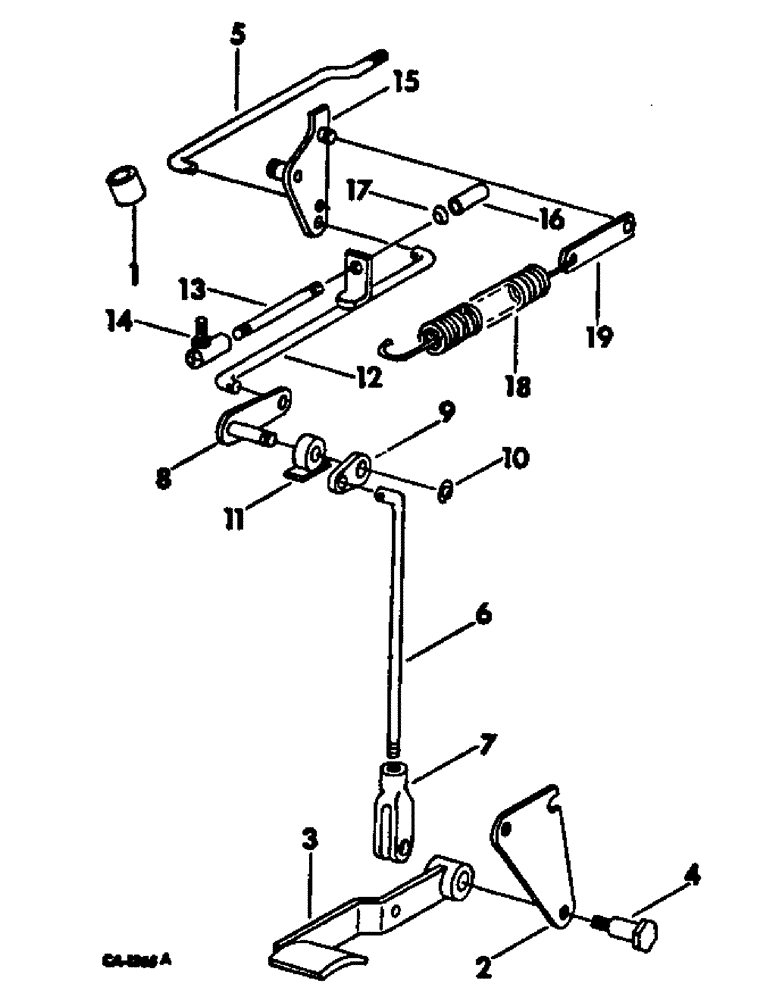

Запчасти Case IH 2500 (12-15) - POWER, FOOT ACCELERATOR, GASOLINE ENGINE TRACTORS Power

1

359033R1

SPACER, tractors w/serial no. 7324 and below

1шт.

2

528754R2

SUPPORT

BRACKET, foot accelerator pedal support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

3

69409C91

PACKAGE

foot pedal accelerator, consists of (1) pedal (NSS), (1) arm (NSS), (1) pad (NSS), (1) hub (NSS)

1шт.

4

532965R3

BOLT,3/8" - 16 x 1.7"

foot accelerator pedal pivot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

5

537596R1

ROD

governor control rear

1шт.

6

528759R3

ROD

foot accelerator pull

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x 1/2 cot.

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

7

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS, 1/4-28 x 1-11/16 adjusting rod end, 574 tractors with serial no. 101180 and below and 2500 series A with serial no. 100026 and below

1шт.

114783

PIN

1/4 x 51/64 rod end

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/18 x 1/2 cot.

1шт.

7

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 x 2 adjusting rod end, 574 tractors with serial no. 101181 and above and 2500 series A with serial no. 100027 and above

1шт.

114783

PIN

1/4 x 51/64 rod end

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x 1/2 cot.

1шт.

8

528760R3

ARM

ASSY, bellcrank

1шт.

9

528764R3

LEVER

bellcrank

1шт.

10

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

11

532967R2

ARM

ASSY, actuating

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

12

528765R2

ROD

ASSY, bellcrank pull

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x 1/2 cot.

2шт.

13

528772R2

ROD

foot accelerator pick-up

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

3шт.

14

109400

STEERING KNUCKLE

JOINT, 1/4-28 ball, optional w/19318R1

1шт.

14

19318R1

BALL JOINT

JOINT, 1/4-28 ball, optional w/109400

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex.

1шт.

15

537592R1

LEVER ASSY, foot accelerator

1шт.

16

537594R1

SPACER

shock absorber

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036 C-Z

1шт.

17

403678R1

WASHER

BALL

1шт.

18

538321R1

SPRING

governor control balance

1шт.

19

532082R1

LINK

governor control balance

1шт.
