Запчасти Case IH 2500 (12-14[1]) - POWER, FUEL SHUT-OFF CONTROLS, DIESEL ENGINE TRACTORS Power

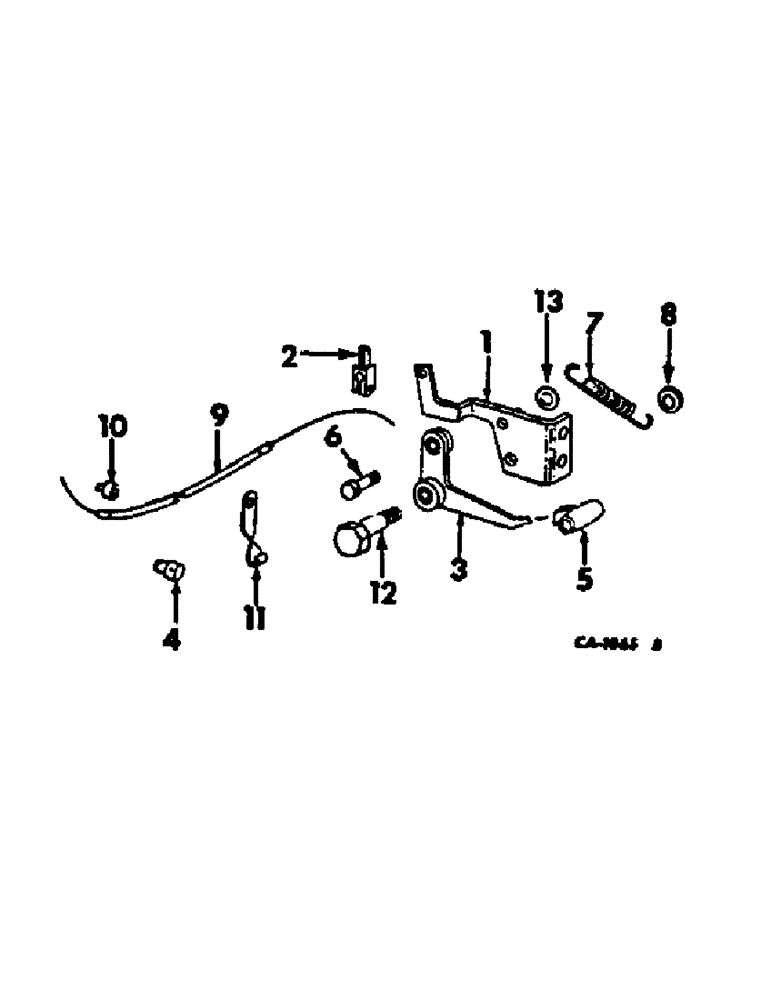

Схема запчастей Case IH 2500 - (12-14[1]) - POWER, FUEL SHUT-OFF CONTROLS, DIESEL ENGINE TRACTORS Power
4
12
6
1
10
2
13
3
7
9
8
5
11

Артикул

Название

Примечание

Количество

1

67286C1

BRACKET

ASSY, fuel shut-off lever, replaces 528992R1, controls, diesel engine tractors

1шт.

372784R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 hex-hd cap, fuel shutoff controls diesel engine tractors

2шт.

2

536852R1

CLAMP

cable swivel, fuel shutoff controls, diesel engine tractors

1шт.

446178

WASHER,#12

1/4 x 1/2 x .036, fuel shutoff controls, diesel engine tractors

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), , Fuel shutoff controls, diesel engine tractors 1/16" x 5/8"

1шт.

454065

SCREW,Hex Hd, #10-32 x 3/4"

10-32 x 3/4 C-Z hex-hd mach, fuel shutoff controls, diesel engine tractors

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, , Fuel shutoff controls, Diesel engine tractors #10

1шт.

453284

NUT,#10-32

10-32 C-Z mach screw, fuel shutoff controls, diesel engine tractors

1шт.

3

531335R1

ARM ASSY.

ARM ASSY, fuel shutoff control, fuel shutoff controls, diesel engine tractors

1шт.

23369R1

HEADED PIN,3/8" x 7/8"

PIN, HEADED, , Fuel shutoff controls, Diesel engine tractors 3/8" x 7/8"

1шт.

648002

KNIFE

1/8" x 3/4", fuel shutoff controls, diesel engine tractors

1шт.

469668R1

WASHER

3/8 x 13/32 x .060 C-Z, fuel shutoff controls, diesel engine tractors

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

8/32 x 5/8 C-Z slt-fil-hd mach, fuel shutoff controls, diesel engine tractors

1шт.

4

396388R1

PIVOT

fuel shut-off lever swivel, shutoff controls, diesel engine tractors

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 x 3/8 C-Z slt-fil-hd mach, fuel shutoff controls, diesel engine tractors

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036, fuel shutoff controls, diesel engine tractors

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x 1/2 cot. fuel shutoff controls, diesel engine tractors

1шт.

5

530118R1

BUTTON

KNOB, fuel shut-off control cable, will work for 528996R1, diesel engine tractors

1шт.

6

528997R1

BRACKET, PIVOT

SWIVEL, fuel shut-off control cable, diesel engine tractor

1шт.

7

528998R2

SPRING

fuel shutoff control cable, diesel engine tractors

1шт.

8

528999R1

CIRCLIP

RETAINER, fuel shut-off control cable spring, diesel engine tractors

1шт.

9

529001R1

CABLE

diesel fuel shut-off control, diesel engine tractors

1шт.

10

677516R1

BUSHING

fuel shut-off control cable, diesel engine tracotrs

1шт.

11

370820R1

CLIP

fuel shut-off control cable, diesel engine tractors

1шт.

Выбрано товаров: 24
