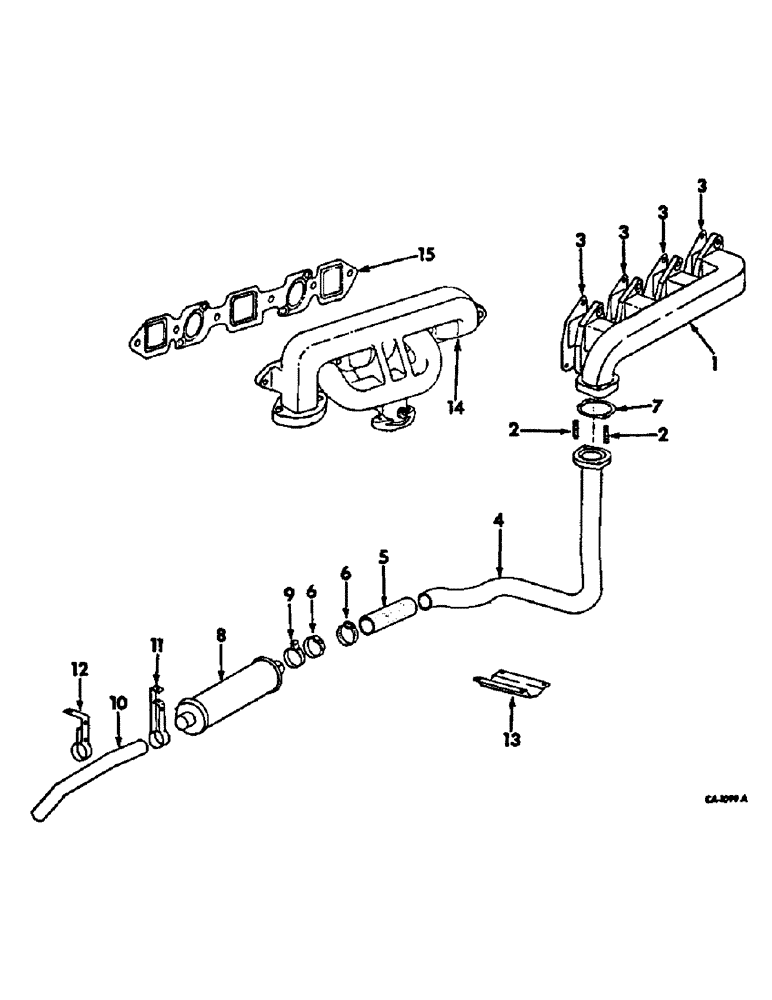

Запчасти Case IH 2500 (12-09) - POWER, UNDERSLUNG EXHAUST Power

1

3055276R12

MANIFOLD ASSY

exhaust, diesel engine tractors

1шт.

2

3055663R1

STUD

3/8-16 x 1-29/64, diesel engine tractors

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

8шт.

3

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold, diesel engine tractors

4шт.

4

401485R12

PIPE ASSY.

PIPE W/SLEEVE, 114614C1 and two clamps, exhaust manifold, diesel engine tractors, consists of ref nos 5 and 6

1шт.

4

401483R12

PIPE

w/sleeve, 114614C1 and two clamps, exhaust manifold, gasoline engine tractors, consists of ref nos 5 and 6

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

114614C1

SHIELD

fiberglass heat, replaces 375561R2

1шт.

6

995220R1

CLAMP

no. 28 hose

2шт.

7

401486R1

MANIFOLD GASKET

exhaust manifold pipe

1шт.

8

401489R2

MUFFLER

1шт.

9

67672C1

CLAMP

muffler

1шт.

Artwork is different, part number is same. note transfered from paper catalog same standard clamp

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

10

401490R2

PIPE

tail

1шт.

11

67672C1

CLAMP

muffler

1шт.

Artwork is different, part number is same. note transfered from paper catalog same standard clamp

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

401492R2

SUPPORT

tail pipe rear

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

1шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

SCREW, 5/8-11 x 1 znd hex-hd cap, w/o three point hitch stabilizer

1шт.

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 znd hex-hd cap, w/three point hitch stabilizer

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , w/o Three point hitch stabilizer 5/8"

1шт.

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

3/8 x 1-1/16 pipe, w/three point hitch stabilizer

1шт.

13

401488R1

GUARD

pipe, diesel engine tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

401487R1

GUARD

pipe, gasoline engine tractors

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

400349R1

MANIFOLD

ASSY, exhaust, gasoline engine tractors

1шт.

15

530682R1

MANIFOLD GASKET

manifold, gasoline engine tractors

1шт.
