Запчасти Case IH 2500 (12-06) - POWER, VERTICAL EXHAUST, DIESEL ENGINE TRACTORS Power

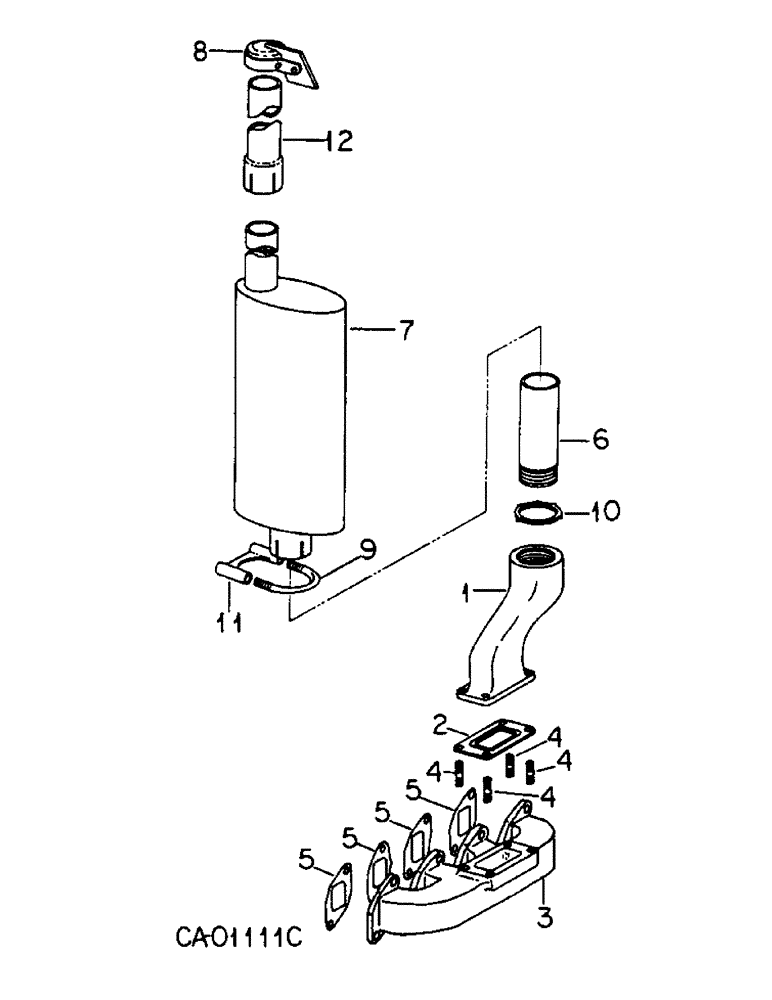

Схема запчастей Case IH 2500 - (12-06) - POWER, VERTICAL EXHAUST, DIESEL ENGINE TRACTORS Power
7
4
5
8
2
5
10
1
4
4
5
11
4
9
3
6
5
12

Артикул

Название

Примечание

Количество

1

3136668R1

ELBOW

exhaust manifold

1шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

3136248R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold elbow

1шт.

3

3136066R12

MANIFOLD ASSY

exhaust

1шт.

4

3055663R1

STUD

manifold

4шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

8шт.

103026

NUT,3/8"-24, G5

8шт.

5

3132434R1

MANIFOLD GASKET,0.5mm Thk

exhaust manifold

4шт.

6

534207R1

PIPE CLAMP

PIPE, exhaust

1шт.

7

403551R1

MUFFLER

replaces 533924R1

1шт.

7

403551R1GV

MUFFLER

Value, Muffler

1шт.

8

533925R1

CAP

rain, used w/muffler 533924R1

1шт.

8

283280R91

CAP

rain, used w/muffler 403551R1

1шт.

9

U-BOLT, saddle, furnish muffler clamp service package 59124C91

1шт.

10

534210R1

NUT, exhaust pipe lock

1шт.

11

SADDLE, exhaust muffler clamp, furnish muffler clamp service package, 59124C91, replaces 403585R1

1шт.

12

66915C1

PIPE

exhaust extension, tractors w/protective frame canopty

1шт.

403826R1

CLAMP

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

Выбрано товаров: 23
