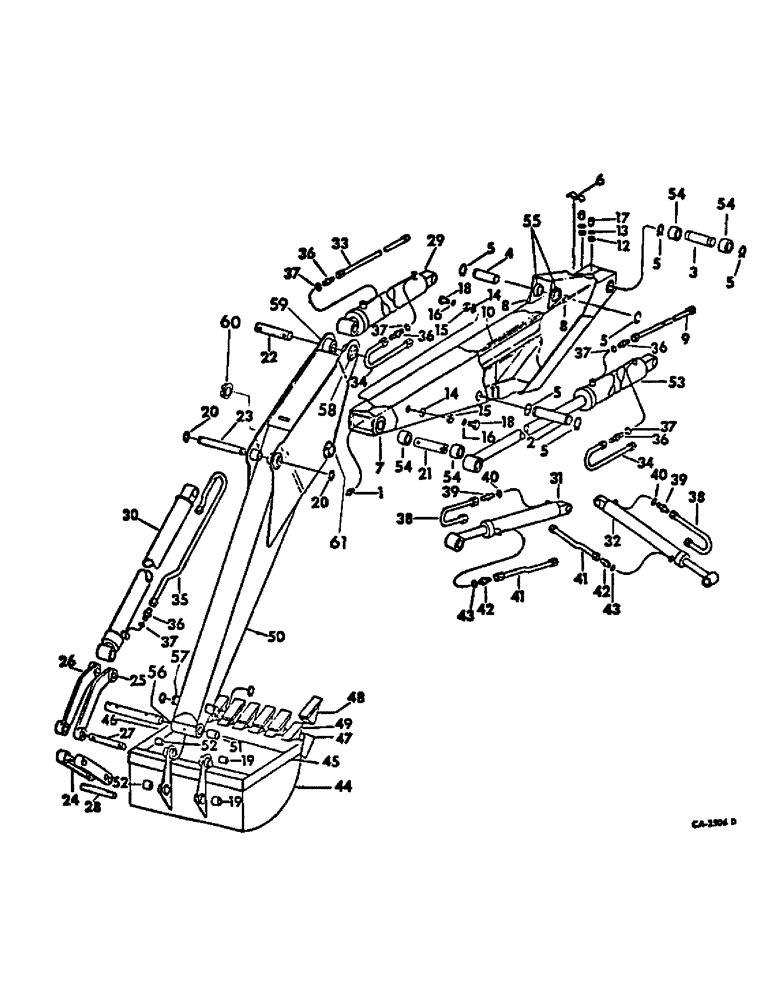

Запчасти Case IH 2500 (17-06) - MOUNTED EQUIPMENT, BACKHOE BOOM, BUCKET, DIPPERSTICK HYDRAULIC CYLINDERS AND CONNECTIONS Mounted Equipment

1

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg lub, boom pivot carrier

2шт.

2

468367R1

PIN

boom cyl upper

1шт.

3

368368R1

PIN, boom to swing mechanism

1шт.

625688R1

WASHER

2-1/32 x 3 x 16 ga (as required)

1шт.

4

468369R1

PIN

shroud

1шт.

5

468371R1

RING

ext retaining, use 2 each on upper boom cyl pin, boom to swing mechansim pin & shroud pin

6шт.

6

486004R1

CLAMP

hydraulic tube

1шт.

7

545839R2

BOOM W/BUSHING, included ref nos. 8, 10 thru 17, 54 and 55

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

8

486476R1

HOOK, transport chain

2шт.

9

481693R11

TUBE ASSY, lift cyl rod end

1шт.

9

488806R1

TUBE

ASSY, rod end lift cyl, 2500 series A tractors w/4-1/2 in. lift cylinder attachment

1шт.

10

545854R1

TUBE

ASSY, boom LH

1шт.

11

545855R1

TUBE

ASSY, boom RH

1шт.

12

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 7/8-14 bulkhead union lock

2шт.

13

138566

WASHER,Int Tooth, 7/8"

7/8 znd int-tooth lock

2шт.

14

471961R1

WASHER, 1-5/16 znd int-tooth lock

2шт.

15

9403298

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, 1-5/16-12 bulkhead union lock

2шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

17

9403373

CAP,37 Degree, 7/8"-14

7/8-14 37 deg hyd flared tube

2шт.

18

9410360

PLUG

7/8-14 str-thd o-ring boss

2шт.

19

547133R1

BLOCK

BOSS, notched

1шт.

19

469663R1

BLOCK

BOSS, notched, for use w/13 inc. bucket

1шт.

20

468283R1

RING

ext retaining

4шт.

21

468287R2

PIN

dipperstick pivot, will work for 545862R1

1шт.

472712R1

BEARING

PIN, 1/2 x 3-9/16 std-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

22

544770R1

PIN

crowd cylinder

1шт.

Q677

PIN

1/2 x 3-3/4 std-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

23

544772R1

SPARE PART

PIN, bucket cylinder

1шт.

24

544773R1

LINK

bucket tilt

1шт.

25

544775R1

LINK

bucket guide LH

1шт.

26

544776R1

LINK

bucket guide RH

1шт.

27

468284R3

PIN

cyl link

1шт.

472712R1

BEARING

PIN, 1/2 x 3-1/2 std-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

27

542664R1

PIN

cyl link, for 13 in. bucket

1шт.

472713R1

PIN

1/2 x 2-9/16 std-hd

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

28

544774R2

PIN

ASSY, cyl link

2шт.

192392

AXLE PIN,3/8" x 2 1/2", Type E

Pin, Grooved, , groove press fit 3/8" x 2 1/2", Type E

2шт.

472713R1

PIN

1/2 x 2-9/16 std-hd

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

29

545384R91

SPARE PART

CYLINDER ASSY, differstick, for components see list of parts under details of hydraulic cylinders

1шт.

30

544907R91

CYLINDER ASSY, bucket, for components see list of parts under details of hydraulic cylinder

1шт.

31

385613R93

CYLINDER ASSY, stabilizer RH, for components see list of parts under details of hydraulic cylinders

1шт.

32

385612R93

CYLINDER ASSY, stabilizer LH, for components see list of parts under details of hydraulic cylinders

1шт.

33

546028R1

TUBE

ASSY, dipperstick cyl rod end

1шт.

34

481694R11

TUBE

ASSY, lift cyl hd end

2шт.

35

546030R1

TUBE

ASSY, bucket cyl rod end

1шт.

36

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

3шт.

37

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

3шт.

38

474285R11

TUBE ASSY, stabilizer cyl frt

1шт.

39

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel

2шт.

40

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

41

474286R11

TUBE ASSY, stabilizer cyl rear

2шт.

42

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel

2шт.

43

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

44

BUCKET, serviced only as a machine attachment

1шт.

45

468313R1

BAR

right side cutting, for 16, 18, 20, 22, 24, 30 and 36 in. bucket

1шт.

45

486922R1

BAR, right side cutting, for 24, 30 and 36 in, heavy duty bucket

1шт.

45

490096R1

BAR, right side cutting, for 24 in. high capacity heavy duty bucket

1шт.

46

468312R1

BAR

left side cutting, for 16, 18, 20, 22, 24, 30 and 36 in. bucket

1шт.

46

486921R1

BAR, left side cutting, for 24, 30 and 36 in. heavy duty bucket

1шт.

46

490095R1

BAR, left side cutting, for 24 in. high capacity heavy duty bucket

1шт.

47

468764R1

BLADE, front cutting, for 13 in. bucket

1шт.

47

483615R1

BLADE, front cutting, for 16 in. bucket

1шт.

47

468758R1

BLADE, front cutting, for 18 in. bucket

1шт.

47

483621R1

BLADE, front cutting, for 20 in. bucket

1шт.

47

483627R1

BLADE, front cutting, for 22 in. bucket

1шт.

47

468310R1

BLADE, front cutting, for 24 in. bucket

1шт.

47

486919R1

BLADE, front cutting, for 24 in. high capacity heavy duty and heavy duty bucket

1шт.

47

472975R1

BLADE, front cutting, for 30 in. bucket

1шт.

47

486928R1

BLADE, front cutting, for 30 in. heavy duty bucket

1шт.

47

468770R1

BLADE, front cutting, for 36 in. bucket

1шт.

47

480590R1

BLADE, front cutting, for 36 in. treching bucket

1шт.

47

486933R1

BLADE, front cutting, for 36 in. heavy duty bucket

1шт.

48

468733R1

PRONG

TOOTH, point, 3 used for 13 in., 4 used ofr 16, 18 and 20 in. 5 used for 30 in., 7 used for 36 in. buckets

1шт.

48

485353R1

TOOTH

POINT, tooth, heavy duty, 4 used for 16, 18, 20 and 24 in. 5 used for 22 and 24 in., 6 used for 30 in., 7 used for 36 in. buckets

1шт.

48

532948R1

POINT

tooth, 4 used 24 in. heavy duty bucket, 5 used 30 in. heavy duty bucket and 24 in. high capacity heavy duty bucket, 6 used 36 in. heavy duty bucket

1шт.

486914R1

PIN

tooth lockpin, 1 per tooth

1шт.

48

540085R1

POINT, long rock, 4 used 24 in. heavy duty bucket, 5 used 30 in. heavy duty bucket, 6 used 36 in. heavy duty bucket

1шт.

48

103659C1

POINT

star, 4 used 24 in. heavy duty bucket, 5 used 30 in. heavy duty bucket, 6 used 36 in. heavy duty bucket, for use in severe digging conditions

1шт.

48

544872R1

POINT, side tooth, 4 used for 16, 18, 20 in., 5 used for 22 and 24 in., 6 used for 30 in., 7 used for 26 in.

1шт.

48

544873R1

POINT, wide tooth, 4 used 24 in. heavy duty bucket, 5 used 30 in. heavy duty bucket and 24 in. high capacity heavy duty bucket, 6 used in. heavy duty bucket

1шт.

49

468314R1

SHANK

tooth, 3 used for 13 in., 4 used for 16, 18 and 20 in., 5 used for 22 and 24 in., 6 used for 30 in., 7 used 36 in. buckets

1шт.

49

547182R1

SHANK, tooth, 4 used 24 in. heavy duty bucket, 5 used 30 in. heavy duty bucket and 24 in. high capacity heavy duty bucket, 6 used 36 in. heavy duty bucket

1шт.

50

545856R1

DIPPERSTICK ASSY

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

9шт.

51

468280R1

BUSHING

link pivot

2шт.

52

547132R1

PIVOT

BOSS, bucket pivot

2шт.

52

468316R1

BLOCK

BOSS, bucket pivot, for use w/13 in. bucket

4шт.

53

385616R93

CYLINDER ASSY, lift, for components see list of parts under details of hydraulic cylinders

1шт.

53

399707R93

CYLINDER ASSY, lift, 2500 series A tractors with lift cylinder attachment see list of parts under details of hydraulic cylinders

1шт.

54

468366R1

BUSHING

boom pivot carrier

4шт.

55

468364R1

BLOCK

BOSS, shroud

2шт.

56

468279R1

TUBE

1шт.

57

544767R1

SHAFT

bucket link pivot

1шт.

58

544748R1

BLOCK

BOSS, crowd cyl pivot

1шт.

59

544747R1

BLOCK

BOSS, crowd cyl pivot

1шт.

60

468277R1

BOSS, Serial Range: boom-dipperstick

1шт.

61

61145C1

BOSS, Serial Range: boom-dipperstick

1шт.
