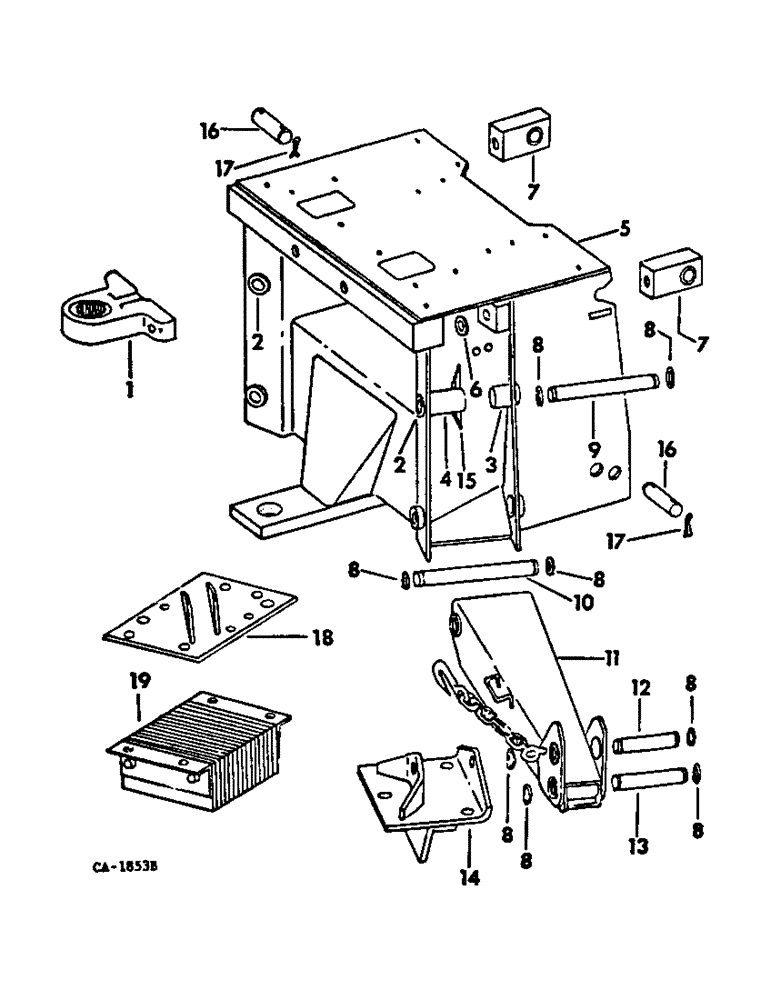

Запчасти Case IH 2500 (17-05) - MOUNTED EQUIPMENT, BACKHOE MAIN FRAME, STABILIZER AND PADS Mounted Equipment

1

545214R91

BASE

MOUNT W/PILOTS, top swing

1шт.

289757R1

BOLT (SPREADER),Hex, 7/8" - 9 x 4 1/4", Gr 8

SCREW, 7/8-9 x 4-1/4 type 8 hex-hd

1шт.

384697R1

WASHER

.906 x 1-75 x 1.64

4шт.

19925R1

NUT,7/8"-9, G8

7/8-9 hex

2шт.

2

468385R1

BOSS, stabilizer pivot

4шт.

3

468386R1

BOSS, stabilizer cyl rear

2шт.

4

468387R1

BOSS, stabilizer cyl front

2шт.

5

492573R2

FRAME ASSY, backhoe main

1шт.

6

470459R1

WASHER, 1-1/6 x 2 x 10 ga

2шт.

7

540966R1

LUG

maniframe mounting

2шт.

21305R1

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

SCREW, 1-8 x 3-1/2 type 8 hex-hd cap

2шт.

8

468283R1

RING

external retaining

16шт.

9

468638R2

PIN, stabilizer, Serial Range: cyl-mainframe

2шт.

10

468635R2

PIN, Serial Range: stabilizer-mainframe

2шт.

11

468655R14

STABILIZER ASSY, right

1шт.

11

468656R14

STABILIZER, left

1шт.

12

468637R1

PIN, Serial Range: stabilizer-cylinder

2шт.

13

468636R1

PIN, stabilizer to pad assy

2шт.

14

468392R11

PAD, stabilizer

2шт.

15

471402R1

GUSSET, stabilizer pivot to main frame

2шт.

16

543330R1

PIN, mainframe locking

2шт.

17

21656R1

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

4шт.

18

469103R92

PAD ASSY, stabilizer sod LH

1шт.

18

469104R92

PAD ASSY, stabilizer sod RH

1шт.

19

544015R1

PAD ASSY, street

2шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

8шт.

2753924R1

PRODUCT GRAPHIC, number plate identification

1шт.

142862

SCREW,Type U Metallic, Rnd Hd, #4 x 1/4"

no. 4 x 1/4 rd-hd blunt metal

2шт.
