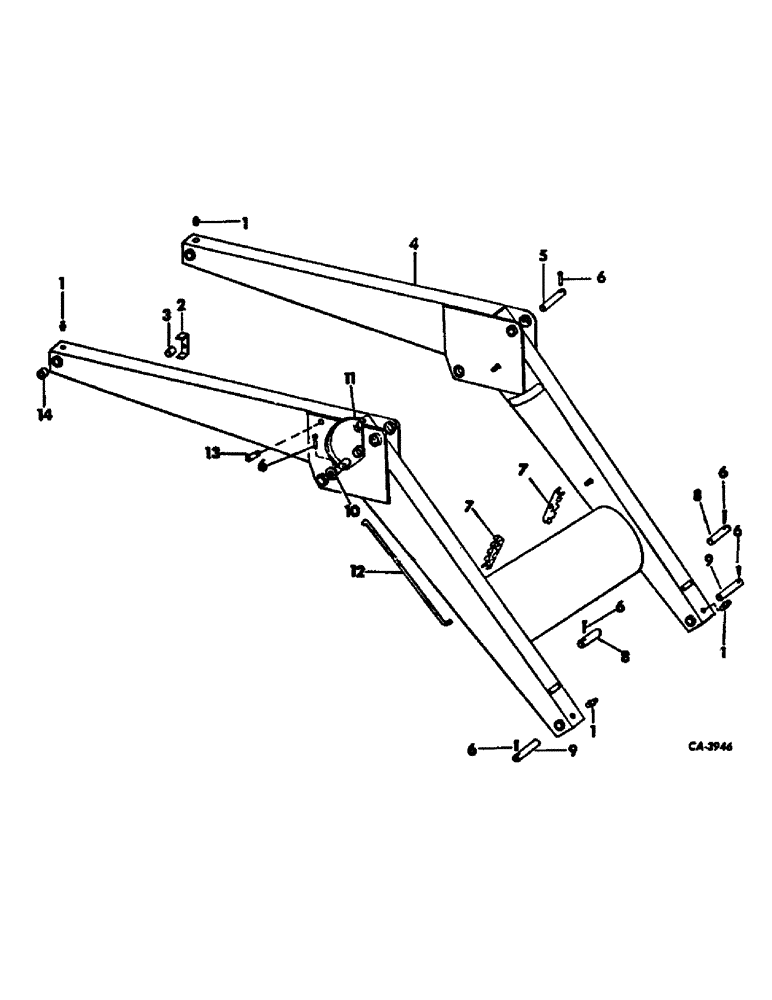

Запчасти Case IH 2500 (17-01) - MOUNTED EQUIPMENT, LOADER BOOM AND CONNECTIONS, 2050 SERIES A Mounted Equipment

1

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str drive type lub

4шт.

2

467193R1

CLAMP, tube

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 1-3/4 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

WASHER, 5/16 C-Z med lock

1шт.

3

M77214

SPACER, tube

1шт.

4

544545R3

BOOM W/BUSHING

1шт.

18252R1

NUT,5/16"-18, GB

5/16-18 hex. nylon insert

4шт.

5

61073C1

AXLE PIN

PIN, subframe to lift cyl and bucket

1шт.

6

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-13/16 dld-std-hd

12шт.

12235R1

1/8" x 5/8", self-opening 1/8" x 5/8"

1шт.

7

467192R1

CHANNEL

CLAMP, tube

3шт.

8

61073C1

AXLE PIN

PIN, lift and bucket, Serial Range: cyl-boom

3шт.

9

61074C1

PIN

bucket and, Serial Range: subframe-boom

6шт.

10

61075C1

SHAFT ASSY

1шт.

11

59796C1

SECTOR

indicator

1шт.

12

59794C1

ROD, bucket link

1шт.

59795C1

NUT, spring push on

3шт.

13

405533R1

PIN, bucket indicator

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

14

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

loader boom

8шт.
