Запчасти Case IH 2500 (06-07) - COOLING, HEAVY DUTY CAST GRILLE, INTERNATIONAL 2500 SERIES A WITH LOADER OR HEAVY DUTY FRONT AXLE Cooling

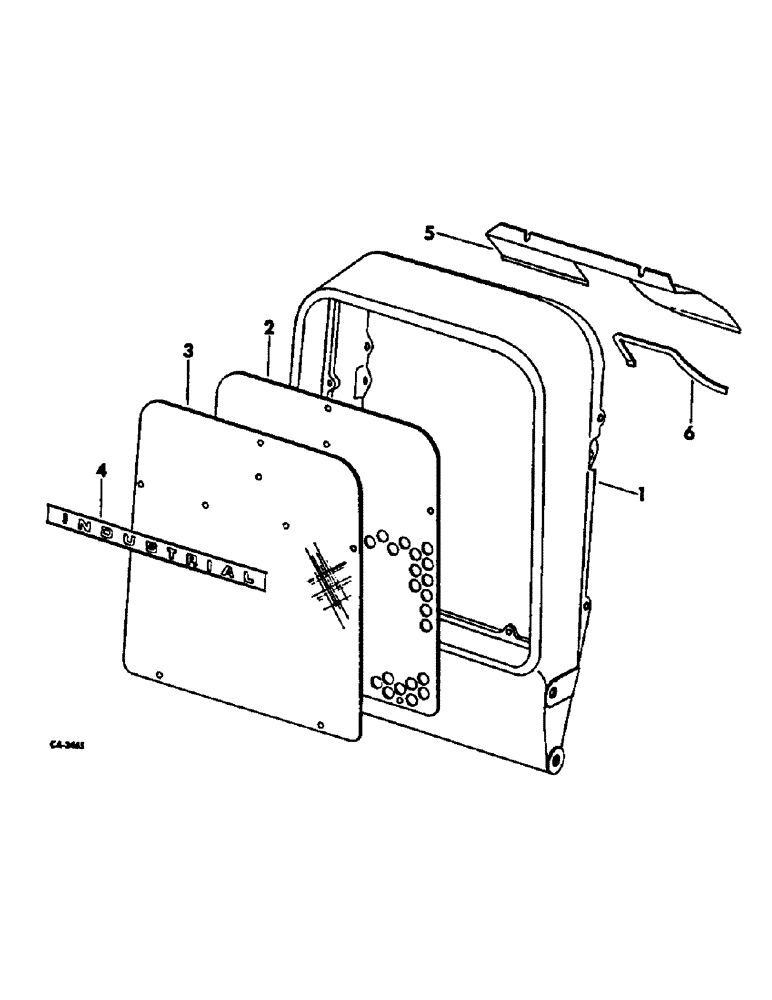

Схема запчастей Case IH 2500 - (06-07) - COOLING, HEAVY DUTY CAST GRILLE, INTERNATIONAL 2500 SERIES A WITH LOADER OR HEAVY DUTY FRONT AXLE Cooling
2
3
5
4
1
6

Артикул

Название

Примечание

Количество

1

537352R1

HOUSING, heavy duty grille

1шт.

2

537354R1

GRILLE

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

3

537356R1

SCREEN, grille

1шт.

4

537359R1

PRODUCT GRAPHIC

Industrial name plate

1шт.

5

537361R1

BAFFLE, air

1шт.

21744R1

HEX SOC SCREW,5/16"-18 x 1/2"

5/16-18 x 1/2 znd hex-soc-hd cap

2шт.

95-11034

WASHER,1/4"

11/32 plain flat

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

530854R1

MOLDING

MOULDING, edge

1шт.

2751846R1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH emblem, optional w/2751844R1

1шт.

2751844R1

PRODUCT GRAPHIC

IH emblem, optional w/2751846R1

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.

19298R1

LOCK WASHER

WASHER, no. 10 cap reg lock

2шт.

537362R1

PLATE

ASSY, International name

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

103088

NUT,#10-32

10-32 hex. mach screw

2шт.

Выбрано товаров: 17
