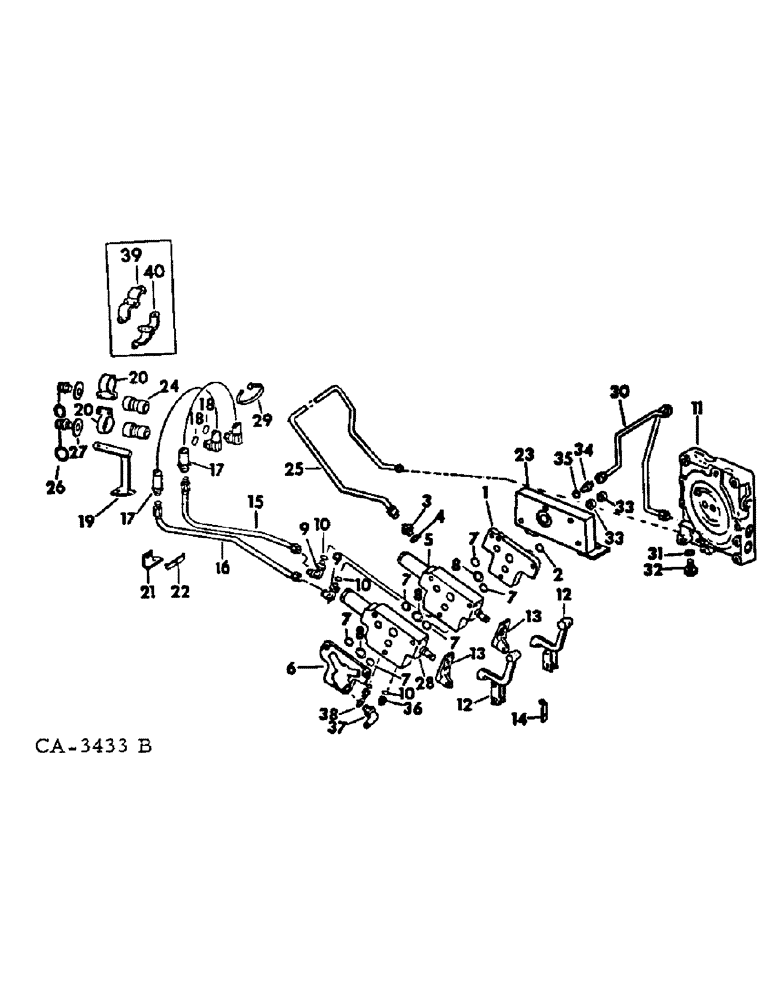

Запчасти Case IH 2500 (10-38) - HYDRAULICS, AUXILIARY VALVES AND TUBES, SERIAL NO. 113209 AND BELOW (07) - HYDRAULICS

SERVICE PARTS FOR SINGLE AUXILIARY HYDRAULIC VALVE AND MANIFOLD ATTACHMENT, for tractors equipped with hydraulic draft control, consists of all parts marked unit A

1шт.

SERVICE PARTS FOR SINGLE AUXILIARY HYDRAULIC VALVE AND MANIFOLD ATTACHMENT, for tractors equipped with 1850 or 2050A loaders, consists of all parts marked unit B

1шт.

SERVICE PARTS FOR SINGLE AUXILIARY HYDRAULIC VALVE AND MANIFOLD ATTACHMENT, for tractors equipped with flat plate rear frame cover, consists fo all parts marked unit C

1шт.

530612R91

PARTS ACCESSORY, single auxiliary hydraulic valve, for tractors equipped with hydraulic draft control, consists of all parts marked unit D

1шт.

67282C91

PARTS ACCESSORY, single auxiliary hydraulic valve, for tractors equipped with flat plate rear fram cover, consists of all parts marked unit E

1шт.

530613R91

PARTS ACCESSORY, rear manifold, for use with first valve, consists of all parts marked unit F

1шт.

530616R91

PARTS ACCESSORY, second auxiliary hydraulic valve, for tractors equipped with first valve, consists of all parts marked unit G

1шт.

1

530209R1

BLOCK, control valve transfer, units A, B, C, D, and E

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

2

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 1-7/16 x 3/32, units A, B, C, D, and E

1шт.

3

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, units A, B, C, D, and E

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units A, B, C, D, and E

1шт.

5

529912R92

VALVE

ASSY, hyd open center control, units A, B, C, and E, for components see list of parts under details hydraulic control valve

1шт.

6

376023R4

COVER

hyd open center control valve, units A, B, C, D, and E

1шт.

6

470603R4

MANIFOLD

COVER, hyd open center control valve, unit B

1шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8-16 x 3-3/8 hex-hd cap

2шт.

450517

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5

SCREW, 3/8-16 x 4-3/4 hex-hd cap

1шт.

7

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, 4 for units A, B, C, D, and E, 6 for units G

1шт.

8

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, 2 for units A, B, C, D, and E, 3 for unit G

1шт.

9

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, replaces tee 9411132 and cap, 9403373, 2 for units A, B, C, and F

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/332, 2 for units A, B, C, D, E, F, & G

1шт.

11

57714R93

VALVE ASSY, multiple control, unit C, for components see list of parts under details of multiple control valve

1шт.

12

530210R1

HANDLE

auxiliary hyd valve control, units A, B, C, D, E, and G

1шт.

16811R1

PIN, 1/2 x 1-11/16 rod end

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, 1/8 x 3/4 cot.

2шт.

13

467948R1

BRACKET

auxiliary hyd valve control handle, units A, B, C, D, E, and G

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

530211R1

BAR, auxiliary hyd valve float lockout, units A, B, C, D, E, and G

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Float lockout bar Hex Flg, 5/16"-18 x 1/2", Serr

1шт.

15

535296R1

TUBE

ASSY, rear outlet raise, units A, B, C, and F

1шт.

16

535297R1

TUBE

ASSY, rear outlet lower, units A, B, C, and F

1шт.

17

535302R1

HOSE

ASSY, rear outlet, 2 for unit A, B, C, and F

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 2 for units A, B, C, and F

1шт.

19

535298R1

SUPPORT

BRACKET ASSY, rear manifold mounting, units A, B, C and F

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap, 2 for units A, B, and f

1шт.

25673R1

WASHER,17/32" x 1 1/16" x .095", HDN

17/32 x 1-1/16 x .095, 2 for units A, B, and F

1шт.

20

3114106R1

CLAMP

mounting, 2 for units A, B, C and F

1шт.

21

535300R1

BRACKET

reat outlet tube, units A, B, C, and F

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap, units A, B and F

1шт.

22

535301R1

CLAMP

rear outlet tube, units A, B, C, and F

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" znd hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

23

67294C1

PLATE ASSY, auxiliary valve mounting, units C and E

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self-sealing female straight thread, 2 units A, B, C and F

1шт.

25

530222R1

TUBE

ASSY, auxiliary hyd valve return, unit D

1шт.

25

66761C1

TUBE ASSY.

TUBE ASSY, draft control return, units C and E

1шт.

26

401757R11

PLUG

W/WASHER, 401758R1, coupling dust, 2 for units A, B, C and F

1шт.

27

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

dust plug, 2 for units A, B, C and F

1шт.

28

529912R92

VALVE

ASSY, hyd open center control, unit G, for components see list of parts under details of hydraulic control valve

1шт.

381781R1

BOLT,Hex, 3/8" - 16 x 5 3/8", Gr 8

SCREW, 3/8-16 x 5-3/8 hex-hd cap

2шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

SCREW, 3/8-16 x 6-3/4 hex-hd cap

1шт.

29

306132R1

STRAP, hose, units A, B, C and F

1шт.

30

67298C1

TUBE

ASSY, auxiliary valve supply, units C and E

1шт.

31

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, unit E

1шт.

32

399858R92

VALVE

ASSY, pilot relief, 2500 PSI, unit E

1шт.

33

401941R1

SPACER

auxiliary valve mounting plate, 2 for units C and E

1шт.

34

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, units C and E

1шт.

35

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, units C and E

1шт.

39

9410360

PLUG

7/8-14 C-Z str thd o-ring boss, 2 for units D, E and G

1шт.

37

9411108

ELBOW,45 Degree, 1 3/16"-12 x 1 3/16"-12, 37 Degree

1-3/16, 12 C-Z 37 deg hyd flared tube adju str thd 45 deg, unit B

1шт.

38

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, unit B

1шт.

39

371115R1

CLAMP

hydraulic self-sealing, serial no. 100000 and below, units A, B, C, and F

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 znd hex-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

40

371114R1

CLAMP

FRAME, hyd self-sealing coupling, serial no. 100000 and below, units A, B, C and F

1шт.
