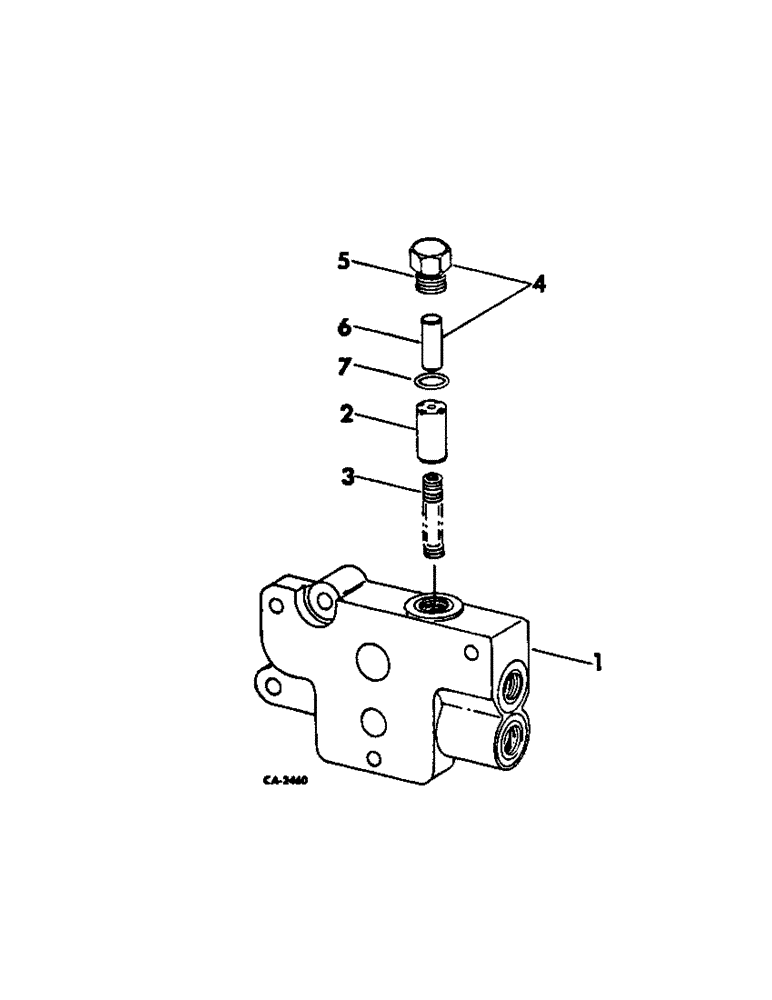

Запчасти Case IH 2500 (10-28[1]) - HYDRAULICS, FLOW DIVIDER VALVE, TRACTORS WITH LOADER AND/OR MOWER (07) - HYDRAULICS

536698R91

VALVE ASSY, flow divider

1шт.

1

BODY, flow divider, not serviced separately, furnish valve assy 536698R91

1шт.

2

SPOOL, flow divider, not serviced separately, furnish valve assy 536698R91

1шт.

3

536701R1

SPRING, flow divider

1шт.

4

536702R1

STOP ASSY, flow divider, not serviced separately, furnish stop assy 536702R1

1шт.

6

PIN, 1/2 x 1-1/4 dowel, not serviced separately, furnish stop assy 536702R1

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.
