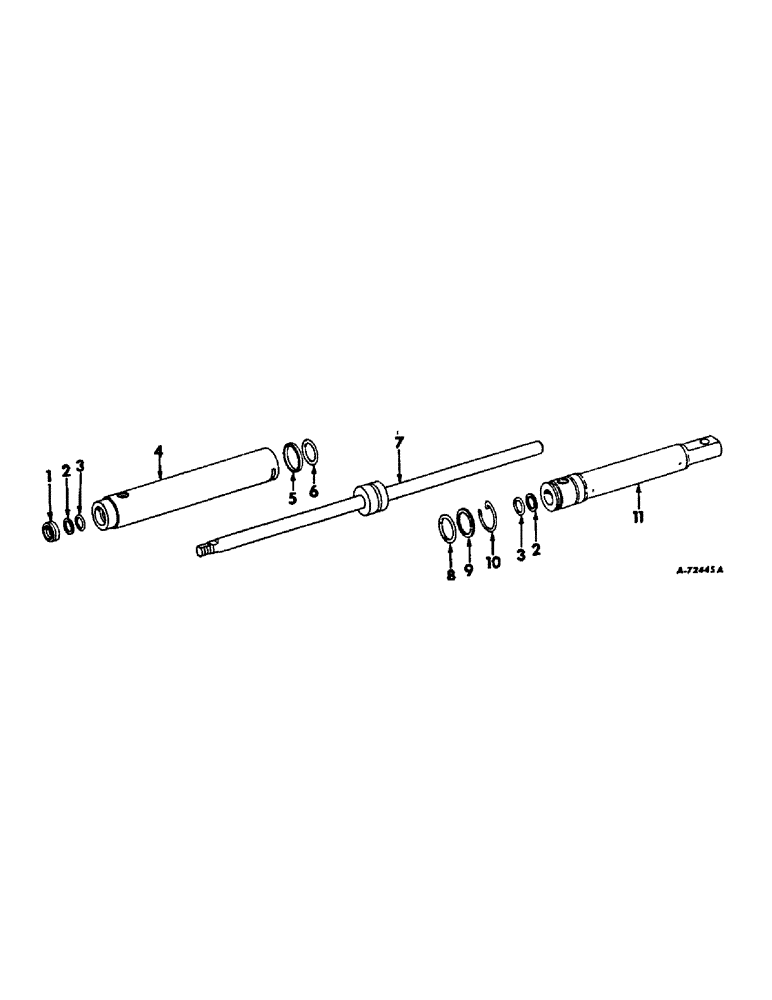

Запчасти Case IH 2500 (10-14) - HYDRAULICS, POWER STEERING CYLINDER, INTERNATIONAL 2500 SERIES A TRACTORS W/ CAST I BEAM FRONT AXLE (07) - HYDRAULICS

378580R91

STEERING CYLINDER

CYLINDER ASSY, power steering

1шт.

1

378587R91

OIL SEAL

scraper oil

1шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

back-up

2шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8

2шт.

4

378590R11

TUBE,10.7" Length

ASSY, power steering cylinder

1шт.

5

378586R1

RING,51.1mm ID x 54.66mm OD x 3.56mm Thk

piston

1шт.

6

290787R1

O-RING, 1-3/4 x 2 x 1/8

1шт.

7

378582R11

ROD

ASSY, piston

1шт.

8

21924R1

O-RING,1.859" ID x 2.137" OD x 0.139"

1-7/8 x 2-1/8 x 1/8

1шт.

9

378588R1

BACK-UP RING,48.31mm ID x 54.36mm OD x 1.14mm Thk

WASHER, teflon back-up

1шт.

10

378585R1

SPOKE

RETAINER, cylinder end

1шт.

11

378589R21

HEAD

ASSY, front

1шт.

386693R91

SEAL KIT

PACKAGE, hydraulic cylinder service, consists of (2) o-ring 380794R1, (2) washer 379571R1, (1) seal 378586R1, (1) o-ring 290787R1, (1) o-ring 21924R1, (1) washer 378588R1, (1) wiper 378587R91

1шт.
