Запчасти Case IH 2500 (08-34[1]) - ELECTRICAL, HORN (06) - ELECTRICAL

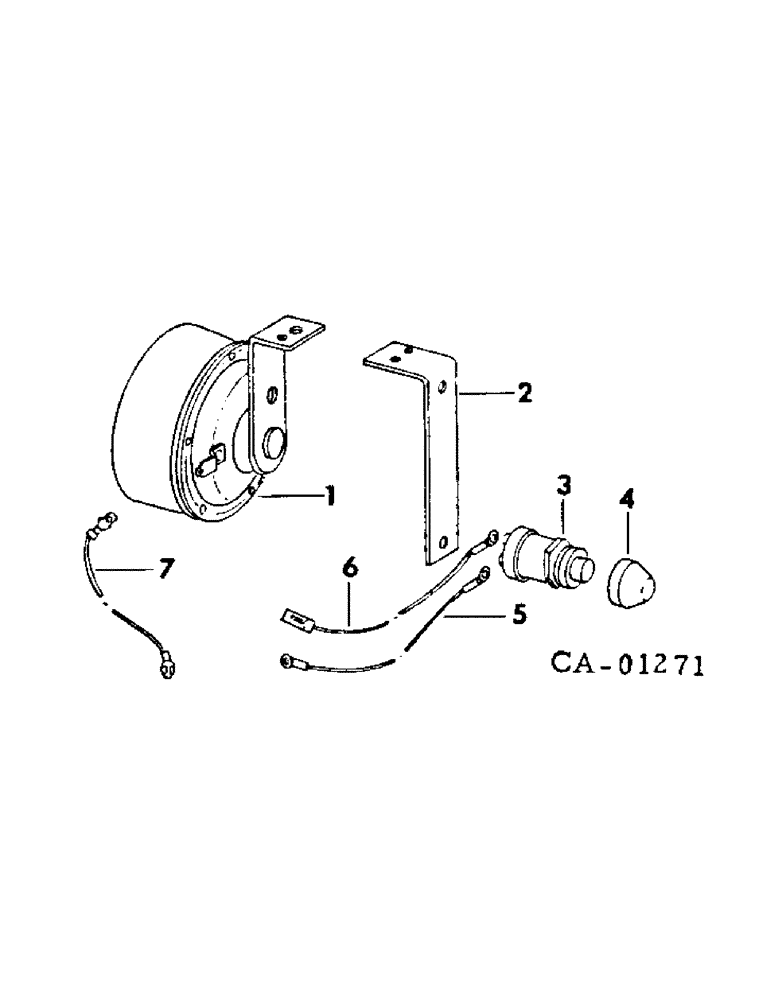

Схема запчастей Case IH 2500 - (08-34[1]) - ELECTRICAL, HORN (06) - ELECTRICAL
4
6
1
3
7
2
5

Артикул

Название

Примечание

Количество

1

9000239

HORN

ASSY, electric, 166166R91

1шт.

179814

SPACER

Horn Hex, 5/16"-18 x 5/8", G5

1шт.

9635082

NUT,5/16" - 18, Gr 5

Horn 5/16"-18, G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Horn 5/16"

1шт.

2

529601R1

BRACKET, horn mounting, horn

1шт.

109084

NUT,1/4"-20, G5

1/4"-28 hex. horn

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Horn 1/4"

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Gasoline engine tractors only, horn Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

3

393209R91

SWITCH

horn

1шт.

4

371487R1

CYLINDER END CAP

CAP, dust, horn

1шт.

5

404391R1

CABLE

ASSY, horn switch to junction block

1шт.

6

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

7

377422R91

CABLE ASSY, harness, Serial Range: junction-horn

1шт.

Выбрано товаров: 13
