(08-31) - ELECTRICAL, FLASHING WARNING LIGHT, 2500 SERIES A TRACTORS WITH 3141A BACKHOE

Запчасти Case IH 2500 (08-31) - ELECTRICAL, FLASHING WARNING LIGHT, 2500 SERIES A TRACTORS WITH 3141A BACKHOE (06) - ELECTRICAL

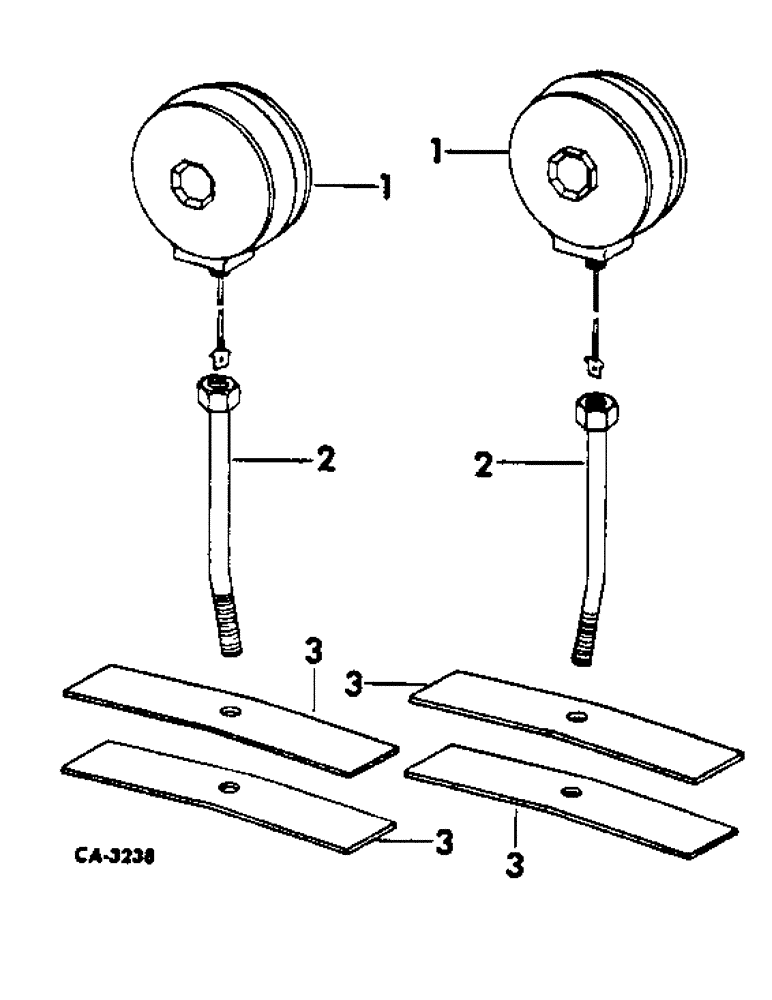

Схема запчастей Case IH 2500 - (08-31) - ELECTRICAL, FLASHING WARNING LIGHT, 2500 SERIES A TRACTORS WITH 3141A BACKHOE (06) - ELECTRICAL
3
1
3
3
2
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

67538C92

HEADLIGHT

LIGHT ASSY, flashing warning, only serviceable item is lamp 9417866

2шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 znd hex jam

2шт.

2

548395R1

ARM ASSY, flashing warning light mtg

1шт.

3

548397R1

STIFFENER, flashing warning light

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
