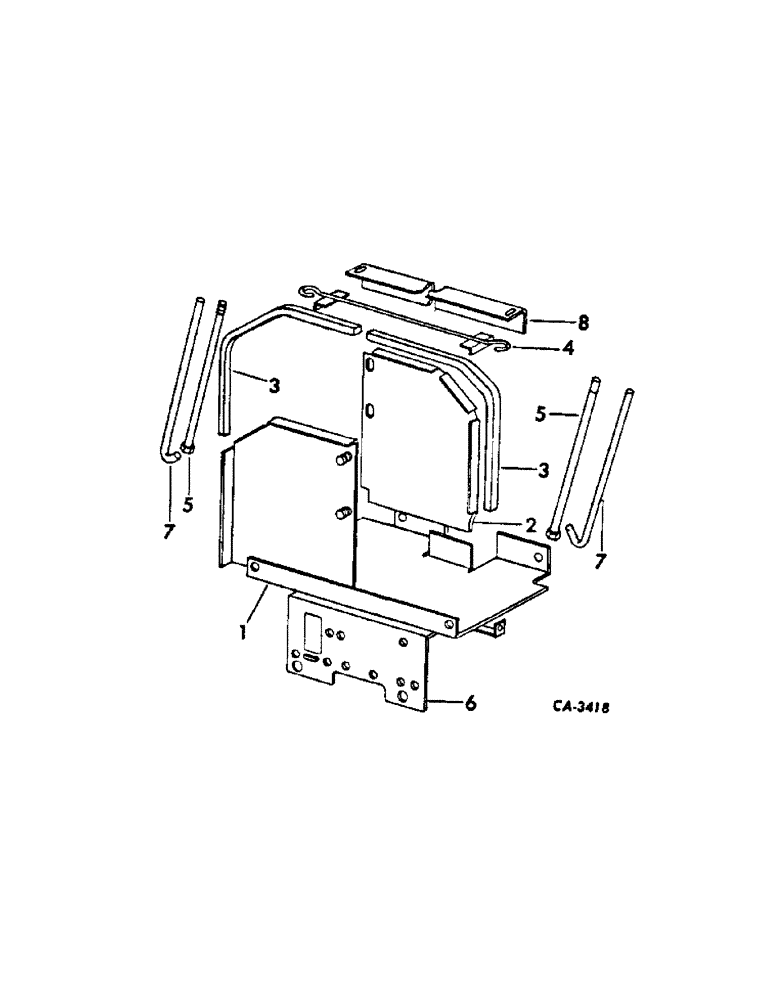

Запчасти Case IH 2500 (08-11) - ELECTRICAL, BATTERY TRAY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL

1

536334R2

TRAY ASSY, battery, replaces 536335R2

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z, used with tray 536335R2

2шт.

121637

LOCK WASHER

WASHER, 1/4 C-Z LT lock, used with tray 536335R2

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Used with tray 536335R2 1/4"-20, G5

2шт.

20893R1

WASHER

11/32 x 1 x .120

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

102376

NUT, 5/16-18 hex.

2шт.

2

527602R1

SHEILD, battery LH heat, used with tray 536335R2

1шт.

3

GASKET, battery heat shield, furnish 28 inches from 4 ft. length marked, 73217C1

2шт.

4

67845C1

SUPPORT

BRACKET ASSY, battery hold down, replaces 534358R1, hydrostatic drive tractors, 574 synchromesh transmission tractors with serial no. 4057 and below 2500 series A synchromesh transmission tractors with serial no. 1495 and below and tractors with heavy dut

1шт.

5

21080R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT, 5/16-18 x 9-1/2 sq-nk crg, hydrostatic drive tractors, 574 synchromesh transmission tractors with serial no. 4057 and below, 2500 series A synchromesh transmission tractors with serial no. 1495 and below and tractors with heavy duty batteries

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

1шт.

7500032

BUSHING

NUT, 5/16-18 C-Z wing

1шт.

6

527609R3

SUPPORT

1шт.

7

527605R3

ROD

battery hold down, 574 synchromesh transmission tractors with serial no. 4058 and above and 2500 series A synchromesh transmission tractors with serial no. 1496 and above

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

1шт.

7500032

BUSHING

NUT, 5/16-18 C-Z wing

1шт.

8

527604R1

ANGLE

BRACKET, battery hold, 574 synchromesh transmission tractors with serial no. 4058 and above and 2500 series A synchromesh transmission tractors with serial no. 1496 and above

1шт.
