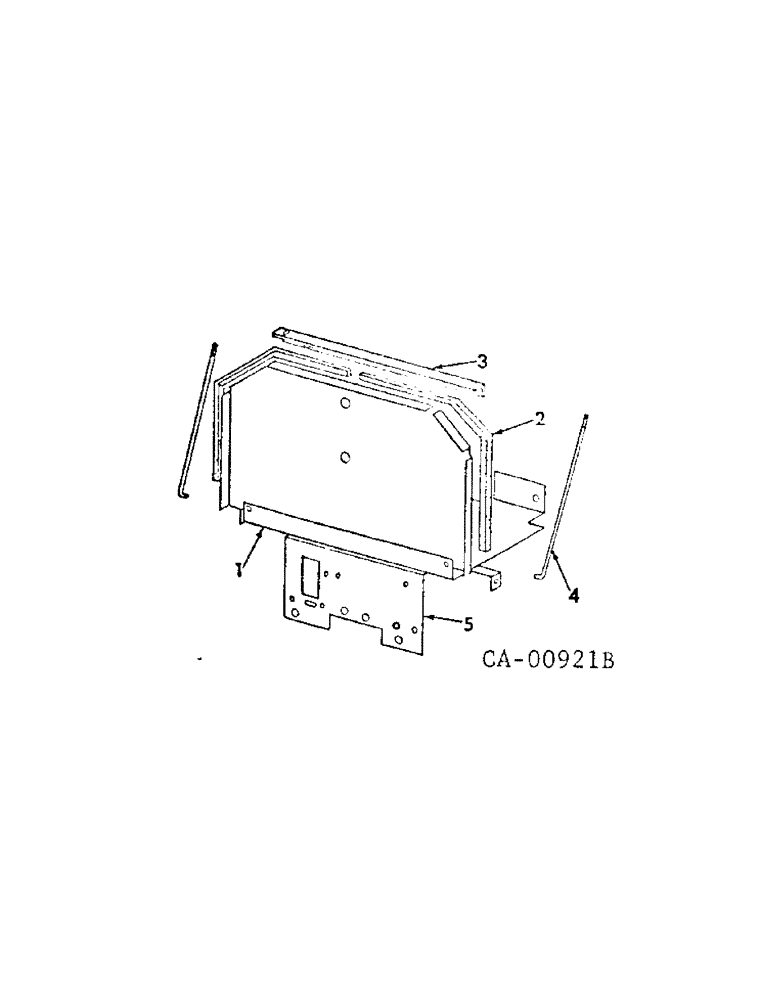

Запчасти Case IH 2500 (08-11[1]) - ELECTRICAL, BATTERY TRAY, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL

1

536334R2

TRAY ASSY, battery, gasoline engine tractor

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap, battery tray gasoline engine tractors

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Battery tray gasoline engine tractors 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

Battery tray gasoline engine tractors 3/8"-16, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Battery tray gasoline engine tractors 1/4"

1шт.

109084

NUT,1/4"-20, G5

Battery tray gasoline engine tractors 1/4"-20, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Battery tray gasoline engine tractors 3/8"

1шт.

102635

NUT,3/8"-16, G5

Batter tray gasoline engine tractors 3/8"-16, G5

1шт.

20893R1

WASHER

11/32 x 1 x .120, battery tray gasoline engine tractors

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Battery tray gasoline engine tractors 5/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 5/16-18 hex. battery tray gasoline engine tractors

2шт.

2

GASKET, battery heat shield, furnish 28 inches from 4 ft. length marked, 73217C1, tray gasoline engine tractors

2шт.

3

527603R1

BRACKET

battery hold down, tray gasoline engine tractors

1шт.

4

527605R3

ROD

battery hold down, tray gasoline engine tractors

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z, battery tray gasoline engine tractors

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing, battery tray gasoline engine tractors

2шт.

5

527609R3

SUPPORT, battery t ray gasoline engine tractors

1шт.
