Запчасти Case IH 2500 (08-10) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, DIESEL TRACTORS WITH SYNCHROMESH TRANSMISSION (06) - ELECTRICAL

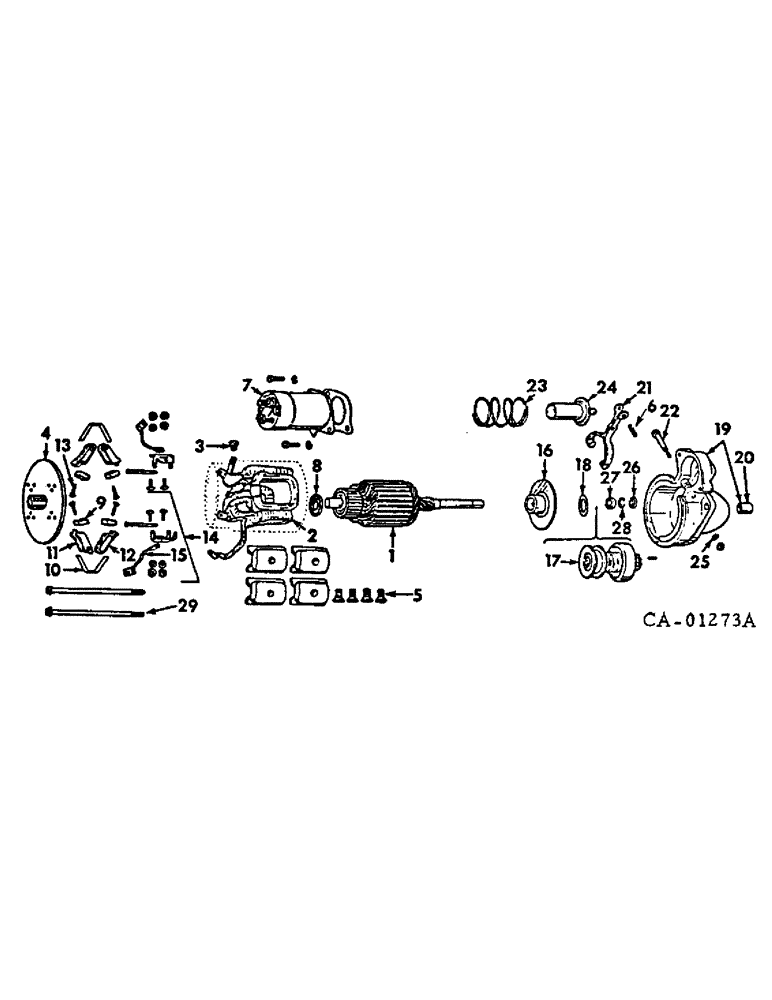

Схема запчастей Case IH 2500 - (08-10) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, DIESEL TRACTORS WITH SYNCHROMESH TRANSMISSION (06) - ELECTRICAL
2
28
14
17
25
5
24
12
1
21
6
19
16
7
26
18
8
10
22
9
4
27
29
3
23
11
20
13
15

Артикул

Название

Примечание

Количество

1107867

ELECTRIC MOTOR

MOTOR ASSY, cranking, 403300R92, replaces 1113203

1шт.

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104200A1C

CORE-STARTER

Return Number

1шт.

104209A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104209A1C

CORE-STARTER

Return Number

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

BOLT, 3/8 x 1-1/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

120381

WASHER

WASHER, 3/8 LT lock

1шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

1

1960866

ARMATURE

ARMATURE

1шт.

2

1960853

COIL

COIL ASSY, field, 4 coils

1шт.

3

1955946

GROMMET

GROMMET, in field frame

1шт.

4

1940385

FUNNEL

FRAME, commutator end

1шт.

5

9427815

SPARE PART SCREW, field, Serial Range: lead-switch

1шт.

6

1919851

WICK

WICK COMMUTATOR END

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

NUT, , Shift lever screw 5/16"-18, G5

1шт.

8

1914842

WASHER

WASHER, commutator end brake

1шт.

9

1946434

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

1926622

VALVE SPRING

SPRING, brush

4шт.

11

1940477

HOLDER

HOLDER, ground brush

2шт.

12

1926618

HOLDER

HOLDER, insulated brush

2шт.

13

1959514

SCREW

SCREW, brush ground attaching

2шт.

14

1928015

BRACKET

PACKAGE, brush holder support

2шт.

15

1960864

BRUSH, COMMUTATOR

BRUSH LEAD, brush ground

2шт.

16

820149

PLATE

PLATE, center bearing

1шт.

17

1938596

BUSHING

BUSHING, center bearing

1шт.

18

821453

WASHER

brake, between center brg & motor drive

1шт.

19

1965429

HOUSING

HOUSING, drive

1шт.

1916439

WICK

WICK, drive end

1шт.

20

1862383

BUSHING

BUSHING, drive end

1шт.

21

1951567

LEVER

LEVER, shift

1шт.

22

1932197

SCREW

SCREW, shift lever, use with 1108344

1шт.

23

1958679

SPRING

SPRING, plunger return

1шт.

24

1941113

PLUNGER

PLUNGER, solenoid switch

1шт.

25

1970988

WASHER

SPARE PART WASHER, shift lever stud sealing lock

2шт.

26

1952427

GASKET

GASKET, between switch and housing

1шт.

27

1928021

COLLAR

COLLAR, drive end pinion stop

1шт.

28

1928022

SNAP RING

RING, drive end pinion stop retainer

1шт.

29

1928023

WASHER

COLLAR, drive end thrust

1шт.

30

1971707

DRIVE

DRIVE, clutch motor

1шт.

31

65478C1

SWITCH

SWITCH, solenoid, optional with 1114356

1шт.

31

1114356

SOLENOID,Starter

SWITCH, solenoid, optional with 65478C1

1шт.

9427815

SPARE PART SCREW, field lead attaching to switch

1шт.

32

274875

SHAFT

SPARE PART SCREW, brush ground attaching

2шт.

33

1964954

SPARE PART CONNECTOR, switch

1шт.

34

1960908

BOLT (SPREADER)

BOLT, thru

2шт.

35

1913960

SCREW

SCREW, pole shoe

8шт.

36

132255

SPARE PART SCREW, switch mounting Slotted Fil Hd, 1/4"-20 x 1/2"

2шт.

37

1914580

SCREW

SCREW, center bearing attaching

2шт.

38

1962276

WASHER

WASHER, center bearing attaching lock

2шт.

39

455106

PIN

PIN, shift lever attaching

1шт.

Выбрано товаров: 53
