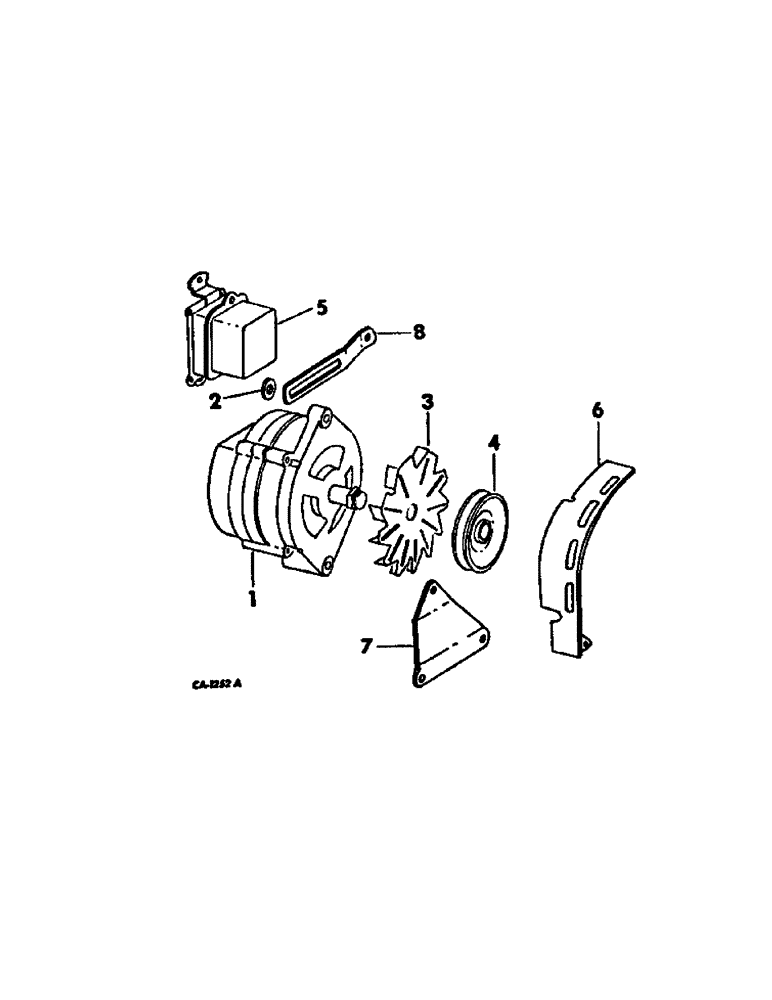

Запчасти Case IH 2500 (08-01) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL

1

1100805

GENERATOR

ALTERNATOR-GENERATOR, Delco Remy, 702337C91, 574 tractors serial no. 4240 and below and 2500 series A tractors w/serial no. 989 and below, for components, see list of parts under details of alternator generator

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 574 Tractor

1шт.

1

87297245

CORE-ALTERNATOR

Return Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

1

A46932

ALTERNATOR

ALTERNATOR - 12 Volt 61 ampere

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New PN A46932

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1

1100593

ALTERNATOR-GENERATOR, Delco Remy, 539323R91, furnish 1102920, 574 tractors w/serial no. 4241 to 115063 and 2500 series A tractors w/serial no. 990 and above, for components, see list of parts under details of alternator generator

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex, mach screw

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

280185R1

SPACER

SPACER, alternator-generator brace

1шт.

3

221425R1

FAN

FAN, alternator-generator

1шт.

4

1949358

PULLEY

PULLEY, alternator-generator, 606939C1

1шт.

5

1119513

VOLTAGE REGULATOR

REGULATOR, alternator-generator, 336410R91, 574 tractors with seriral number 4240 and below, 2500 series A tractors with serial number 989 and below

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW, 1/4-20 x 1/2 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

6

SHIELD ASSY, alternator fan & pulley, on orders for shield 529546R2 or 537721R3 furnish package 71196C91

1шт.

7

400338R1

SPARE PART BRACKET, alternator mounting

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

397969R1

SUPPORT

SPARE PART BRACE, alternator-generator adjusting

1шт.
