Запчасти Case IH 2500 (08-01[1]) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL

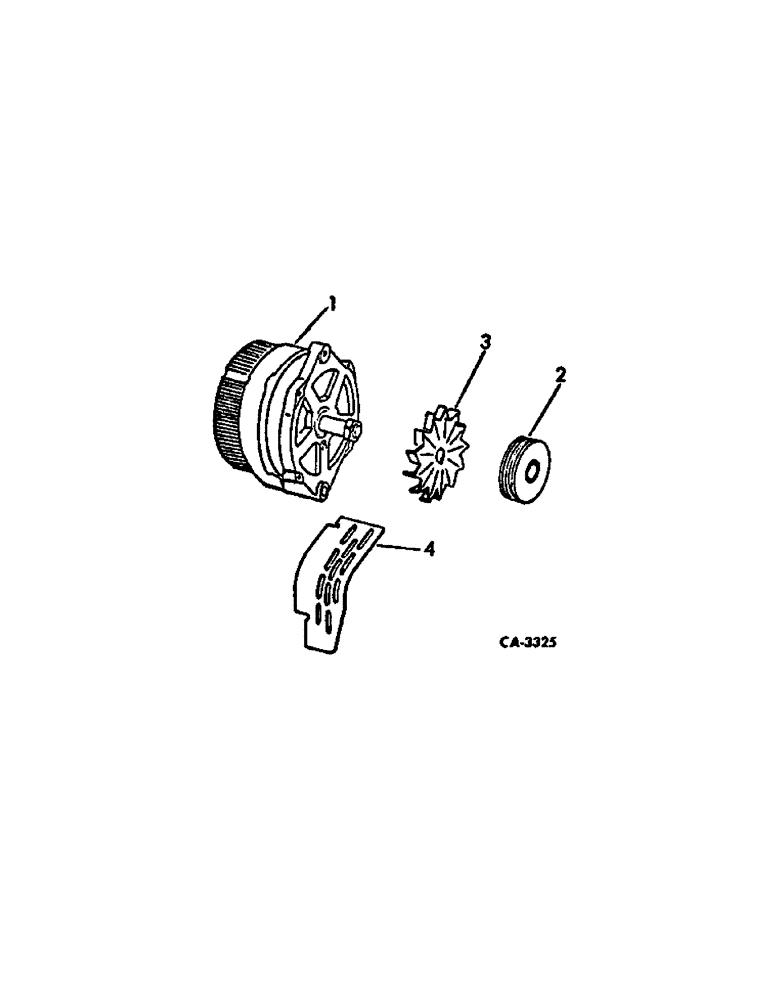

Схема запчастей Case IH 2500 - (08-01[1]) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL
4
3
1
2

Артикул

Название

Примечание

Количество

71196C92

PACKAGE

PACKAGE, alternator shield, consists of (1) shield (NSS), (1) screw 537326R1, (2) washer 557265R1, (1) nut 472146R1, (1) screw 186288, (1) nut 9413953, (1) instructions (NSS)

1шт.

1

1102920

GENERATOR

ALTERNATOR-GENERATOR WITH REGULATOR, 130967C91, 574 tractors with serial number 115064 and above, for components see list of parts under details of alternator-generator and connections gasoline engine tractors

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 574 Tractor

1шт.

1

87297245

CORE-ALTERNATOR

Return Number

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 Amp Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 63 Amp Alternator

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A46932

ALTERNATOR

ALTERNATOR - 12 Volt 61 ampere

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman for New PN A46932

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

NUT, no. 12 mach screw type 1, alternator-generator and connections gasoline engine tractors

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, , Alternators-generator and connections gasoline engine tractors #12

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

BOLT, 3/8 x 4-1/4 type 5, alternators-generator and connections gasoline engine tractors

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 PHC P/T lock type 5, alternator-generator and connections, gasoline engine tractors

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

BOLT, , Alternator-generator and connections, gasoline engine tractors Hex, 5/16"-18 x 1 5/8", G5

1шт.

557265R1

WASHER

WASHER, .344 x 1.000 x .105 pln, alternator-generator and connections, gasoline engine tractors

1шт.

2

1949358

PULLEY

PULLEY, alternator-generator and connections, gasoline engine tractors

1шт.

3

221425R1

FAN

FAN, alternator-generator and connections, gasoline engine tractors

1шт.

4

71196C92

PACKAGE

PACKAGE, alternator shield, consists of (1) shield (NSS), (1) instructions (NSS), generator and connections, gasoline engine tractors

1шт.

537326R1

BOLT

SCREW, alternator-generator and connections, gasoline tractors

1шт.

557265R1

WASHER

WASHER, alternator-generator and connections, gasoline engine tractors

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, alternator-generator and connections, gasoline engine tractors

1шт.

186228

SCREW, alternator-generator and conenctions, gasoline engine tractors

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, alternator-generator and connections, gasoline engine tractors

1шт.

Выбрано товаров: 36
