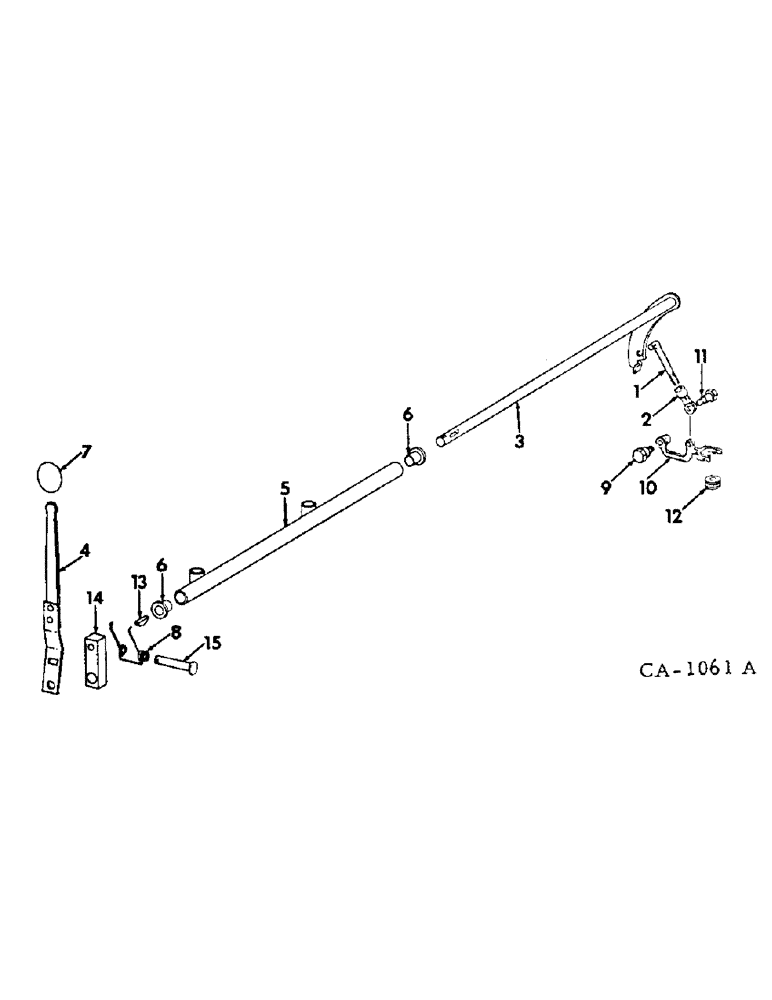

Запчасти Case IH 2500 (07-47) - DRIVE TRAIN, POWER TAKE-OFF LEVER AND CONNECTIONS (04) - Drive Train

1

535450R1

ROD ASSY.

ROD ASSY, IPTO control

1шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

535453R1

PIN

IPTO rod

1шт.

2

528837R1

CLEVIS,5/16" - 24

IPTO control

1шт.

3

401741R1

SHAFT ASSY.

SHAFT ASSY, IPTO control cross-over

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21903R1

WASHER

17/32 x 3/4 x .060 C-Z

1шт.

4

LEVER ASSY, hand, on orders for lever 536214R1, furnish lever 538720R1, pivot 538719R1, bolt 16888R1, nut 120376 and washer 120214

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

538720R1

LEVER ASSY.

LEVER ASSY, IPTO adjusting hand

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16-18 x 1-1/4 znd sq-nk crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

5

537184R91

SUPPORT ASSY.

SUPPORT W/TWO BUSHINGS, control shaft, on orders for support 530811R11 furnish support 537184R91 and two nuts 124829

1шт.

6

528839R1

BUSHING

control shaft support

2шт.

7

530090R1

KNOB

IPTO hand lever

1шт.

8

SPRING, hand lever, on order for spring 536215R2 used with lever 536214R1, furnish lever 538720R1, pivot 538719R1, bolt 16888R1, nut 120376 and washer 120214

1шт.

9

401754R1

BOLT,3/8" - 16 x 2.20"

control arm pivot shaft

1шт.

10

401749R2

LEVER ASSY.

BELLCRANK ASSY, control

1шт.

11

530809R1

BOLT,Shoulder, Hex, 1/4" - 28 x 1.06"

shoulder

1шт.

12

530813R2

GUIDE BUSHING

COLLAR, IPTO control

1шт.

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

13

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

14

538719R1

PIVOT

control handle, on order for pivot 532390R1, furnish pivot 538719R1, lever 538720R1, bolt 16888R1, nut, 120376 and washer 120214

1шт.

15

577140R1

LOCK PIN,3/8" x 1 7/8", Slotted

Pin, , rod end, used w/lever 536214R1, replaces pin 35229H and pin 107762 3/8" x 1 7/8", Slotted

1шт.
